PrismaSeT HD
PrismaSeT HD
Industry-leading modularity

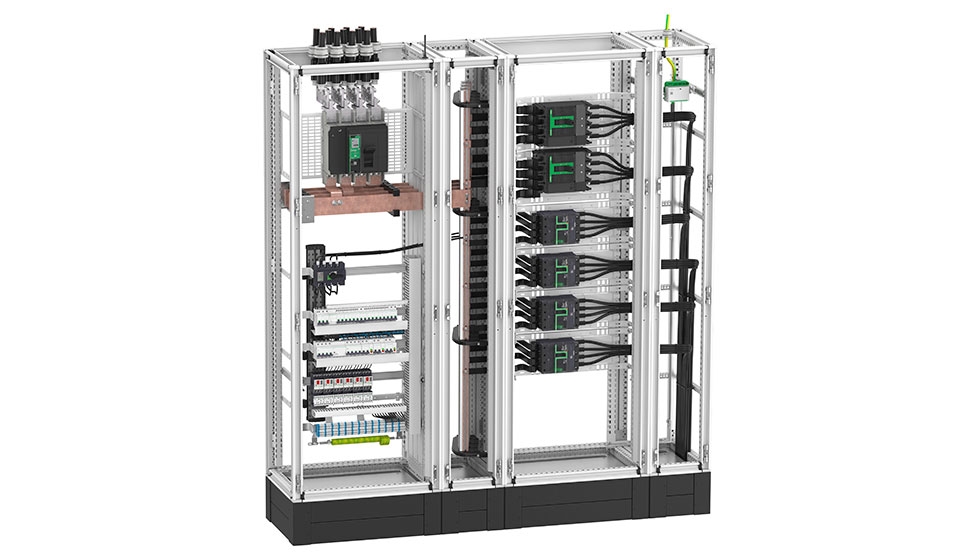

PrismaSeT HD is our new range of low-voltage switchboards. Its unrivaled modularity offers minimum assembly time, even for the most demanding configurations. The user-friendly and cost-effective designation with the Linergy busbar system gives you the ratings and capacity you need.
Innovation at every level of the switchboards
Innovation at every level of the switchboards
Benefits of PrismaSeT HD
Benefits of PrismaSeT HD
Modern
Elegantly simplistic and modern design ready to meet the harsh environment challenge. Designed for an optimal customer experience and reducing significantly the LV switchboard footprint in high intensity, thanks to the revolutionary busbar Linergy LGYE 6300.
Robust
Accelerates assembly in a stronger enclosure and maintains switchboard integrity throughout the transport. The enclosure has been designed to withstand extreme environments.
Tested
PrismaSeT HD switchboards comply with the requirements of IEC 61439-1 and 2 and guarantee the safety and reliability of the installation. You can also ensure a lasting investment through easy upgrading of your installation.
Features
Features
• Cubicles for electrical switchboards up to 4000 A, with a complete set of modular functional units• Degree of protection IP55. Shock withstand: IK10• Type tested compliance with IEC 61439-1 and -2• High-performance distribution with Linergy™ busbars and quick connectors
• Low-voltage switchboards• Operating voltage (Un): up to 690 V• Incoming current (In): up to 4000 A• Prospective short-circuit current (Isc): up to100 kA• Electrodynamic withstand (Icw): 100 kA rms / 1 sec.• Frames and panels: steel sheet with epoxy-polyester powder hot polymerized in textured color: RAL 9003 white or RAL 7035 grey• Plain or glass doors• Distribution: horizontal and vertical Linergy™ busbars, in a lateral compartment or at the rear of the cubicle• Tested up to 2.5g according to IEC 60068-3-3: the switchboard will keep on operating as intended, even during severe earthquake conditions (up to 7 on the Richter scale).
• Height: 2000 mm• Width: • functional units: 700 mm • cable and vertical busbar compartments: 300 mm• Depth: 3 options • 500 mm • 600 mm (RAL 7035 grey color only) • 800 mm
New innovations for PrismaSeT HD switchboards
New innovations for PrismaSeT HD switchboards
Early detection of cable overheating
PowerLogic HeatTag is a revolutionary fire prevention sensor designed for electrical switchboards. It helps detect cable overheating long before smoke appears. When an anomaly is detected, a notification is instantaneously sent to the facility manager on their smartphone.
New generation of ComPact breakers
Meet the new generation of ComPact circuit breakers. A semi-transparent faceplate improves confidence. Screwless auxiliaries reduce install times. Remote monitoring enables real-time notification.
Green Premium
This Green Premium offer will help you reduce your costs and your carbon footprint with more sustainable packaging made entirely of cardboard and without the use of plastic. Also, scan the QR code to access all instructions sheets.
Electrical fire prevention
Electrical fire protection begins with prevention. Enhance fire protection with IEC 61439-1 and 2 type-tested functional units. Take fire prevention to the next level with the new PowerLogic HeatTag sensor.
