Issue
Need to know how to move an existing system to another location in S1 Studio
Product Line
Micom S1Studio
Environment
Microsoft Windows
Cause
Need to move an existing system in S1 Studio to another drive location or computer
Resolution

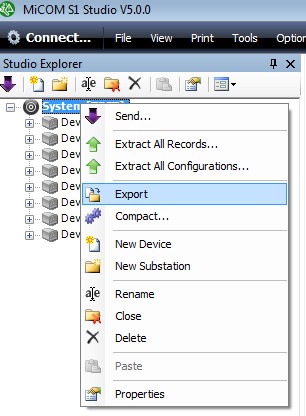

Open an existing system in S1Studio, right click on the system and select export as shown on the screen shot below

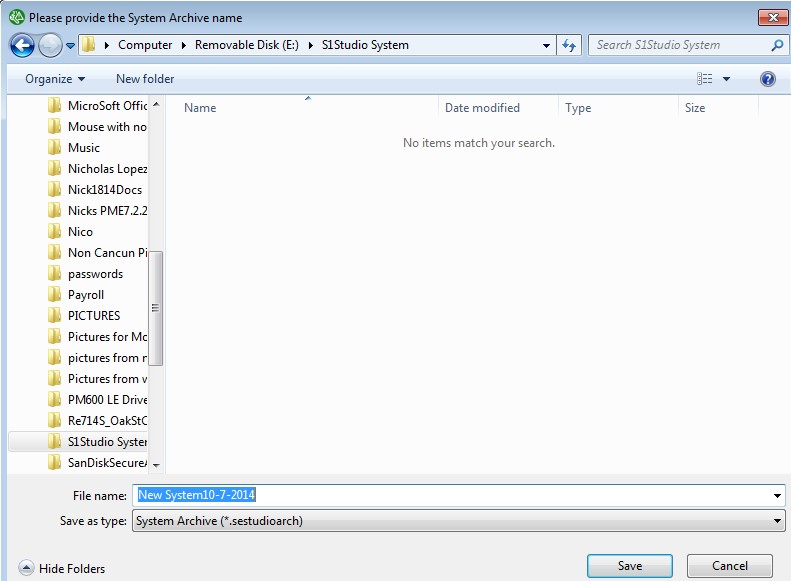

Save the new system to the new location as shown below

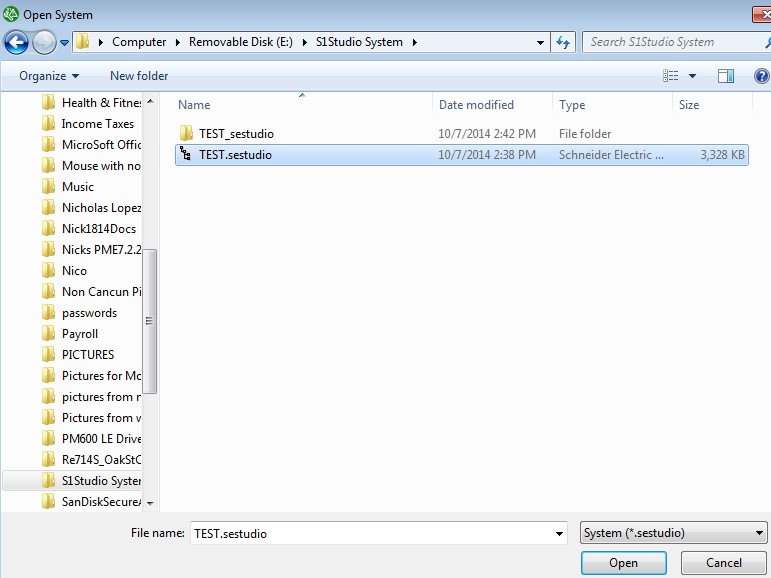

Extract the Archived saved file from the location it was saved then open S1 Studio. Select Open System browse to the location where the archive file was extracted and select the system as shown below. Click Open
Need to know how to move an existing system to another location in S1 Studio
Product Line
Micom S1Studio
Environment
Microsoft Windows
Cause
Need to move an existing system in S1 Studio to another drive location or computer
Resolution
Open an existing system in S1Studio, right click on the system and select export as shown on the screen shot below
Save the new system to the new location as shown below
Extract the Archived saved file from the location it was saved then open S1 Studio. Select Open System browse to the location where the archive file was extracted and select the system as shown below. Click Open
