Issue:
Remove the front main cover on the ATV61/71 drives.
Product Line:
Altivar ATV61 ATV71
Environment:
All
Cause:
Needs to know how to remove the front cover to replace it or to add an option card.
Resolution:

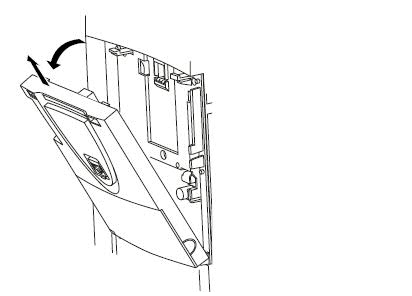

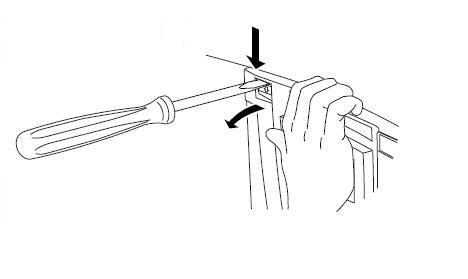

Push in the two front tabs at the top of the drive while pulling the top cover toward you.
Tools needed: Flathead screwdriver.
Remove the front main cover on the ATV61/71 drives.
Product Line:
Altivar ATV61 ATV71
Environment:
All
Cause:
Needs to know how to remove the front cover to replace it or to add an option card.
Resolution:
Push in the two front tabs at the top of the drive while pulling the top cover toward you.
Tools needed: Flathead screwdriver.
