PowerLogic™ P7 Protection and Control Platform

Discover PowerLogic P7

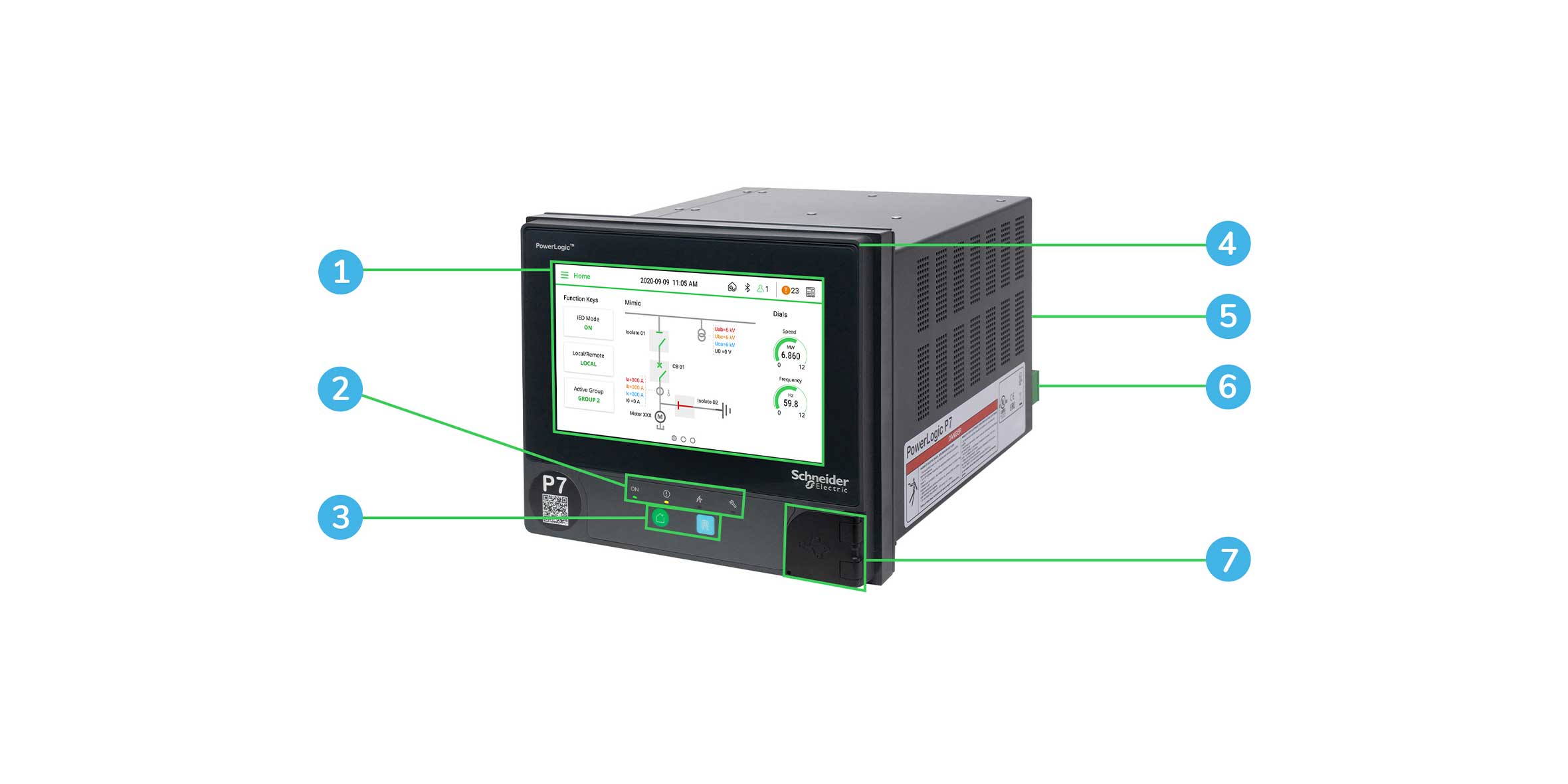

With unparalleled flexibility and digital performance, the PowerLogic P7 is powered with best-in-class features, including a 7" colored touchscreen and withdrawable hardware.Simple to configure, test, integrate, operate, and maintain, it helps secure your system, improve network reliability, and provide predictive asset monitoring. Built for the most demanding applications - including oil and gas, data centers, and other electro-intensive industries.

Benefits of PowerLogic P7

Flexibility

Adapt to customer needs through the device life cycle with a highly flexible, modular hardware and easy-to-expand application-oriented firmware.
Intuitive operations

Remove complexity from daily operational tasks thanks to intuitive menu navigation and customizable mimic pages on the large 7” color touch screen HMI.
Easy maintenance

Maximize asset life with preventative maintenance by enabling condition-based monitoring and plug-and-play hardware modules.
Power availability

Ensure business continuity by digitizing primary data and avoiding costly downtime with best-in-class, scalable protection and control applications.

Features

Stand-alone merging unit

Flexible and interoperable interface between primary and secondary technology of a substation. Compliant with IEC 61869-9 and -13 and with IEC 61850-9-2 LE standards.

Integrated process bus

Adapts to user needs when substation installation evolves over time by providing process bus technology with best-in-class protection and control features.

Cybersecurity

Reducing exposure to cyber threats and improving operational security are key requirements for the future of power grids. The PowerLogic P7 is designed to support this with a native but tailorable cybersecurity package that is 3rd party certification IEC 62443 SL2 compliance by default.

Modular design

Installations evolve over time. Additional hardware like I/O cards, communication modules, and accessories like RTD inputs or analog I/O can be added at any time. In addition, the flexible application concept allows you to customize the PowerLogic P7 to your needs at any time of the product life cycle.

Improved recovery time

When maintenance or testing is required, the intuitive 7” colored touch screen HMI with clear and easily accessible device status information, plug-and-play boards, clear and simple slot numbering, and removable wiring interfaces significantly decreases outage time.

Greater connectivity

Communication is key! Multiple communication protocols – including IEC 61850 Edition 2.1, Modbus (serial/TCP), and DNP3 (serial/TCP) – with a capability to support up to three Ethernet protocols simultaneously, providing connectivity together with PRP/HSR and RSTP redundancy protocols. Optional Ethernet communication modules (small form-factor pluggable modules) can also be added at any time of the product life cycle to adapt your device in line with future network evolutions.

Strong and sustainable

The robust case design, which offers a versatile operation range for harsh environments from -40 to 70°C (-40 to 158°F), the IK7 impact-strength front panel design of the 7” colored touch screen HMI, and the flexible firmware concept ensure increased sustainability over the complete life cycle of the product.
