There are three way to selection of contactor:

1. Types of applications, there are many application characteristics (utilization categories): such as AC-1, AC-3, AC-4 and other categories.
https://en.wikipedia.org/wiki/Utilization_categories

2. The size of the rating specification: load power, operational voltage and coil voltage.

3. number of poles (normally open and normally closed contact) and also auxiliary contact.

"}],"getPv":[{"Title":"Video: How to perform a cold start and brain dead on Smart-UPS","UrlName":"FA156611","LastModifiedDate":"22/04/2026","products":"APC Smart-UPS, APC Smart-UPS On-Line","score":1.002431775195893,"firstpublisheddate":"10/08/2012","answer":"Issue:
This document explains how to perform the Cold Start and Brain Dead procedures.

Product Line:
Smart-UPS

Environment:
All models, all serial numbers

Cause:
The Cold start procedure is used to determine if a UPS is functional if it will not turn on when plugged into utility power.
The Brain Dead procedure performs a hard reset of the Smart-Ups microprocessor. It does not however reset saved preferences.

Resolution:

Cold Start:
This is a great way to establish if a UPS will not turn on due to bad input power. Never use a Cold Start to troubleshoot a bad battery LED as it will clear the light most every time even if the battery is actually bad. This is because the self-test is comparing the battery health compared to the load attached. If there is no load attached, the battery will appear healthy.

1) Turn off and unplug the Smart-UPS from wall. Remove any attached load.
2) Press and hold the power button (labeled ""I/TEST"" on legacy non-LCD screen units) on the front of the UPS until you hear a LONG beep.
3) Let go DURING the long beep. If you let go after the beep ends you will need to try again.
4) UPS should go through its' normal self test and end up on battery with 4 beeps every 30 seconds. This shows that the UPS is functioning correctly and can both pass a self test and function on battery.
5) You can now plug your UPS back into the wall. If the input power is acceptable the UPS will transfer back online.

If your UPS will not cold start, it either means that the UPS has suffered an internal hardware failure or that it does not have a functional internal battery.
Please contact APC Technical support for further assistance.

The following video demonstrates how to perform a Cold Start on a SUA series Smart-UPS:




Brain Dead:
If you have an SUA or SUM unit, you can use this procedure to switch between Serial and USB communications. It forces a "reboot" of the internal microprocessor, but it will not erase any stored settings.
Useful for basic troubleshooting as it resets the logic of the UPS.

For SU, SUA, SUM, or SURT Units:
1) Turn off and unplug UPS from wall
2) Press and hold the OFF button again (Alternately, you could disconnect the internal battery)
3) You may see a quick flash of the LED's and you should hear an audible ""click"" from the UPS.
4) Plug UPS back into the wall and turn UPS back on

For SMC, SCL, SMT, SMTL, SMX, and SRT Units:
1) Turn off and unplug UPS from wall
2) Disconnect Battery
3) You may hear an audible ""click"" from the UPS.
4) Reconnect battery, plug unit back in the wall, and turn UPS back on

The following video demonstrates how to perform a Brain Dead Reset on a SMT, SMTL & SMX series Smart-UPS:



The following video demonstrates how to perform a Brain Dead Reset on a SUA series Smart-UPS:



The following video demonstrates how to perform a Brain Dead Reset on a SRT series On-Line Smart-UPS:

"},{"Title":"Video: How to set PROFINET communication between Altivar and Siemens PLC's ?","UrlName":"FAQ000224708","LastModifiedDate":"19/05/2026","products":"Altivar Process ATV900, Altivar 340, Altivar 320","score":1.0021615779519049,"firstpublisheddate":"12/10/2022","answer":""},{"Title":"Video: What are the different sensitivity settings of a Smart-UPS?","UrlName":"FA156514","LastModifiedDate":"06/03/2026","products":"APC Smart-UPS","score":0.9521513542724026,"firstpublisheddate":"10/08/2012","answer":"

Issue:
What are the different sensitivity settings of a Smart-UPS?

Product Line:
Smart-UPS

Environment:
All models except SURT, SURTA, SURTD, SRT, SRTL, SRYL, All Serial Numbers

Cause:
Normal Operation

Resolution:

The Smart-UPS detects line voltage distortions such as spikes, notches, dips, and swells, as well as distortions caused by operation with inexpensive fuel-powered generators. By default, the UPS reacts to distortions by transferring to on-battery operation to protect the equipment that you are plugging into the UPS. Where power quality is poor, the UPS may frequently transfer to on-battery operation. Battery longevity and service life of the UPS may be conserved by reducing the sensitivity of the UPS, as long as your equipment can operate normally under the conditions detailed below. The sensitivity circuit monitors Total Harmonic Distortion(THD), Change in Voltage over Time(dv/dt), and Frequency (Hz) out of tolerance.


NOTE:

\n

The sensitivity circuit looks at these three parameters (THD, dv/dt, Hz) and makes a quantitative analysis based on all three things using a proprietary algorithm.

\n

There are not pre-defined limits for each parameter. (IE: There is no way to say "At medium sensitivity, the UPS will transfer at X percent THD.")

Smart-UPS products default to "High" sensitivity. Lowering the sensitivity may allow your UPS to operate online during a wider array of input conditions, however it also increases the transfer time of the UPS. "Transfer Time" is the length of time a Line-Interactive UPS takes to switch from online to on-battery operation. The level of power disturbance can affect transfer time when the unit is set to Medium or Low. Some sensitive loads may not be compatible with the extended transfer times experienced at lower sensitivity settings. If you experience a load drop during online to on battery transfer when the UPS is set to medium or low sensitivity you may need to increase the sensitivity setting to high. Extremely sensitive loads may perform better with an online UPS such as a Smart-UPS RT which has no transfer time.

High Sensitivity Mode
In the event of any type of voltage disturbance, the UPS will transfer to battery power and watch the AC line until it can transfer back to line. The transfer time in this mode depends on how far the line voltage deviates from the sine wave reference. It is generally 2-4 milliseconds.

Medium Sensitivity Mode
In the event of a RMS voltage-out-of-tolerance(High/Low/No) and RMS-rate-of-change disturbances(dv/dt) in the line voltage, the UPS will transfer to battery power and watch the AC line until it can transfer back to line. In this mode the transfer times are longer but still within acceptable limits to insure the continuity of a computer's operation. They are generally 6-8 milliseconds.

Low Sensitivity Mode
In the event of a RMS voltage-out-of-tolerance disturbances(High/Low/No) in the line voltage, the UPS will transfer to battery power and watch the AC line until it can transfer back to line. In this mode the transfer times are longer but still within acceptable limits to insure the continuity of a computer's operation. They are generally 8-10 milliseconds.


"SU" Smart UPS 700va or larger and "SUA" Smart-UPS 1000va or larger have a sensitivity button on the rear panel of the UPS. To change the sensitivity of the UPS, press the small, white "sensitivity" button* on the rear of the UPS. Use a pointed object (such as a pen) to do so. The default setting is "high"; press the button once to set the sensitivity to "medium", and press it again to set it to "low"; pressing it a third time will set it back to "high". The sensitivity setting change will take effect immediately. The green LED next to the button is a sensitivity setting indicator - brightly lit is "high" sensitivity, dimly lit is "medium", and off is "low" sensitivity.

Next Generation Smart-UPS (Part Numbers beginning with "SMT" or "SMX") feature a fully interactive LCD display. By default these units feature a "Local Power Quality" setting, which is a combination of Sensitivity and Transfer Voltages. To configure sensitivity separately, you must enable "Advanced Menus". This is enabled via the "Configuration" menu on the LCD screen. Once "Advanced Menus" are enabled, you will see several new options under the "Configuration" menu, including "Sensitivity". From there, you can select "Normal" (High), "Reduced" (Medium), or "Low".

Notes:

\n

• In any sensitivity mode, a Smart-UPS will transfer to battery when the Frequency(Hz) is out of tolerance(+/-5%).
• If your model Smart-UPS has neither a sensitivity button or LCD screen, you may still adjust sensitivity via the PowerChute application.
• Some equipment may be more sensitive to line disturbances. The lower your sensitivity setting, the longer the transfer time. To find out how you equipment may react, please see your equipment manufacturer.

\n

The following video demonstrates how to change the sensitivity settings on the Smart-UPS SMX & SMT models via the display:

"},{"Title":"Video: How do I properly reset a Symmetra XR Frame Communications Card (SYXRCC or SYAFSU16)?","UrlName":"FA157406","LastModifiedDate":"17/06/2026","products":"Symmetra","score":0.9437068605536587,"firstpublisheddate":"20/08/2012","answer":"Issue

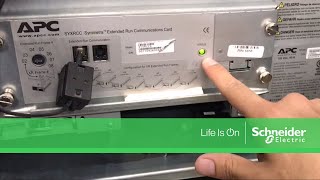

SYXRCC or SYAFSU16 must be reseated in order to reset communication for routine troubleshooting; what is the proper procedure?

Product Line
Symmetra Power Array
Symmetra RM
Symmetra LX

Environment
All models

Cause
The XR frame shows a fault or the user is troubleshooting an issue which may be related to the XR frame.

Resolution
Please follow the below steps in resetting the communication card on the Symmetra Extended Run Frame. This can be done while the system is live.

1) Disconnect the communication cable(s) in the card  located in the back of the Symmetra Extended Run Battery Frame and wait for the green status light to go off.

2) Turn off the communications card by unscrewing the thumbscrews on the card so that the micro-latch that is being held by one of the thumbscrews is unseated.

3) Reseat the micro-latch on the card and screw in the thumbscrew back into the top right-hand corner of the card.

4) Reconnect the communication cable(s) in the back of the card and acknowledge the return of the green status light within 60 seconds the UPS will re recognize the additional batteries and adjust the runtime value accordingly to include the batteries located in the Extended Run Frame.

The following video demonstrates the procedure of reseating and installing the Symmetra XR Communications Card:

 "},{"Title":"Video: SRT UPS reports Battery Charger Event, Event Code 142","UrlName":"FA338784","LastModifiedDate":"31/07/2025","products":"APC Smart-UPS On-Line","score":0.9346769620696348,"firstpublisheddate":"02/02/2018","answer":"Issue:
The UPS reports: Battery Charger Event – event code 142 on the UPS LCD display or in the NMC event logs



Product Line:
Smart-UPS SRT UPS Models excluding Smart-UPS Ultra models: SRTL2K and SRTL3K and SRTL5K

Cause:
This event may be caused by a blown charger fuse, or bad batteries.

Resolution:
To determine the cause of this behavior, perform the following troubleshooting steps:\n

• With the UPS input connected to AC mains, disconnect all the batteries in the system: all internal batteries and any external batteries, if used. Refer to the user manual of the appropriate SRT UPS model to disconnect the batteries.
• Using the UPS LCD display, navigate to the Status section, and in the Battery menu, select Voltage. Refer to the user manual of the appropriate SRT UPS model to navigate the UPS LCD menu.

\nNote: You do not need to perform measurements on the UPS charger or battery terminals.\n\n

• If the voltage displayed on the UPS LCD display is below the “Voltage level” (refer to the below values), the charger fuse is blown and the UPS requires replacement.
• If the voltage displayed on the UPS LCD display is at, or above, the “Voltage level, the batteries need to be replaced.

\nOnce the alarms are cleared, it is recommended to update the UPS firmware to the latest version. Refer to FA164737 for updating the UPS firmware.
 \n

Models	Voltage level
SRT Li-Ion 1-1.5kVA \t\t\tSRTL1000RMXLI(-NC) or SRTL1500RMXLI(-NC)	If under 48V, the UPS should be replaced. If at or above 48V, the battery should be replaced.
SRT Li-Ion 2.2-3kVA \t\t\tSRTL2200RMXLI(-NC) or SRTL3000RMXLI(-NC)	If under 48V, the UPS should be replaced. If at or above 48V, the battery should be replaced.
SRT 2.2kVA models	If under 80V, the UPS should be replaced; If at or above 80V, the battery should be replaced. \t\t\t
SRT 3kVA models	If under 100V, the UPS should be replaced; If at or above 100V, the battery should be replaced. \t\t\t
SRT 5-6kVA models	If under 200V, the UPS should be replaced; If at or above 200V, the battery should be replaced. \t\t\t
SRT 8-10kVA models	If under 200V, the UPS should be replaced; If at or above 200V, the battery should be replaced. \t\t\t

\n\n\n"},{"Title":"Network Management Card (NMC) Password Reset Procedure","UrlName":"FA156075","LastModifiedDate":"22/04/2026","products":"Network Management Cards","score":0.8590342378507739,"firstpublisheddate":"10/08/2012","answer":"Issue
Forgotten or lost Network Management Card (NMC) password. This article applies to Network Management Card 1, 2 and 3, as well as any devices that contain an embedded version of these cards such as a Rack Power Distribution Unit (PDU) or Rack Automatic Transfer Switch (ATS).

Product Line\n

• Web/SNMP Card - AP9606

\nDevices with an embedded Web/SNMP Card include (but are not limited to): Environmental Monitoring Unit 1 (AP9312TH)\n\n

• Network Management Card 1 - AP9617, AP9618, AP9619

\nDevices with an embedded Network Management Card 1 include (but are not limited to): Metered/Switched Rack PDUs (AP78XX, AP79XX), Rack Automatic Transfer Switches (AP77XX, Environmental Monitoring Units (AP9320, AP9340, NetBotz 200)\n\n

• Network Management Card 2 - AP9630/AP9630CH, AP9631/AP9631CH, AP9635/35CH

\nDevices with an embedded Network Management Card 2 include (but are not limited to): 2G Metered/Switched Rack PDUs (AP84XX, AP86XX, AP88XX, AP89XX), Rack Automatic Transfer Switches (AP44XX), Certain Audio/Video Network Management Enabled products, Smart-UPS Online (SRT).\n\n

• Network Management Card 3 – AP9640, AP9641, AP9643

\n \n\n

• Network Management Card for Easy UPS - AP9544

\n
​
Environment\n\n

• All firmware versions (unless otherwise noted)
• All serial numbers
  \t

\nCause
The Network Management Card's administrator username and/or password has been forgotten or lost and requires a special reset procedure in order to regain access.


Resolution

These steps will require local access to NMC1 and NMC2 device(s) and require you to directly connect to it with the APC serial configuration cable. Browse the steps below for your device model in order to reset the Administrator's password.

NOTE: Connecting a non-APC serial cable during the procedures below can cause unwanted erratic device behavior.

Web/SNMP Card & Network Management Card 1 Procedure

In addition, if you are trying to reset a password on a UPS that has more than one SmartSlot accessory installed in it (i.e. AP9607 Interface Expander), it may be required to temporarily remove the other SmartSlot accessories to gain direct serial access to the NMC console interface. Please reference that accessory's User Guide on how to do that. It is also important to make sure that the accessories are installed in the correct order, referencing this document.

1.) Select a serial port at the local computer, and disable any service that uses that port.

2.) Refer to the chart below and obtain the correct communication cable for the Network Management Card 1-enabled device:
 \n

Device	Configuration Cable Part Number
Most UPS devices with a DB-9 style serial port	940-0024 or 940-1524 (DB-9 to DB-9)
Rack PDU (AP84XX*, AP86XX*, AP88XX*, AP89XX*, AP78XX, AP79XX)	940-0144 (RJ-12 to DB-9)
1st Generation Rack Automatic Transfer Switch (AP7750, AP7701, AP7722)	940-1000 (DB-9 to DB-9)
2nd Generation Rack Automatic Transfer Switch (AP77XX, excluding 1st Generation SKUs)	940-0144 (RJ-12 to DB-9)
4th Generation Rack Automatic Transfer Switch (AP44XX)	940-0144 (RJ-12 to DB-9)
NetBotz 200/Environmental Monitoring (AP9319, AP9340, AP9320)	940-0103 (DB-9 to DB-9)
Rack Air Removal Unit (ACF400, ACF402)	940-0103 (DB-9 to DB-9)

\n* Indicates the device uses NMC2 password reset procedure.

3.) Connect the serial cable to the selected port on the computer and to the configuration port at the UPS/Network Management Card Embedded device.


4.) Run a terminal program (such as HyperTerminal®) and configure the selected port as follows, depending on your device model type (refer to the user's manual if the device is not listed below):

 \n

Device	COM Port Settings
Most UPS devices with a DB-9 style serial port	2400 bps, 8 data bits, no parity, 1 stop bit, and no flow control
Rack PDU 1G and 2G**	9600 bps, 8 data bits, no parity, 1 stop bit, and no flow control
1st Generation Rack Automatic Transfer Switch (AP7750)	19,200 bps, 8 data bits, no parity, 1 stop bit, and no flow control for initial configuration, 2400 bps for NMC configuration - refer to user's manual for more information
2nd Generation Rack Automatic Transfer Switch (AP77XX, except AP7750)	9600 bps, 8 data bits, no parity, 1 stop bit, and no flow control
4th Generation Rack Automatic Transfer Switch (AP44XX)	9600 bps, 8 data bits, no parity, 1 stop bit, and no flow control
NetBotz 200/Environmental Monitoring (AP9319, AP9340, AP9320)	9600 bps, 8 data bits, no parity, 1 stop bit, and no flow control
Rack Air Removal Unit (ACF400, ACF402)	9600 bps, 8 data bits, no parity, 1 stop bit, and no flow control

\n
**Indicates the device uses NMC2 password reset procedure.

NOTE: For three phase UPS devices, it will be necessary to remove the communication cable from the port labeled "Display" that connects to the PowerView display prior to completing this reset procedure.

5.) Press ENTER, repeatedly if necessary, to display the User Name prompt. If you are unable to display the User Name prompt, verify the following:\n\n

• The serial port is not in use by another application.
• SCROLL LOCK is off/disabled.
• The terminal settings are correct as specified in step 3.
• The correct cable is being used as specified in step 2.

\n
6.) Press the Reset button once. The Status LED will flash rapidly (almost immediately) while alternating between orange and green. NOTE: If you are using an AP9606, proceed to step 7. Press the Reset button again a second time immediately while the LED is rapidly flashing - which will cause the LED to then go off - in order to reset the User Name and Password to their defaults temporarily (the default User Name and password are both apc).

7.) Press ENTER as many times as necessary to redisplay the User Name prompt, then use the default, apc, for the user name and password. (If you take longer than 30 seconds to log on after the User Name prompt is redisplayed, you must repeat step 5 and log on again.)

8.) From the Control Console menu, select System, then User Manager.

9.) Select Administrator, and change the User Name and Password settings, both of which are now apc.

10.) Press CTRL+C, log off, reconnect any serial cable you disconnected, and restart any service you disabled.

NOTE: For Network Management Cards running lower than version 2.5 firmware (or models AP9606), step 6 (the second reset press) will not be necessary.

Network Management Card 2 Procedure

NOTE: On v6.X.X firmware, the Super User or Administrator level accounts can reset other Administrator, Device, Read Only, and Network Only user passwords. This procedure may not be required if the Super User password or at least one set of Administrator credentials are known.

You can use a local computer that connects to the Network Management Card through the serial port to access the command line interface. This port is labeled "Console" and is on the Network Management Card itself. You'll also need to press the pinhole reset button - access is located on the front of the Network Management Card to the right of the Ethernet jack.

1.) Select a serial port at the local computer, and disable any service that uses that port.

2.) Connect the provided serial cable (APC part number 940-0299) to the selected port on the computer and to the configuration port at the Network Management Card.

3.) Run a terminal program (such as HyperTerminal®) and configure the selected port for 9600 bps, 8 data bits, no parity, 1 stop bit, and no flow control.

4.) Press ENTER, repeatedly if necessary, to display the User Name prompt. If you are unable to display the User Name prompt, verify the following:\n\n

• The serial port is not in use by another application.
• SCROLL LOCK is off/disabled.
• The terminal settings are correct as specified in step 3.
• The correct cable is being used as specified in step 2.

\n
5.) Press the Reset button once (please note, sometimes aligning a paper clip or similar to the pinhole reset button can be difficult. It is suggested to hold the paper clip or similar device towards the top of the reset button hole and press gently until the alignment is made). Wait 5-7 seconds (the Status LED will be off while you wait) and then after that period of time, the Status LED will flash rapidly while alternating between orange and green. Press the Reset button a second time immediately while the LED is rapidly flashing - which will cause the LED to then go off - in order to reset the User Name and Password to their defaults temporarily (the default User Name and password are both apc).

6.) Press ENTER, repeatedly if necessary, to display the User Name prompt again, then use the default, apc, for the User Name and password. (If you take longer than 30 seconds to log on after the User Name prompt is redisplayed, you must repeat step 5 and log on again.)

7a.) For v5.X.X firmware only: At the Command Line Interface, use the following commands to change the User Name and Password settings, both of which are now temporarily apc:

user -an yourAdministratorName
user -ap yourAdministratorPassword

For example, to change the Administrator user name to Admin, type:

user -an Admin

7b.) For v6.X.X firmware only: At the Command Line Interface, use the following commands to change the Password setting for the Super User account, for which the username is always apc, and the password is now temporarily apc:

user -n apc -pw yourNewSuperUserPassword

For example, to change the Super User's password to p@ssword, type:

user -n apc -pw p@ssword

Secondly, the Super User account can be disabled for security reasons. In addition to possibly needing to reset its password, you may need to re-enable the account if no other administrative access is available or known. To do that, type:

user -n apc -e enable

Because the Super User can also reset the password for any account, you can reset other user's passwords as well. For example, to change the password for user upsadmin too, type:

user -n upsadmin -pw p@ssword

NOTE: Per the v6.X.X's firmware User Guide, please note that changing user name information is no longer supported via the Command Line Interface. If a user's user name needs to be changed, it must be deleted and re-created. The Super User will also have access now to log in and adjust any other user's password.

8.) Type quit or exit to log off, reconnect any serial cable you disconnected, and restart any service you disabled.

The following video explains the password reset procedure for Network Management Card 2 with firmware revisions of v6.X.X.

https://www.youtube.com/watch?v=PSzkHWVQfAo

Network Management Card 3 / Network Management Card for Easy UPS Procedure

NOTE: Resetting your NMC will reset the card to its default configuration.

If you forget your NMC’s password, you must use the Reset button on the NMC to wipe all configuration, including the password.

1.) Hold down the Reset button for 20-25 seconds, ensuring the Status LED is pulsing green during this time.

2.) When the Status LED change to amber or orange, release the Reset button to allow the NMC to complete its reboot process.

3.) After the NMC reboots, you must re-configure your NMC. For more information, see the NMC Installation Guide on the APC website.
NOTE: It is recommended you export the config.ini file after configuring your NMC to prevent loss of data in the event of a lost password.



 "},{"Title":"Video: How to Create and Load IEC61850 configuration files into ION meters","UrlName":"FA222185","LastModifiedDate":"06/08/2025","products":"ION7550/ION7650, IEC 61850 Standard","score":0.6690984418625596,"firstpublisheddate":"14/02/2014","answer":"

Product line
ION Meters
IEC61850

Environment
Firmware

Resolution

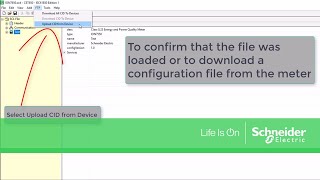

Implementing IEC61850 protocol requires CET850, which uses the ICD file specified and creates a CID file. It is this CID file which is then uploaded to the meter via FTP. Please see page 12 of IEC 61850 and ION Technology, and the attached SFT Common libraries and detailed instructions on how to load the CID files into ION meters.

Also, see FA212490 for creating a CID file for an ION7550/7650 using CET850.

Download CET850 from the Schneider Electric site (This CET850 IEC61850 configuration tool replaces the previous tool called SFT850 software, therefore it works with Sepam IEC61850 protocol as well).

"},{"Title":"Video: Why might my APC Back-UPS Product be beeping?","UrlName":"FA158827","LastModifiedDate":"17/06/2026","products":"APC Back-UPS Pro, Back-UPS RS, Back-UPS LS, Back-UPS ES, APC Back-UPS, Back-UPS CS, Refurbished Back-UPS, Back-UPS HT","score":0.5834241456618929,"firstpublisheddate":"13/08/2012","answer":"

Issue:

UPSs are generally installed and placed in places not easily seen by a user (i.e., under a desk, in a wiring closet, etc). Therefore, in order to provide proactive warnings of changing UPS and power conditions to users, APC's UPSs have audible tones. An occasional single beep from the UPS is normal UPS operations. This means that the UPS is protecting the load. Below is a partial list of audible indicators and possible meanings. Please refer to your Back-UPS user manual for the complete list of audible tones.

Product Line:

All Back-UPS Families

Cause:

1.) The Back-UPS product is operating on battery power - This alarm indicates that the UPS has transferred from On Line operation to On Battery operation. The Battery Power Supplied outlets are now battery-powered.

2.) The Back-UPS product has entered a low battery condition - This alarm indicates that the UPS has reached a Low Battery condition and will soon shut down. The UPS can only operate on battery for a limited amount of time. In order to protect the unit's batteries from discharging too much, the UPS will shut down and turn off its output. To warn you that the unit will soon shut down, the UPS will sound this alarm 2 minutes before the actual shutdown. With optional APC management software, 2 minutes can be changed to give you more of a warning of impending shutdown. If you hear this tone, you should immediately gracefully shut down your operating system to prevent data loss or corruption.

3.) Capacity Overload - This alarm indicates that the UPS has detected an Overload condition. If this alarm is sounded, try removing non-essential equipment. The alarm will remain until the load is reduced. To determine if your UPS is capable of handling the equipment you want to protect, visit APC's UPS Selector .

4.) Unit failed a self-test - Most Back-UPS products perform an internal self-test every 14 days, checking the integrity of the battery. If the battery fails the self-test, the "Replace Battery" LED will illuminate. The Replace Battery LED is a WARNING that the battery may be near the end of its life, and replacement is typically recommended within 2-4 weeks.

5.) Disabling UPS audible alarm tones  - When using the PowerChute Personal Edition software, the UPS audible alarm tones can be disabled. (Not available on all Back-UPS Models)


Resolution:
1.) The Back-UPS product is operating on battery power
Tones:
• 4 Beeps Every 30 Seconds (the amber On Battery LED will be illuminated)
. 1 beep every 5 seconds

- If the input voltage is determined to be unsafe for your computer equipment, the UPS will transfer to On Battery. The alarm will stop once the unit returns to On Line operation. Please refer to the technical specification section of your user manual for the acceptable voltage window. Occasional transfers to On Battery should not be a matter of concern, but rather, should be considered normal operation. The UPS is trying to provide clean, safe, and reliable power. If your unit shipped with APC management software it may be possible to change the default acceptable voltages that the unit shipped with. Please see the help section of the APC management software for instructions to do this.

- If the Frequency deviates + or - 5 % this will also cause a Back-UPS product to transfer to battery power. Frequency distortions are most commonly caused by generators that are undersized. Always make sure a generator is 3 to 5 times the size of the total load attached to ensure it can maintain a steady output frequency. There is no way to change the +/- 5% deviation.

- If the shape of the incoming power is considered "too dirty", some Back-UPS products may transfer to battery power. This is most likely the problem if you have already confirmed that the input voltage is within acceptable limits. Most Back-UPS products have the ability to change their sensitivity to the shape of the input power from high to medium or even low. Please see your user manual for details as to how to adjust this setting.

Note: If the power disturbance is brief, you may only hear the unit beep once or twice.

2.) The Back-UPS product has entered a low battery condition
• Continuous Beeping (the amber On Battery LED will be illuminated)

Note: This graceful shutdown will occur automatically if the APC management software is being used.

3.)Capacity Overload
• Constant, Solid Tone (the red Overload LED will be illuminated)

If the Back-UPS emits a constant flat tone and reducing the load does not solve the problem please try the following steps:

1) Turn the UPS off.
2) Unplug all the equipment from the UPS
3) Unplug the UPS from the wall outlet
4) Push and hold the power on button (you will hear two beeps) release the button before the second beep ends.

At this point, the UPS will either go into battery and work fine or it will continue to emit a constant flat tone. If the unit still emits this tone, it is an indicator that the UPS was permanently damaged due to the overload. In some failure conditions, the UPS may continue to emit this constant tone even when removed from utility power. To immediately silence this alarm during this condition, the internal battery must be disconnected via the UPS battery access door. Please contact APC Support for replacement options or visit APC's Replacement UPS Selector.

4.) Unit failed a self-test
• Continuous Beeps for One Minute; Repeated Every 5 Hours (Replace Battery LED will be illuminated)

Step 1:
Confirm that the Back-UPS product's internal battery has been connected. The instructions on how to do this are in the user manual.

Step 2:
Verify that the UPS is not being overloaded (refer to the Back-UPS products User Manual for the watt capacity of the battery outlets). APC recommends plugging only the computers and monitors in the battery-powered outlets, other peripherals should be plugged into the "Surge Only" outlets labeled on the back of the UPS. Outlet strips or surge protectors should NEVER be plugged into any UPS. Remove any excessive load from the UPS. On the same note if the Back-UPS product is close to being fully loaded (>80% of the battery outlet’s watt capacity) it is not recommended that the Back-UPS product be used as a master on switch to turn on your equipment. Instead, power the Back-UPS product on letting it complete its self-test before turning on the connected equipment. It is also acceptable to leave the Back-UPS product on and never turn it off.

Step 3:
Disconnect the external battery pack if one is in use. A self-test should be performed with the UPS fully charged (charging without interruption or transfer to battery for 5 hours) and normal load attached. To do this, make sure the Back-UPS product is plugged into the wall, push the On/Off button and hold it for approximately 4 seconds until a long tone is heard. The "On Battery" (yellow) LED will illuminate while the "On-Line" (green) LED will flash. This test will last about 15 seconds and will yield one of 2 results: If the Replace Battery LED stays lit (the unit will beep/chirp for 1 full minute indicating a failed test) the battery should be replaced. If the replacement battery LED turns off, then the battery does not need replacement.


Step 4: (Proceed only if "step 3" does not clear the Replace Battery LED)
The Back-UPS product comes with a 2-year warranty which includes the battery. If the Back-UPS product was purchased within 2 years, please contact APC Support and reference the steps performed in this document. Also, include the exact part number and serial number found on the bottom of the Back-UPS RS/XS.

If the Back-UPS product is outside of the factory warranty, use the UPS Replacement Battery and Upgrade Selector which will offer out-of-warranty options for replacing an exhausted battery pack or upgrading to a new APC Back-UPS.

5.) Disabling UPS audible alarm tones.

Managing UPS Audible Alarm Settings via On-Device Mute Feature (Back-UPS ES 'M' Series and Back-UPS Pro)

Using Quick Mute on APC Back-UPS ES M-Series to temporarily silence alarms:


Silencing Audible Alarms on APC Back-UPS Pro via Mute Button:


Managing UPS Audible Alarm Settings via PowerChute Personal Edition
Step 1:
Connect the UPS's RJ45 to USB communications cable between the UPS and the computer. Ensure the USB cable is inserted directly into one of the host computer's native USB ports. Do not use a hub or after-market USB cards to establish communications.

Step 2:
Once the computer has detected the "New Hardware Device", see Video: Installation instructions for PowerChute Personal Edition 3.0.2 or 3.1  onto a currently supported operating system.

Step 3:
Once the software has been properly installed, the UPS's audible alarms can be disabled by accessing the "Notifications Configuration" section found under the "Configurations" Tab and altering the "Battery Back-UPS Alarm" section. Here the alarms can be enabled for all events, disabled for all events, and disabled during specific UPS conditions or during customer-specified time periods.

"},{"Title":"Video: How can a factory reset be performed on an ATV320?","UrlName":"FA318564","LastModifiedDate":"15/05/2026","products":"Altivar 320","score":null,"firstpublisheddate":"30/06/2017","answer":"

Resolution:
To perform a factory reset from power up;
Enter on dial.
Scroll down to CONF menu and enter.
Scroll down to FCS- and enter.
Scroll down to FRY- and select all if you would like to reset all parameters (including function blocks). The two vertical lines to the right of 'all' should move up.
ESC back to FRY-.
Scroll down to GFS and enter.
Scroll down to yes and enter (hold for 3 seconds).
The parameter GFS should go to NO automatically.  This is when you know factory reset has been done.

\n



\n\n\n\n\n\n\n\n"}],"getPa":[{"Title":"Material Safety Data Sheets (MSDS) or Safety data Sheets (SDS) for Batteries Used in APC UPS 1 Phase Systems","UrlName":"FA158828","LastModifiedDate":"17/06/2026","products":"APCRBC140","score":0.5672724695700467,"firstpublisheddate":"13/08/2012","answer":"

Issue:

I require the Material Safety Data Sheet (MSDS) or Safety Data Sheet (SDS)  for various APC single phase UPS products.


Product Line:

All APC Single phase UPS


Environment:

All APC UPS


Cause:

\n

The majority of batteries used in APC by Schneider Electric Uninterruptible Power Supply (UPS) systems and Replacement Battery Cartridges (RBCs) are contained within cartridges and are sealed, non-spillable, maintenance-free lead acid batteries. The batteries are a manufactured article consisting of a plastic, sealed case, terminals and flame arrestor vent caps. Case color varies. The electrolyte is contained within the case and consists of the electrolyte held captive in an adsorbed glass mat (AGM) or gel matrix. There is no “free” electrolyte to leak out of the case. Under normal use and handling, there is no contact with the internal components of the battery or the chemical hazards. Under normal use and handling, these products do not emit regulated or hazardous substances. The design life of a sealed lead acid battery is 3-5 years depending on environmental factors. Using the batteries past the end of it’s design life can result in electrolyte leakage.

In a few cases, Replacement Battery Cartridges (RBCs) containing High Power Lithium Ion Cell, Phosphate-Based are also used. These batteries are used stricitly in select models found in the Back-UPS Connect family.



\n

Resolution:

\n

North America

\n

\n UPS \n	\n Battery \n	\n MSDS \n
Back UPS, Smart UPS, Easy UPS, Symmetra LX, Symmetra RM	All VRLA RBC, SYBT2, SYBT5	Click Here

\n



\n

Smart UPS Line Interactive Lithium Ion

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SCL500RM1NC / SCL500RM1UC / SCL500RM1UNC	N/A	Click Here	Click Here
SMTL750RM2UC / SMTL1000RM2UC / SMTL1500RM2UC	N/A	Click Here	Click Here
SMTL2200RMXXX / SMT2K2RMXXX / SMT3000RMXXX / SMT3KRMXXX	APCRBC174-LI	Click Here	Click Here

\n

Smart UPS Ultra

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SRTL2K2RM1UC / SRTL2K2RM1UNC / SRTL3KRM1UNC / SRTL3KRM1UWC	APCRBC173-LI	Click Here	Click Here
SRTL50RMBP1U-LI	N/A	Click Here	Click Here
Smart UPS Ultra 5K-10K / SRTL180RM2UBP /  Smart UPS Modular Ultra	SRYLBM	Click Here	Click Here

\n

Easy UPS Online Lithium Ion

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SRVSL1KRARK / SRVSL2K2RARK / SRVSL3KRARK	RBCV181-LI / RBCV182-LI / RBCV183-LI	Click Here	Click Here
SRVL48RMBP2U	N/A	Click Here	Click Here
SRVL48RMBP3U	N/A	Click Here	Click Here

\n

Schneider Off-Grid

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
PPS330	N/A	Click Here	Click Here
PPS500	N/A	Click Here	Click Here
PPS730	N/A	Click Here	Click Here

\n

Microsoft Surface Hub 2S & Surface Hub 3

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
CSH2		Click Here	Click Here

\n



\n

EU / International

\n

\n UPS \n	\n Battery \n	\n MSDS \n
Back UPS, Smart UPS, Easy UPS, Symmetra LX, Symmetra RM	All VRLA RBC, SYBT2, SYBT5	Click Here

\n

Smart UPS Line Interactive Lithium Ion

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SCL500RMI1UC / SCL500RMI1UNC	N/A	Click Here	Click Here
SMTL750RMI2UC / SMTL1000RMI2UC / SMTL1500RMI2UC	N/A	Click Here	Click Here
SMTL2200RMIXXX / SMT2K2RMIXXX / SMT3000RMIXXX / SMT3KRMIXXX	APCRBC174-LI	Click Here	Click Here

\n

Smart UPS Online Lithium Ion

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SRTL1000RMXLI / SRTL1500RMXLI	XBP48RM1U-LI	Click Here	Click Here
SRTL2200RMXLI / SRTL3000RMXLI	XBP48RM1U2-LI	Click Here	Click Here
SRTL1000RM4UXLI / SRTL1500RM4UXLI / SRTL2200RM4UXLI / SRTL3000RM4UXLI	XBP48RM2U-LI	Click Here	Click Here

\n

Smart UPS Ultra

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SRTL2K2RM1UIC / SRTL2K2RM1UINC / SRTL3KRM1UINC / SRTL3KRM1UIC	APCRBC173-LI	Click Here	Click Here
SRTL50RMBP1U-LI	N/A	Click Here	Click Here
Smart UPS Ultra 5K-10K / SRTL180RM2UBP	SRYLBM	Click Here	Click Here

\n

Easy UPS Online Lithium Ion

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
SRVL1KRIRK / SRVSL1KRIRK / SRVL2K2RIRK / SRVSL2K2RIRK / SRVL3KRIRK / SRVSL3KRIRK	RBCV181-LI / RBCV182-LI / RBCV183-LI	Click Here	Click Here
SRVL48RMBP2U	N/A	Click Here	Click Here
SRVL48RMBP3U	N/A	Click Here	Click Here

\n

Schneider Off-Grid

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
PPS330	N/A	Click Here	Click Here
PPS500	N/A	Click Here	Click Here
PPS730	N/A	Click Here	Click Here

\n

Microsoft Surface Hub 2S & Surface Hub 3

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
CSH2	N/A	Click Here	Click Here

\n

APC Back UPS Connect

\n

\n UPS \n	\n Battery \n	\n MSDS \n	\n UN38.3 \n
CP12036LI	N/A	Click Here	Click Here

\n



"},{"Title":"Download links for Vijeo Designer 6.2 SP12","UrlName":"FAQ000239885","LastModifiedDate":"11/05/2026","products":"","score":0.3896755081703138,"firstpublisheddate":"21/06/2022","answer":"

Issue:
Where can we find the download links for Vijeo Designer V6.2 SP12?

Product Line:
Vijeo Designer V6.2 (all hotfixes and service pack revisions less than SP12)

Resolution:
Please find the download links for Vijeo Designer V6.2 SP12 below. Please download the zip file and extract it to get the exe.
You must have Vijeo Designer 6.2 already installed.
Each SP is cumulative so you do not need to install SP1-10 first.
*NOTE: In order to successfully install the service pack or any of the related packages, always right-click on the exe file and select "Run as Administrator". This will ensure the installation is completed properly.

The Vijeo Designer Data Manger is for a standalone install ONLY. There is no need to install the tool with the full install of the Vijeo Designer development environment. It comes pre-installed already.

"},{"Title":"Application Note: Download SoMachine Basic Program from PLC M221 by SD Card","UrlName":"FA319420","LastModifiedDate":"22/04/2026","products":"Modicon M221","score":null,"firstpublisheddate":"29/06/2017","answer":"File as attached.
\n
\nDetails:
\nThis application is divided into several parts
\n1. Parts list
\n2. Topology
\n3. Step of configuration"},{"Title":"How to open the Hardware Configuration on a HMI running Vijeo Designer","UrlName":"FAQ000255881","LastModifiedDate":"12/02/2026","products":"Vijeo Designer","score":1.0037950664136623,"firstpublisheddate":"14/03/2023","answer":"

Issue:
Trying to open the hardware configuration on the physical HMI

Product Line:
HMI running Vijeo Designer, Vijeo Designer Runtime.

Resolution:
There are 3 options to try and open the hardware configuration on an HMI running Vijeo Designer.

[Option 1]
Press Two Corners Sequentially
For XBTGT2000 Series and higher, in the target's ToConfiguration property, select either 2 Corners or Top Left / 2 Corner to display the configuration menu using the 2-corner touch method. Press two diagonal corners on the screen within half a second of each other and in sequence—either the top-left then the bottom-right corners, or the top-right then the bottom-left corners. The corner touch areas are 50 pixels high by 50 pixels wide. The configuration menu can display while Vijeo Designer Runtime is in operation.

[Option 2]
Top-Left Corner of the Panel
1. In the Target properties, set ToConfiguration to Top Left Corner.
2. After downloading to the target machine, start up Vijeo Designer Runtime by plugging in the target machine.
3. Within ten seconds of the user application starting up, touch the top-left corner to display the configuration menu.

[Option 3]
Press Three Corners Simultaneously
In the target's ToConfiguration property, select either 3 Corner or Top Left / 3 Corner to display the configuration menu using the 3-corner touch method. Press three corners on the screen at the same time to enter the configuration menu. Simultaneously press the top-right, bottom-left, and bottom-right corners. The corner touch areas are 50 pixels high by 50 pixels wide. The configuration menu can display while Vijeo-Designer Runtime is in operation.

**These methods may differ depending on your HMI model. You can look more into it in Appendix 5 of the VJD Manual. (Menu Help -> Contents)

Note:
You can configure which of these methods to apply to your HMI. You can select this on the settings of your project:

\n



\n"},{"Title":"How to Brain Dead a Back-UPS unit. (Full UPS Logic Reset)","UrlName":"FA158947","LastModifiedDate":"22/04/2026","products":"APC Back-UPS Pro","score":1.0003795066413663,"firstpublisheddate":"13/08/2012","answer":"

Issue:
To brain dead a Back-ups is to purge the charge in the brain of the UPS.

Product Line:
Back-UPS, Back-UPS Pro, Easy UPS

Environment:
All serial numbers.

Cause:
Troubleshooting procedure often prescribed to clear some faults or unwanted behaviors.

Resolution:
To do this, follow these steps;


\n

1. Disconnect any attached load.
2. Unplug the UPS from the wall socket.
3. Disconnect the UPS' internal battery or the battery disconnect switch if any.
4. Push and hold the ""On"" button on the UPS for 5 seconds
5. Reconnect internal battery or battery disconnect switch if any.
6. Plug UPS in to known good power source.
7. Turn UPS on.

\n



"},{"Title":"Easy UPS Online software (Schneider UPS/APC UPS) has been discontinued","UrlName":"FAQ000260058","LastModifiedDate":"13/04/2026","products":"APV9601","score":0.6132827324478178,"firstpublisheddate":"05/09/2023","answer":"

Product Line:

\n\n

Schneider UPS Software

\n\n

Environment:

\n\n

Any SRV UPS with APV9601/ APVS9601 installed using Schneider UPS software

\n\n



\n\n

Cause:

\n\n

APV9601/ APVS9601 is discontinued.

\n\n



\n\n

Resolution:

\n\n

The Easy UPS Online SNMP Cards (APV9601, APVS9601) are discontinued as of 31st Aug 2023.

In line with the SNMP Cards, the Easy UPS Online Software & the Shutdown Wizard are discontinued too. Please note that SRV UPS are supported with PowerChute Serial Shutdown for Serial/USB communication and AP9544 along with PowerChute Network Shutdown for network communication, hence there's no dependency on this software.

\n\n

If the users wish to continue using their APV9601/APVS9601 and needs to use the associated UPS monitoring software &/or shutdown wizard, the last version of the software and firmware update file for APV9601/APVS9601 can be downloaded from this FAQ.

Please be advised that we will no longer publish any updates or provide support because the software is now discontinued.

"},{"Title":"Wiring of RS485 Communications Networks","UrlName":"FA221785","LastModifiedDate":"19/12/2023","products":"ION7550/ION7650, BCPM(Branch Circuit Power Meter), ION8800, PM8000 series, EM4000 series, iEM2000 series, PM3000 series, Cabinet Power Distribution, EM4300 / WT4200, iCI, Analog AMP / VLT / iAMP / iVLT, CH / iCH, CMA / CMV / iCMA / iCMV, Digital iAMP / iVLT / iFRE","score":0.3991852062135497,"firstpublisheddate":"10/10/2007","answer":"\n\n\n\n\n\n"},{"Title":"PowerLogic PM5000 Series (PM51xx, PM53xx, PM55xx, PM56xx) Modbus Register List","UrlName":"FA234017","LastModifiedDate":"20/06/2025","products":"PM5000 series","score":0.38502054125753027,"firstpublisheddate":"29/08/2014","answer":"

Issue
Register list for Modbus communication

Product Line
PM5110, PM5330, PM5340, PM5560, PM5563, PM56xx, PM57xx

Environment
Power Meter Communications Modbus Register List

Cause
PM5000 series register list is needed for Modbus communication

Resolution
See the attached documents for Register List.
There are 2 files.  One for the PM5100 and PM5300 series and the other file is for the PM5500, PM5600, and the PM5700 series.

"}]}" translations="{"tabs":{"popularArticles":"Popular Articles","popularVideos":"Popular Videos","generalKnowledge":"General Knowledge","sections":{"popularVideosTitle":"Popular Video FAQs","popularVideosTitleMobile":"Popular Videos","generalKnowledgeTitle":"Learn more through our Generic Knowledge FAQs","generalKnowledgeTitleMobile":"General Knowledge"}},"searchDocument":{"category":"Product category","publishedDate":"Published on","modifiedDate":"Last Modified on"},"moreButton":{"labelMore":"Show more","labelLess":"Show less"},"Redirection":{"message":"The FAQ you are looking for is no longer available, we have redirected you to your Country FAQ home page. Please use the FAQ search bar provided in the home page to search for your query."}}" env="new" s-id="342149">

Popular ArticlesPopular VideosGeneral Knowledge

Material Safety Data Sheets (MSDS) or Safety data Sheets (SDS) for...

Issue: I require the Material Safety Data Sheet (MSDS) or Safety Data Sheet (SDS) for various APC single phase UPS products. Product Line: All APC Single phase UPS Environment: All APC UPS Cause: The...

Published on:13/08/2012Last Modified on:17/06/2026

Product category:APCRBC140

Download links for Vijeo Designer 6.2 SP12

Issue: Where can we find the download links for Vijeo Designer V6.2 SP12? Product Line: Vijeo Designer V6.2 (all hotfixes and service pack revisions less than SP12) Resolution: Please find the...

Published on:21/06/2022Last Modified on:11/05/2026

Application Note: Download SoMachine Basic Program from PLC M221 by SD...

File as attached. Details: This application is divided into several parts 1. Parts list 2. Topology 3. Step of configuration

Published on:29/06/2017Last Modified on:22/04/2026

Product category:Modicon M221

How to open the Hardware Configuration on a HMI running Vijeo Designer

Issue: Trying to open the hardware configuration on the physical HMI Product Line: HMI running Vijeo Designer, Vijeo Designer Runtime. Resolution: There are 3 options to try and open the hardware...

Published on:14/03/2023Last Modified on:12/02/2026

Product category:Vijeo Designer

How to Brain Dead a Back-UPS unit. (Full UPS Logic Reset)

Issue: To brain dead a Back-ups is to purge the charge in the brain of the UPS. Product Line: Back-UPS, Back-UPS Pro, Easy UPS Environment: All serial numbers. Cause: Troubleshooting procedure often...

Published on:13/08/2012Last Modified on:22/04/2026

Product category:APC Back-UPS Pro

Easy UPS Online software (Schneider UPS/APC UPS) has been discontinued

Product Line: Schneider UPS Software Environment: Any SRV UPS with APV9601/ APVS9601 installed using Schneider UPS software Cause: APV9601/ APVS9601 is discontinued. Resolution: The Easy UPS Online...

Published on:05/09/2023Last Modified on:13/04/2026

Product category:APV9601

Wiring of RS485 Communications Networks

Issue This document attempts to explain correct methods of wiring RS485 communication networks in industrial environments based on various application notes and technical articles. Environment RS485...

Published on:10/10/2007Last Modified on:19/12/2023

Product category:ION7550/ION7650, BCPM(Branch Circuit Power Meter), ION8800, PM8000 series,...

PowerLogic PM5000 Series (PM51xx, PM53xx, PM55xx, PM56xx) Modbus Register...

Issue Register list for Modbus communication Product Line PM5110, PM5330, PM5340, PM5560, PM5563, PM56xx, PM57xx Environment Power Meter Communications Modbus Register List Cause PM5000 series...

Published on:29/08/2014Last Modified on:20/06/2025

Product category:PM5000 series

Show more

Popular Video FAQsPopular Videos

Video: How to perform a cold start and brain dead on...

Video: How to set PROFINET communication between Altivar...

Video: What are the different sensitivity settings of a...

Video: How do I properly reset a Symmetra XR Frame...

Video: SRT UPS reports Battery Charger Event, Event Code 142

Network Management Card (NMC) Password Reset Procedure

Video: How to Create and Load IEC61850 configuration files...

Video: Why might my APC Back-UPS Product be beeping?

Video: How can a factory reset be performed on an ATV320?

Show more

Learn more through our Generic Knowledge FAQsGeneral Knowledge

What is the selection criterion of Circuit Breakers for the Capacitor bank...

The selection should be done after derating the Circuit Breaker taking into consideration voltage variation and capacitors tolerances that could increase nominal current up to 1.5In. The Derating...

Published on:23/04/2010Last Modified on:28/02/2026

What is the Contactor?

Contactor is electrically operated switches using by electro mechanical systems. There are 2 functions of contact: main contact and auxilliary contacts. There are also have two typical contacts on...

Published on:24/05/2018Last Modified on:28/02/2026

NSX Ronis Key Dimension (Reference : 41940)

NSX Ronis Key Dimension (Reference : 41940)

Published on:30/09/2022Last Modified on:31/07/2025

3 Easy Ways to Choose the Right Contactor

There are three way to selection of contactor: 1. Types of applications, there are many application characteristics (utilization categories): such as AC-1, AC-3, AC-4 and other categories....

Published on:24/05/2018Last Modified on:25/03/2025

•

  Support Centre

  Explore other support tools to quickly find answers.

  Go to Support Centre
•

  Download Centre

  Search and download offer documentation, support information, certificates, CAD and software.

  Go to Download Centre
