Okken – Power distribution switchboard

Functional applications for Okken switchboards

• Okken thermal monitoring

  As part of the EcoStruxure™ Power platform, this tested and validated thermal monitoring solution detects overheating as a result of loose connections, unbalanced loads, and/or other issues inside an LV switchboard. This solution can run continuously (24/7), to complement or even replace the annual infrared inspection of your electrical system:

  • Maintain operational uptime and business continuity
  • Reduce operational expenses and total cost of ownership
  • Protect building occupants and electrical distribution equipment
• Power control (PCC)

  Power Control Center (PCC) features protection and power factor correction

  • Incomers: up to 6300 A (Masterpact circuit breakers)

  • Feeders: up to 6300 A (Masterpact circuit breakers), and 630 A (Compact circuit breakers)

  • Power factor correction: up to 540 kVAR
• Motor control (MCC)

  Motor Control Center (MCC) including protection, starters, and drives

  • Conventional starters up to 250 kW

  • Soft starters up to 250 kW

  • Drives up to 160 kW
• Intelligent iPMCC by Okken

  iPMCC by Okken, intelligent switchboard solutions for energy efficiency

  • Smart advanced solution and smart devices for zero downtime tolerance, fault prevention, and automatic restarting

  • Better traceability with local or remote real-time access: status, measurements, diagnostics, trends, and energy consumption

  • Seamless integration with energy management and control systems (EMCS), and distributed control systems (DCS)

  • Tested, validated, and documented architectures (TVDA)

  • Industry-leading communication protocols

  Optimized motor performance

  • Motor monitoring and failure protection in accordance with IEC/EN 60947-7-1

  • Motor synchronization and reduced peak consumption thanks to soft starters and variable speed drives

  • Reactive power compensation management and thermal monitoring to reduce costs and increase energy availability
• Increased flexibility

  Optimized footprint and modular design

  • Compactness and high stacking density

  • Single front or double front access thanks to back-to-back configuration

  • Top or bottom direct power connections, rear or side power connections

  • Fixed, disconnectable or withdrawable functional units

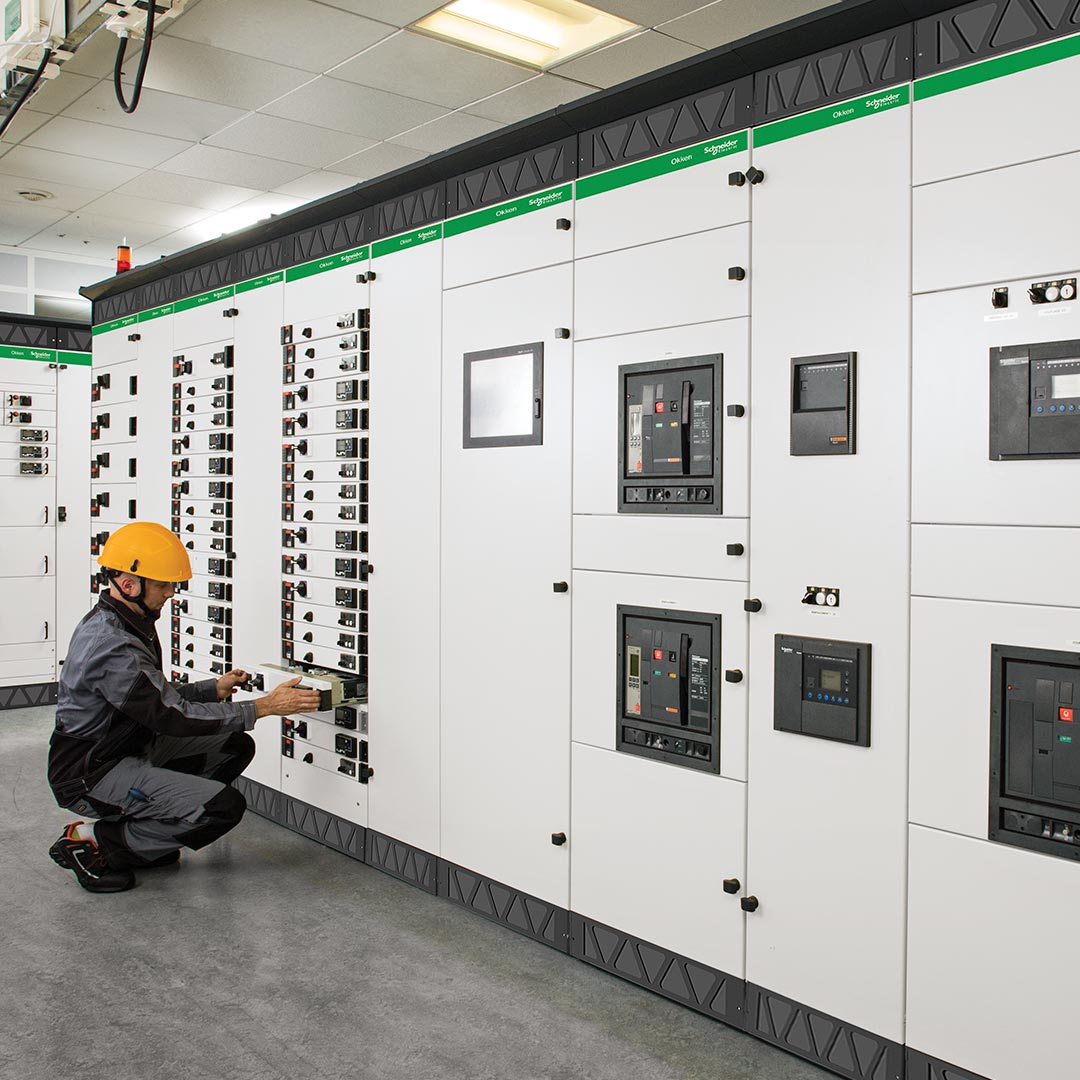

  Withdrawable drawers optimization

  • Drawer size optimization: full and half-widths, heights from 100 to 600 mm

  • Direct connection to the arc-free vertical busbar (50 mm pitch)

  • Reliable drawer position indicator, and drawer stop

  Stress-free upgrading, and maintenance

  • Upgrade energized equipment in complete safety thanks to the withdrawable drawers

  • Withdrawable Masterpact and plug-in Compact circuit breaker modules

  • Customer connection separate from the functional unit (form up to 4b)

  • Degree of protection up to IPxxD on busbars
• Services and support

  To boost your return on investment and to be most efficient

  Tools and support services

  • Advice and guidance for maintenance and upgrading

  • Regional and local services and support, assistance and troubleshooting

  • Customised vocational training, on site or in one of our training centers

  • Validated tools and architectures

  Auditing, consulting, and solution engineering

  • Customised projects, including critical applications

  • Engineering expertise for new and existing sites

  • Installation and energy audits

  • Enterprise-wide energy efficiency solutions

  Okken panel builder network

  • Manufacturing and delivery by the Schneider Electric Equipment Units or by licensed panelbuilders present all around the world

  • Licensed panelbuilders selected for their expertise, trained and regularly audited by Schneider Electric to guarantee top-quality equipment and support
