How to set the load-shedder device 1P or 3P associated to EVlink Home ?

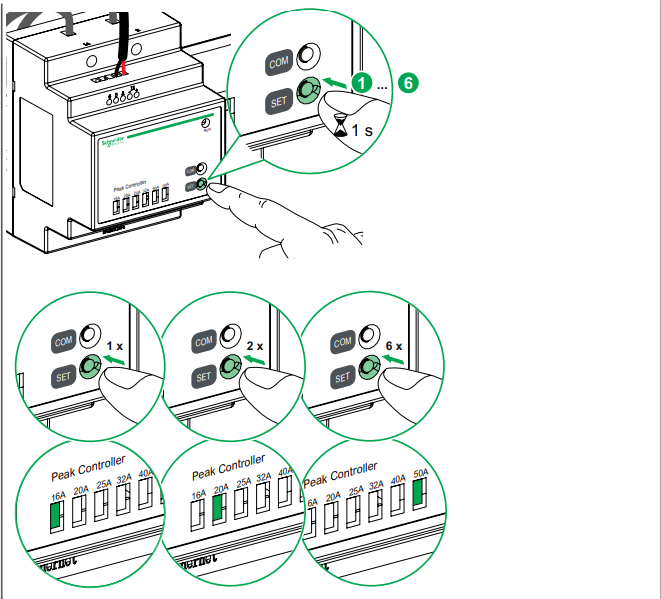

1- To set the load-shedder 1P (from 16A to 50A)
a- Read the main's home incoming circuit breaker value.
b- Set on the load- shedder, the current corresponding to the nearest lower value (a).

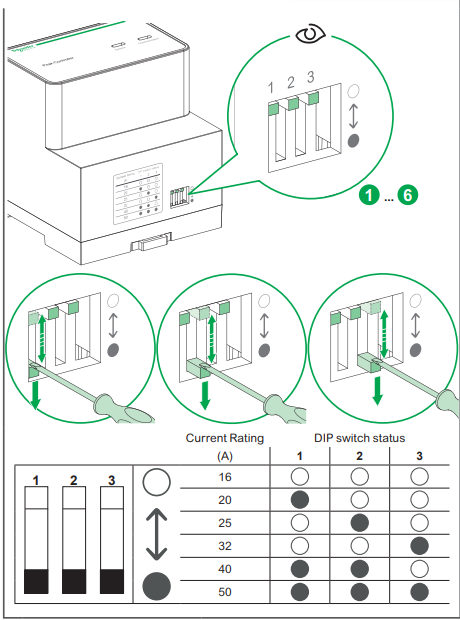

2- To set the load-shedder 3P (from 16A to 50A)
a- Read the main's home incoming circuit breaker value.
b- Set on the load- shedder, the current corresponding to the nearest lower value (a).
a- Read the main's home incoming circuit breaker value.
b- Set on the load- shedder, the current corresponding to the nearest lower value (a).
2- To set the load-shedder 3P (from 16A to 50A)
a- Read the main's home incoming circuit breaker value.
b- Set on the load- shedder, the current corresponding to the nearest lower value (a).
