How to calculate Inverse time curves in Micom Relay

Question

Accepted Answer

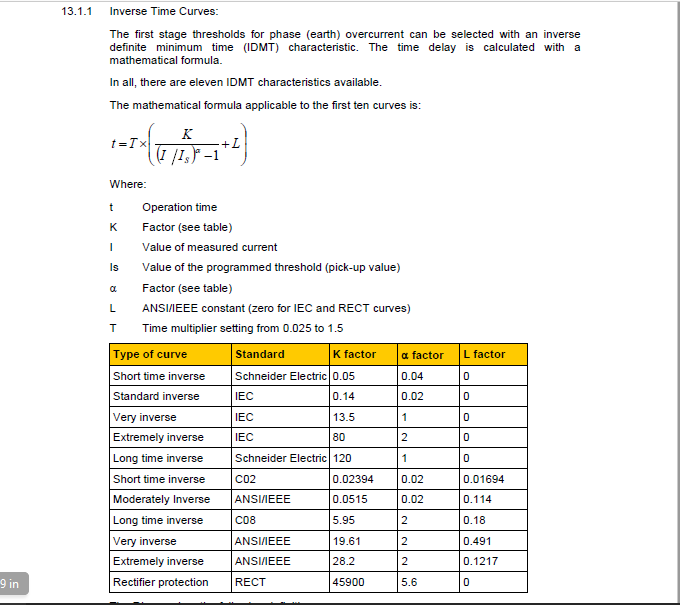

The first stage thresholds for phase (earth) overcurrent can be selected with an inverse definite minimum time (IDMT) characteristic. The time delay is calculated with a
mathematical formula. For mathematical formula refer the document attached.
