What are wiring details for BMXDDI3202K along with color code using BMXFCW301 cable.

Published date: 29 June 2019

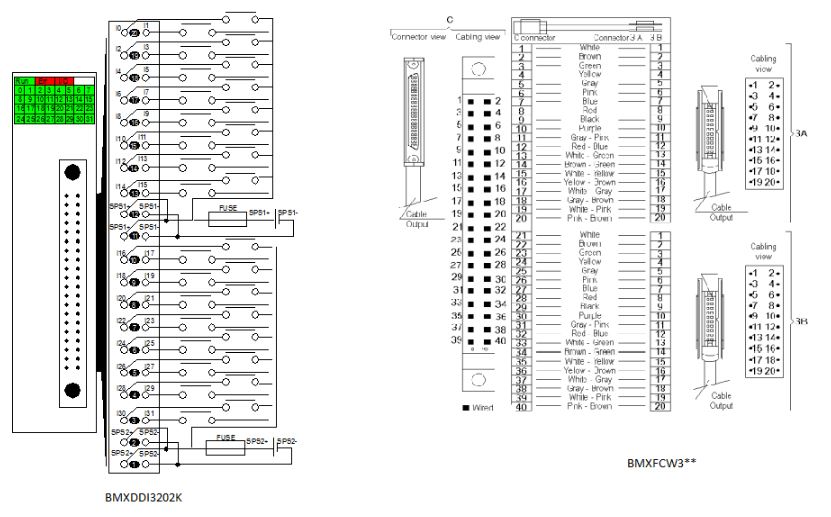

For this please find the below attached image for wiring diagram
