How to connect LTMR with PC for somove configuration with and without the LTME expansion module and the LTMCU

Question

Accepted Answer

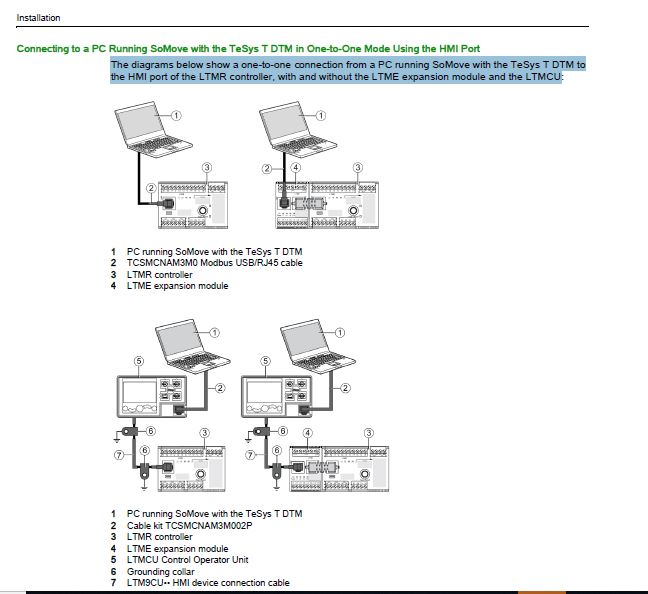

The diagrams below show a one-to-one connection from a PC running SoMove with the TeSys T DTM to
the HMI port of the LTMR controller, with and without the LTME expansion module and the LTMCU
