What is the Maximum current input at CL1 and CL2 on ATS48CXXQ


ATS 48 •••Q: Altistart control power supply 220V to 415V, the maximum current input at CL1 and CL2 on ATS48C48Q is given below.

From the formula P = VI, you can calculate the current by following formula;

I = P/V

In case you provide power supply voltage 380VAC at CL1 and CL2.

I = 80W/380V = 0.211 A

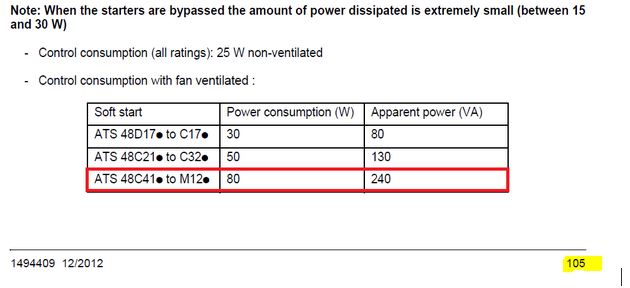

See attached image

Released for: Schneider Electric India

Attachment(s)
ATS48_Image.jpg [35.22 KB]
