Do we have provision for side mounting auxiliary contacts in 3 or 4 Pole Tesys D Green contactor ?
“ AC~ ” means alternative current coil. It concerns Contactor with AC coil.
“AC/DC” means alternative and continuous current coil. It concerns TeSys Green contactors.

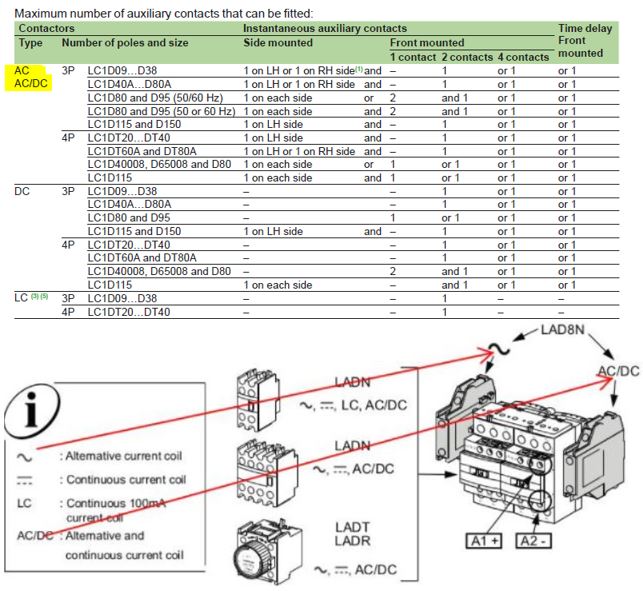

Refer the below screen Shots
The side mounted auxiliary contacts LAD8N* can fit only on the right side of the (LC1D**BNE) TeSys Green contactors.
“AC/DC” means alternative and continuous current coil. It concerns TeSys Green contactors.
Refer the below screen Shots
The side mounted auxiliary contacts LAD8N* can fit only on the right side of the (LC1D**BNE) TeSys Green contactors.
Released for: Schneider Electric India
