EPH0400161

Roll over image to zoom in

+ 4

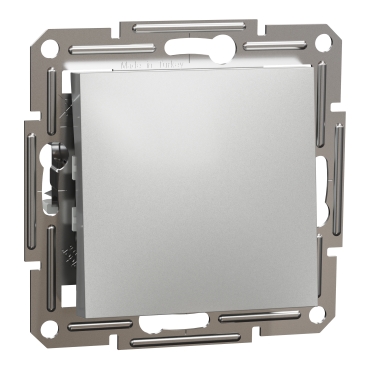

Asfora - 1pole 2way switch, screwless terminals, wo frame, aluminium

Main colour tint:

Device presentation:

Connections - terminals:

To be fixed with screws, or claws using a claw kit

Screwless terminals for simple & fast installation

Includes stylish controllers

Built to withstand everyday use

Made of durable ABS material

Environmental Data

Total lifecycle Carbon footprint

Use Better

Packaging made with recycled cardboard

Use Again

Take-back

‌

Schneider Electric Asfora switch EPH0400161 is a mechanism with fixing frame in color aluminium with 1 rocker. This is a 1-pole 2-way switch. The device's fixing mode is screws or claws. And the rated current of this switch is 10AX, with the power range of 2300W. 71 mm, 71 mm, 43 mm is its dimension, and its projecting depth is 15 mm. Flush mounting is supported so that its box can be recessed into the surface and unexposed. It features painted surface finish, with which it becomes more wear and corrosion resistant. And it reaches IP20 degree of protection too. Its connection terminals are screwless terminals. The switch is made of ABS (acrylonitrile butadiene-styrene), making it as resistant as possible. With conductor material of copper, this switch is quite resistant. It obtained NF, TSE, VDE certificates as well. Besides, the standard of IEC 60669-1 is well met. Also, it has the quality label of CE, UKR. What's more, this switch is qualified as a green premium product. And it is mercury free, taking care of the environment and your health all the time. The updated Asfora switches now feature smaller, more compact inserts, a profiled fixing frame, improved wire inlets and release buttons, and wide, profiled claws with a return spring, improving the quality and functionality of this switch. Asfora products are made from high-quality materials that won't yellow over time. The sleek, elegant design harmonizes perfectly with virtually any interior.

Main
Range	Asfora
Product or component type	Switch
Device presentation	Mechanism with fixing frame
Number of rocker	1.0
Switch function	1-pole 2-way
Load type	Load for energy saving lamps with ballast: 100 W
Colour tint	Aluminium
Type of packing	Flow-pack

Complementary
Device mounting	Flush
Power range	2300 W
Rated current	10 AX at 250 V AC
Number of cables	2 cable(s) 2.5 mm²
Cable stiffness	Flexible Rigid Solid stranded
Wire stripping length	13.0 mm
Material	ABS (acrylonitrile butadiene-styrene)
Surface finish	Painted
Conductor material	Copper
Fixing mode	Screws or claws51…70 mm
Connections - terminals	Screwless terminals
Width	71 mm
Height	71 mm
Depth	43.0 mm
Projecting depth	15 mm
Net weight	0.05975 kg

Environment
Standards	IEC 60669-1
Product certifications	TSE VDE NF
Quality labels	CE UKR
IP degree of protection	IP20
Ambient air temperature for operation	-5…40 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.2 cm
Package 1 Width	8.1 cm
Package 1 Length	8.9 cm
Package 1 Weight	66.0 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	9.2 cm
Package 2 Width	18.6 cm
Package 2 Length	27.7 cm
Package 2 Weight	765.0 g
Unit Type of Package 3	S04
Number of Units in Package 3	120
Package 3 Height	30.0 cm
Package 3 Width	40.0 cm
Package 3 Length	60.0 cm
Package 3 Weight	9.883 kg
