EPH2800261
Main colour tint:
Device presentation:
Includes shutters for enhanced protection
Made of durable ABS+PC material
This asfora includes stylish controllers for all the product
All Asfora products build to withstand everyday use
Simple and quick installation
Environmental Data
Total lifecycle Carbon footprint
1
Use Better
Packaging made with recycled cardboard
No
Use Again
Take-back
No

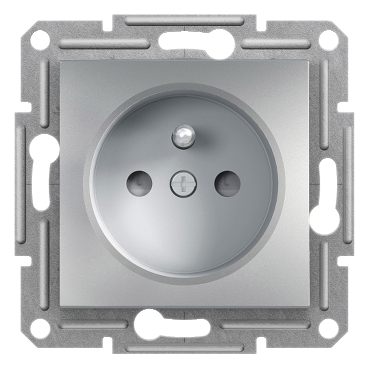

Schneider Electric Asfora socket-outlet EPH2800261 in color aluminium is a mechanism with fixing frame with 1 outlet. The outlet pole configuration of this socket-outlet is 2P + E with shutters with pin earth. It takes your safety into consideration all the time as it is shuttered. And the rated current of this socket-outlet is 16A, whose power range is 3680W. The fixing mode of this device is screws or claws. 71 mm, 71 mm and 42 mm are the width, height and depth respectively, and its projecting depth is 10 mm. This socket-outlet enables flush mounting, making its box not protruding the wall. Painted surface finish makes it exceptional wear and corrosion resistant. Being reliable and resistant enough, it reaches IP20. Its connection terminals are lift terminals. The socket-outlet is made of ABS + PC, making it as resistant as possible. With conductor material of copper, this socket-outlet is quite resistant. The standard of IEC 60884-1 is well satisfied. It obtained SEP-BBJ, TSE certificates as well. Besides, it is a green premium product, protecting your family all the time. And it is mercury free, taking care of the environment and your health all the time. Asfora products are made from high-quality materials that won't yellow over time. The sleek, elegant design harmonizes perfectly with virtually any interior.
| Range | Asfora |
|---|---|
| Product or component type | Socket-outlet |
| Socket number | 1 |
| Outlet poles configuration | 2P + E |
| Socket additional information | Shuttered |
| Colour tint | Aluminium |
| Type of packing | Flow-pack |
| Device presentation | Mechanism with fixing frame |
|---|---|
| Device mounting | Flush |
| Fixing mode | Screws or claws51…69 mm |
| Outlet standard | CEE 7/5 |
| Outlet standard deviation | French |
| Outlet standard description | Pin earth |
| Power range | 3680 W |
| Rated current | 16 A at 250 V AC |
| Surface finish | Painted |
| Material | ABS + PC: central plate |
| Wire stripping length | 13.0 mm |
| Conductor material | Copper |
| Connections - terminals | Lift terminals |
| Number of cables | 2 cable(s) 2.5 mm² |
| Cable stiffness | Flexible Rigid Solid stranded |
| Quantity per set | 1 |
| IP degree of protection | IP20 |
| Projecting depth | 10 mm |
| Width | 71 mm |
| Height | 71 mm |
| Depth | 42 mm |
| Net weight | 0.069 kg |
| Standards | IEC 60884-1 |
|---|---|
| Product certifications | SEP-BBJ TSE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.1 cm |
| Package 1 Width | 7.1 cm |
| Package 1 Length | 4.2 cm |
| Package 1 Weight | 69.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.4 cm |
| Package 2 Width | 18.5 cm |
| Package 2 Length | 27.5 cm |
| Package 2 Weight | 930.0 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 40.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 12.312 kg |
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
1
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Compliant with Exemptions
SCIP Number
52b60409-d705-46c7-9ba3-cc3ef6e307da
REACh Regulation
Use Again
End of life manual availability
No need of specific recycling operations
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
