RXZE14P
These relays can be expanded with protection modules such as diode, diode with LED, varistor with LED, and RC circuit.
The electromechanical relays help to reduce the size of enclosures and at the same time increase machine reliability.
Environmental Data
Total lifecycle Carbon footprint
1
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No
This Harmony RXZ range is a plug-in socket. It has a rated voltage of 250V AC with an output rating of 7A. It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere It is compatible with plug in control relay. It enables easy installation and connect to relay from its socket. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). It is a green premium product and conforms to international standard and certifications. This Push-in relay socket is compatible with interface plug-in relay RXM range.
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
|---|---|
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 12 A 2 C/O relays 6 A 4 C/O relays |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Ue] rated operational voltage | 250 V conforming to IEC 300 V conforming to UL |
|---|---|
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| Length | 98 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 31 mm |
| Height | 85 mm |
| Net weight | 0.080 kg |
| IP degree of protection | IP20 |
|---|---|
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA Lloyd's UL EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 9.900 cm |
| Package 1 Weight | 72.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.200 cm |
| Package 2 Width | 16.200 cm |
| Package 2 Length | 20.700 cm |
| Package 2 Weight | 828.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 70 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 6.360 kg |
| Warranty | 18 months |
|---|
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
1
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
Pro-active compliance (Product out of EU RoHS legal scope)
REACh Regulation
Use Again
End of life manual availability
No need of specific recycling operations
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

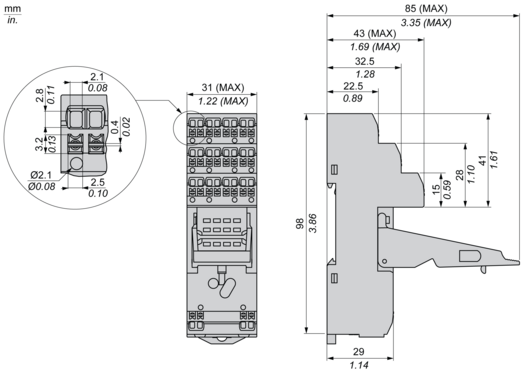

Dimensions
Wiring
Installation
Installation
Push In (Insert Cable)
(1) : Insert Wire

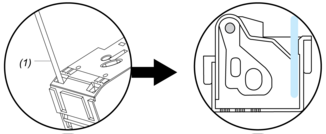

Uninstallation
Pull Out (Remove Cable)
(1) : Press
(2) : Pull Wire
