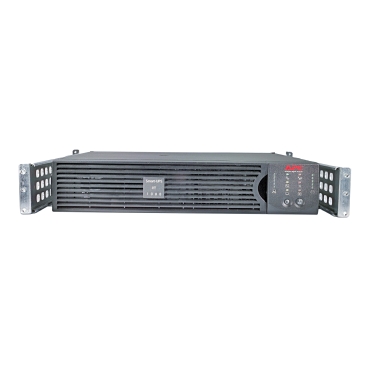

SURT1000RMXLI-NC
Discontinued on:Oct 1, 2025
To be end-of-service on:Oct 1, 2027
Recommended replacement(s)
Battery type:
Input voltage:
Maximum configurable power in W:
Environmental Data
Use Better
Packaging made with recycled cardboard
Yes
Energy Efficiency Optimized
Energy efficient product
Use Again
Take-back
No
Compatible Software
WUPG1PEAA-UG-01
WSAPMV-UG-01
High density, double-conversion on-line power protection with scalable runtime.
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
|---|---|
| Lead time | Usually in Stock |
Run time for load WMin-max: 70-700 W | 13min 49s |
|---|---|
Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V 1 phase |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 700 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 6 IEC 60320 2 IEC Jumpers |
| Number of rack unit | 2U |
| Provided equipment | CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual |
| Range of product | Smart-UPS On-Line |
| Battery type | Lead-acid internal included |
|---|---|
| UPS connectivity | Serial port USB port Pre-installed network management card 3 |
| Mounting mode | Rack-mounted with kit sold separately |
| Run Time | |
|---|---|
| Efficiency | |
| Battery type | Lead-acid battery |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | |
| Battery charger power | 109 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| UPS type | Double conversion online |
| Colour | Black |
|---|---|
| Height | 85 mm |
| Width | 432 mm |
| Depth | 483 mm |
| Net weight | 23 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Input voltage limits | 160...280 V |
|---|---|
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Bypass type | Built-in bypass |
|---|---|
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 700 W |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Product certifications | C-Tick CE GOST VDE UK PSTI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 50 dBA |
|---|---|
| Heat dissipation | 324 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Emergency power off | Optional |
|---|---|
| Free slots | 1 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 420 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.6 cm |
| Package 1 Width | 59.4 cm |
| Package 1 Length | 63 cm |
| Package 1 Weight | 27.8 kg |
| Warranty | 2 years repair or replace |
|---|
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
Compliant with Exemptions
SCIP Number
B2b22a56-41f2-497e-9ea6-cf093b3b8bd3
REACh Regulation
Energy Efficiency Optimized
Energy efficient product
Use Again
End of life manual availability
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
