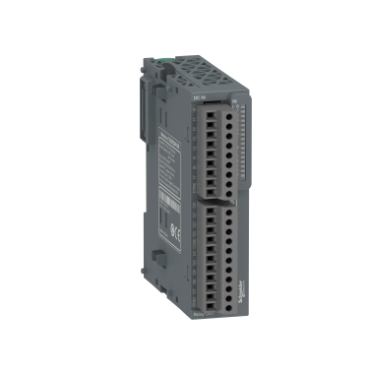

TM3RDM16R
Ideal logic controller for your small automation systems requiring flexibility and simple motion
Fast and easy programming with a simplified tool
Easy to test and debug thanks to the standard USB port and removable terminal blocks
Designed with a simple interlocking assembly mechanism
Designed for simple machines
Environmental Data
Total lifecycle Carbon footprint
77
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No
SRVEW1YMSL00
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This discrete IO module provides 8 digital inputs and 8 digital outputs. It manages 8 sink/source 24V DC inputs and 8 relay outputs. Digital IO modules can be used to create configurations with up to 196 digital IO. The IO response time is 4ms (turn-on), 4ms (turn-off). It is furnished with removable screw terminal block, 11x 1.5squaremm for outputs and 9x 1.5squaremm for inputs, with 3.81mm pitch adjustment. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.118kg. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This module is specially designed and only applicable for Modicon M200 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete I/O module |
| Range compatibility | Modicon Easy M200 |
| Discrete output logic | Positive or negative |
| Mechanical durability | 20000000 cycles |
|---|---|
| Maximum cable distance between devices | Unshielded cable: <50 m for input Unshielded cable: <150 m for output |
| Local signalling | 1 LED per channel (green) for I/O state |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Net weight | 0.118 kg |
| Marking | CE |
|---|---|
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.400 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 10.300 cm |
| Package 1 Weight | 190.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 6.920 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 35.680 kg |
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
77
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
Pro-active compliance (Product out of EU RoHS legal scope)
REACh Regulation
Use Again
End of life manual availability
Take-back
No
