VW3A4420
Enables your servo drive to be in compliance with electromagnetic compatibility requirements
Easy to select and order thanks to the just enough number of references
Easy to mount and wire up
Specially designed for simple machines
Environmental Data
Use Better
Packaging made with recycled cardboard
No
Use Again
Take-back
No
This EMC input filter enables your servo drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. Its rated current is 10.1A, its thermal losses are 3.7W and its network rated voltage is 200V to 240V. The external input filters allow Easy Lexium 16 servo drives to comply with the European directive on EMC (electromagnetic compatibility). The maximum servo motor cable length conforming to IEC/EN 61800-3 category C3 (1) in environment 2 is 25meters. It acts as a support for the drives and is attached to them via tapped holes. It weighs 0.600kg. It is a low-pass filter used to improve noise attenuation (or rejection) in problems of electromagnetic compatibility. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Easy Lexium 16 servo drives. It is sold by one piece. It is mounted beside the variable speed drive. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.
| Range of product | Lexium Altivar |
|---|---|
| Product or component type | EMC input filter |
| Range compatibility | Altivar 32 Altivar Machine ATV320 Lexium 28 Lexium 32 |
| Product compatibility | ATV32, 200...240 V, 0.18...0.75 kW LXM28A LXM32, single-phase, line current 2.9...5.4 A Variable speed drive ATV320...B at 0.18 kW, 200...240 V, single phase Variable speed drive ATV320...B at 0.37 kW, 200...240 V, single phase Variable speed drive ATV320...B at 0.55 kW, 200...240 V, single phase Variable speed drive ATV320...B at 0.75 kW, 200...240 V, single phase |
| Product specific application | Radio interference input filter |
| Mounting location | At variable speed drive side |
| Network number of phases | Single phase |
| Maximum cable distance between devices | 20 m conforming to IEC 61800-3 category C1 50 m conforming to IEC 61800-3 category C2 |
|---|---|
| [In] rated current | 10.1 A |
| Thermal losses | 3.7 W |
| Network rated voltage | 200…240 V |
| Tolerance | - 15...10 % |
| Net weight | 0.6 kg |
| Emc filter compatibility | Type 020 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 18.200 cm |
| Package 1 Length | 23.200 cm |
| Package 1 Weight | 466.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 11 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.748 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 88 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 55.828 kg |
| Warranty | 18 months |
|---|
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Use Better
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Pro-active compliance (Product out of EU RoHS legal scope)
Use Again
Take-back
No

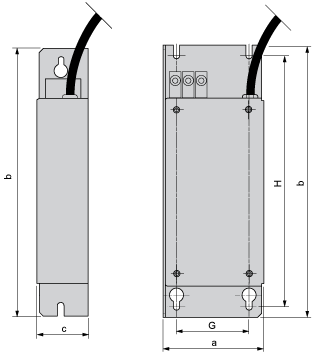

Additional EMC Input Filters
Dimensions in mm
a | b | c | G | H | Ø |
|---|---|---|---|---|---|
72 | 195 | 37 | 52 | 180 | 4.5 |
Dimensions in in.
a | b | c | G | H | Ø |
|---|---|---|---|---|---|
2.83 | 7.68 | 1.46 | 2.05 | 7.09 | 0.18 |
Mounting Recommendations
Mounting the Filter on the Side of the Drive
Recommended Schema
(1)
Filter
(2)
Drive
