ZB5RTC2
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
Environmental Data
Total lifecycle Carbon footprint
2
Use Better
Packaging made with recycled cardboard
Yes
Use Longer
Product repair index
A
Use Again
Take-back
No
This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return black mushroom head, diameter 40mm. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 55g.
| Range of product | Harmony XB5 |
|---|---|
| Product or component type | Wireless and batteryless transmitter |
| Device short name | XB5R |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 40 mm |
| Transmission frequency | 2405 MHz |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Shape of signaling unit head | Round |
|---|---|
| Type of operator | spring return push-button with transmitter |
| Operator profile | Black mushroom Ø 40 mm, unmarked |
| Max power consumption in W | 1 mW |
| Number of channels | 16 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| Embedding depth | 43 mm |
| CAD overall height | 42.75 mm |
| CAD overall width | 27.8 mm |
| CAD overall depth | 28.8 mm |
| Operating travel | 4.3 mm (total travel) |
| Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | Free fall resistance 1000 mm conforming to IEC 60068-2-32 |
| Standards | CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 UL 508 |
| Radio agreement | ANATEL ARIB T66 FCC ICASA RSS |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Maximum sensing distance | 100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition time | 2 ms |
| Response time | < 2 ms |
| Emission power | 3 mW |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Device composition | ZB5RZC2 ZBRT1 |
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 95 % at -40…70 °C without condensation |
| IP degree of protection | IP66 (front face) conforming to IEC 60529 IP67 (front face) conforming to IEC 60529 IP69 (front face) conforming to IEC 60529 IP69K (front face) conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Mechanical durability | 1000000 cycles |
| Shock resistance | 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration resistance | +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Product certifications | BT 2006/95/EC CCC CSA GOST UL C-Tick |
| Directives | 2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4 cm |
| Package 1 Width | 5.2 cm |
| Package 1 Length | 12.4 cm |
| Package 1 Weight | 68 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.333 kg |
| Warranty | 18 months |
|---|
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
2
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
Pro-active compliance (Product out of EU RoHS legal scope)
SCIP Number
E1d47e89-a4e1-4f33-a0c0-2fe5c9179aa4
REACh Regulation
Use Longer
Product repair index
A
Use Again
End of life manual availability
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

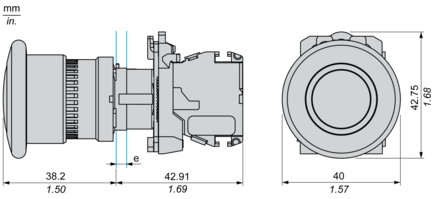

Dimension Drawing
Complete Transmitter - Ø40 Mushroom Pushbutton Head Ø22 Spring Return
e: panel thickness 1 to 6 mm / 0.039 to 0.24 in.
