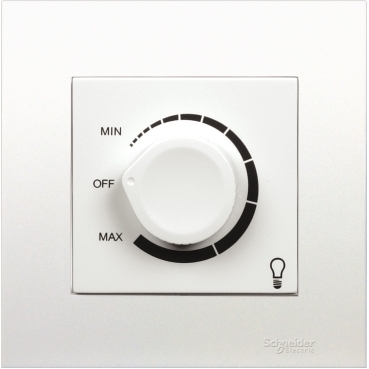

KB31RD400 Picture of product Schneider Electric

View all Vivace

KB31RD400

KB31RD400 Picture of product Schneider Electric
View all Vivace
KB31RD400

1 Gang 400W Light Dimmer

Show more characteristics >
Where to Buy
Contact Us
Add to My Products Remove from My Products
The maximum number of products that can be compared is 4
  • Main
    range
    Vivace
    device short name
    KB31
    product or component type
    Dimmer
    device presentation
    Complete mechanism
    Colour tint
    White
    Complementary
    power range
    Tungsten filament: 400 W
    [Ue] rated operational voltage
    220...240 V AC
    network frequency
    50 Hz
    number of gangs
    1 gang
    connections - terminals
    Pillar terminals
    terminal identifier
    L
    Load
    tightening torque
    0.4 N.m
    clamping connection capacity
    1.5 mm²
    contacts material
    Brass and phosphor bronze
    material
    Polycarbonate: grid plate
    Polycarbonate: surround
    Nylon: base
    device mounting
    Flush
    mounting support
    Wall mounted
    fixing mode
    By screw M3.5
    fixing center
    60.3 mm
    width
    87 mm
    height
    87 mm
    projecting depth
    8 mm
    embedding depth
    35 mm
    Environment
    ambient air temperature for operation
    -5…40 °C
    relative humidity
    0…95 %
    environmental characteristic
    Indoor use
    standards
    IEC 60669-2-1
    Offer Sustainability
    REACh Regulation
    REACh Declaration
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Environmental Disclosure
    Product Environmental Profile
    Contractual warranty
    Warranty
    18 months

  • Documents and Downloads

    Language
    • English
    EU RoHS Declaration
    Date
    Size
    Add to My Documents
    KB31RD400_ROHS_DECLARATION (pdf)
    Date 5/31/19
    Size 195.3 KB
    REACh Declaration
    Date
    Size
    Add to My Documents
    KB31RD400_REACH_DECLARATION (pdf)
    Date 5/31/19
    Size 195.3 KB
