EcoStruxure Control Expert license activation by phone

Title
How to activate EcoStruxure Control Expert license

Issue
Activate EcoStruxure Control Expert without an internet connection

Product Line
EcoStruxure Control Expert Version 14, 15, and 16

Environment
EcoStruxure Control Expert

Cause
Since no internet connection is present, the Schneider Electric License Manager cannot connect to the Schneider Electric Licensing Server

Resolution
Control Expert Activation by Phone Method (not available for Virtual Machine environment without internet connection)

1. Ensure that you have an active mySchneider account. If you haven't created one, please refer to the attachments and follow the instructions.

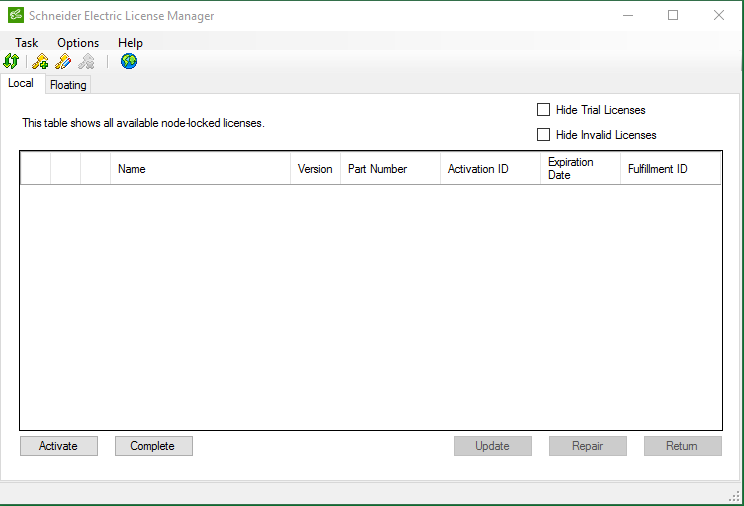

2. Open the Schneider Electric License Manager then click the Activate button.

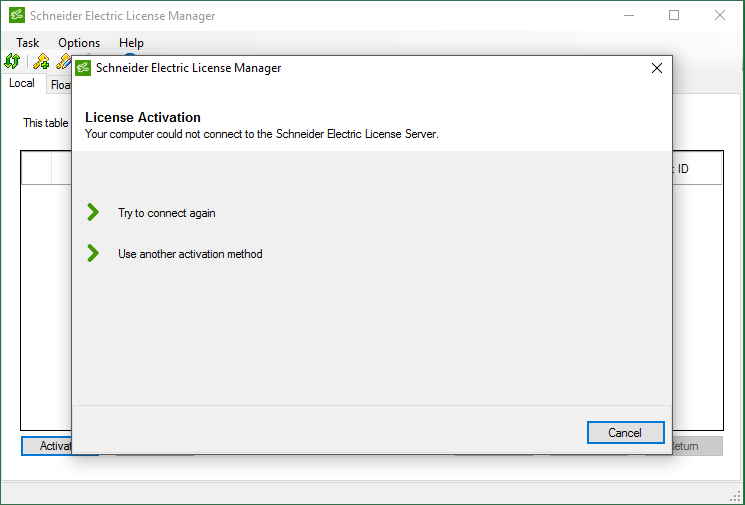

3. Click "Use another activation method"

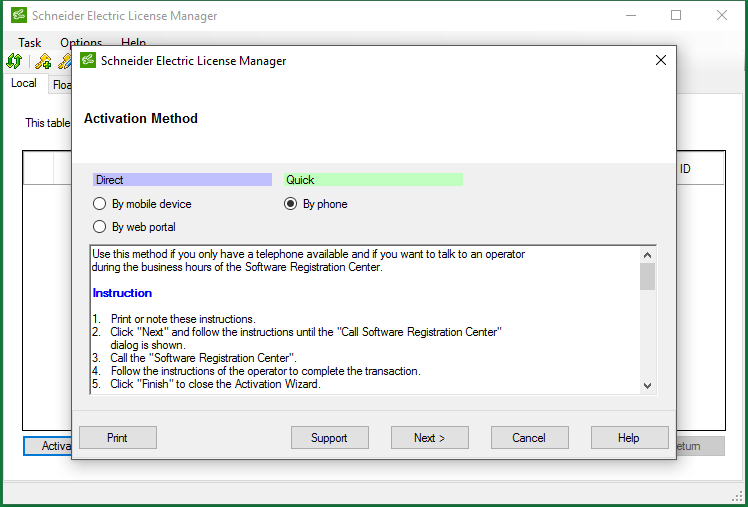

4. Click "By phone" and read the Instruction box then click Next

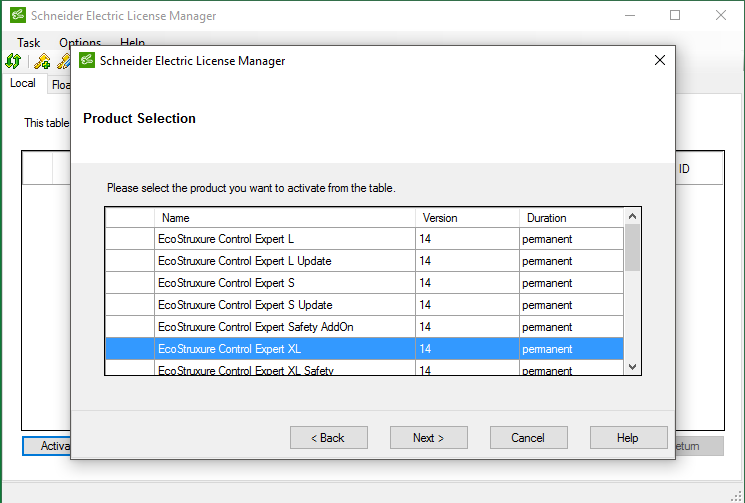

5. If EcoStruxure Control Expert is installed, it should appear on the Product Selection screen. Click the correct product that you would like to activate then click Next

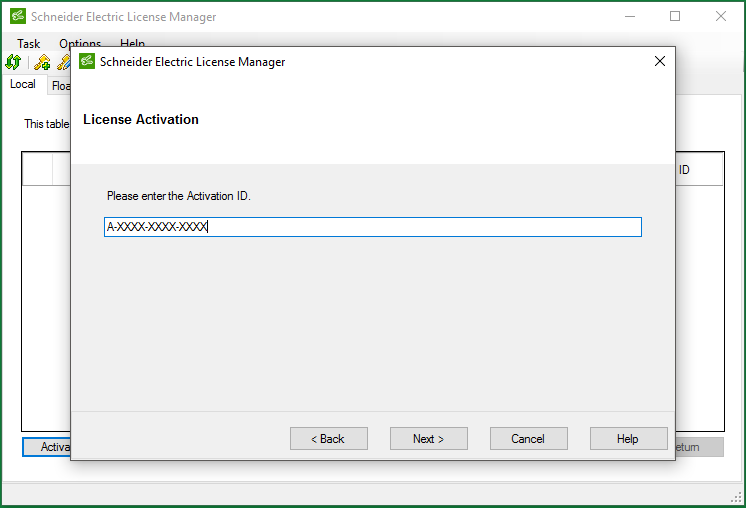

6. Enter your EcoStruxure Control Expert Activation ID then click Next

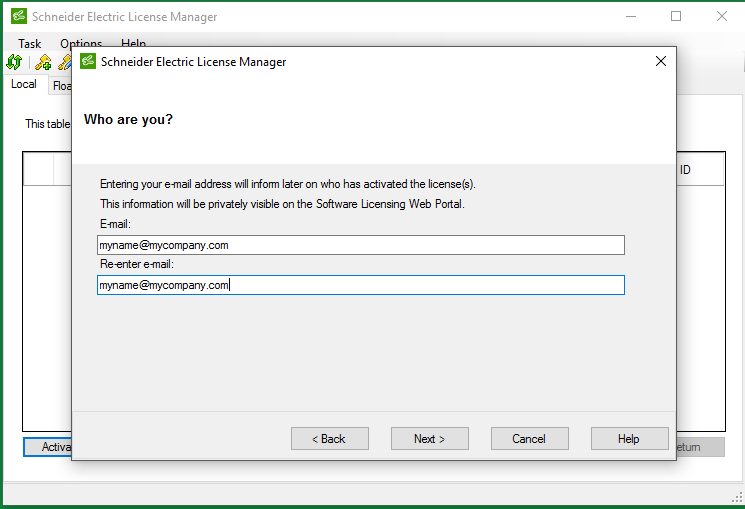

7. Enter your Software Licensing Web Portal account/mySchneider account. If you haven't created one yet, go back to the instructions on Step 1.

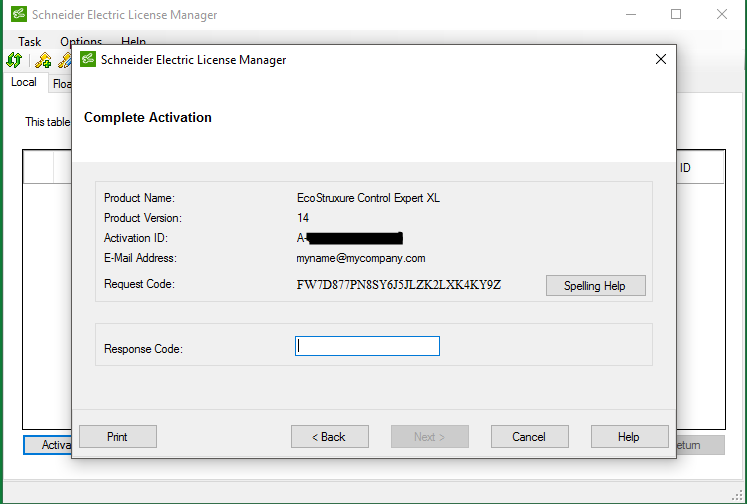

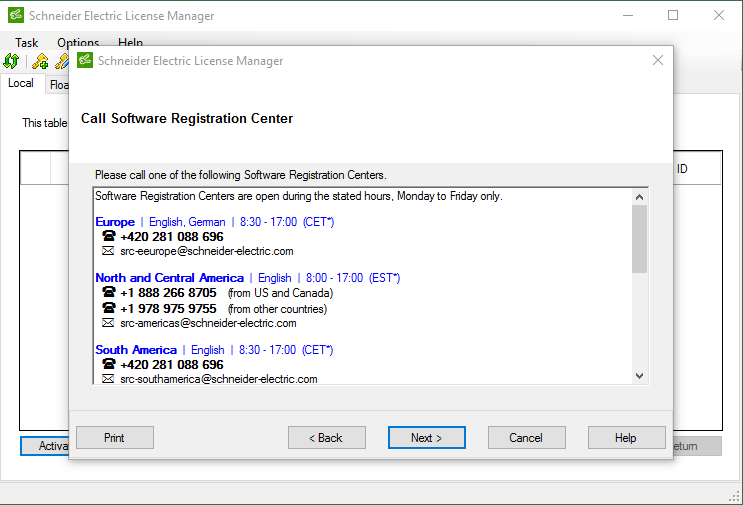

8. Call your Software Registration Center (SRC) and provide the information on the Complete Activation screen or send an email to your SRC with a screen shot of the Complete Activation screen.

   For Asia Pacific, you can contact SRC thru the following:
   Email address: src.asiapacific@se.com
   Phone number: +61272557811

9. Enter the Response Code provided by the SRC Operator then click Next then Finish to complete the activation of your software.

Released for: Schneider Electric Philippines
