About Altivar Soft Starter ATS480
Altivar Soft Starter ATS480 is the new range of soft starters from Schneider Electric designed to digitize the entire life cycle.Powered digitally by EcoStruxure, ATS480 increases efficiency from selection to maintenance.Altivar Soft Starter ATS480 had been designed to:• Respect cybersecurity requirements and usages according to the IEC 62443 standard• Meet the requirements of the most stringent applications in normal and heavy duty• Cover the operational voltage range from 208 to 690 V in a single product range up to 1200 A
Integrated functions
The Altivar Soft Starter ATS480 includes numerous functions related to monitoring, the application, and start/stop performance, including:• TCS, the original torque control system: constant control of the torque supplied to the motor during acceleration and deceleration phases (significantly reducing pressure surges)• Dynamic braking• Bypassing the soft starter using a contactor at the end of the starting phase whilst maintaining electronic monitoring (bypass function)• Wide frequency tolerance for generator set power supplies• Connecting the soft starter inside the motor delta
Energy Savings with motor management solution

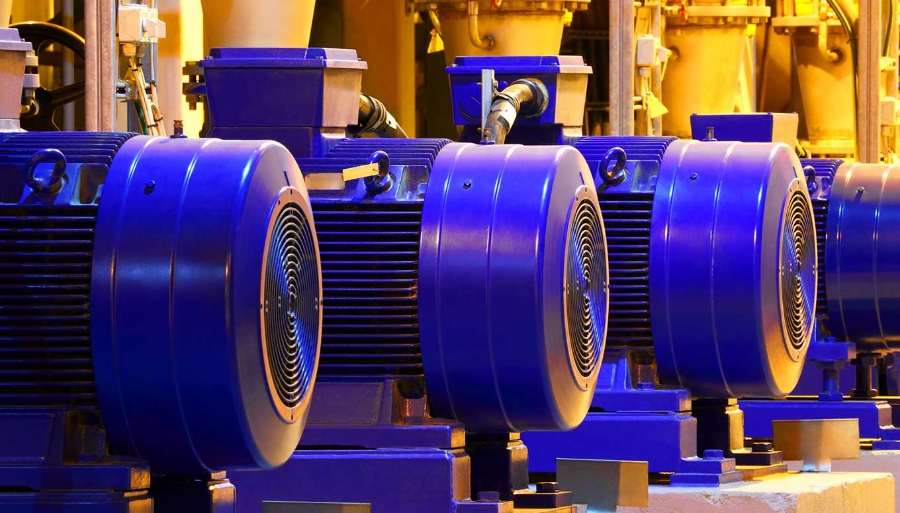

Motors are critical assets, and big consumers of electrical energy using on average 60% of the electrical energy in industrial businesses. A robust, tested and validated architectural approach to your motor management unleashes more safety and performance for your motors, enabling advanced asset management and energy efficiency.With an extensive offer portfolio, competencies and know-how, we can help you build a sustainable motor integration solution across the electrical system and the industrial processes.
Benefits of Altivar Soft Starter ATS480
Benefits of Altivar Soft Starter ATS480
Cost-effective solution
Reduce mechanical stress and improve machine availability.
Easy integration
Designed to be integrated in enclosures and control systems.
High performance
With its Torque Control System (TCS) for controlled starting and deceleration.
Integrated protection functions
Built-in motor thermal protection and protections against underloads and overcurrent in steady state.
Features
Features
• Power range: 4 to 900kW• Operational Voltage range: 208 to 690V• Operational current range: 17 to 1200 A• Operating cycle: Normal duty and heavy duty• Motor type: asynchronous motors, IE2 - IE3 - IE4 motors• Motor Control: Torque Control (TCS), voltage control• Current limitation: 500% current rating (up 700% of the rated motor current)
• Dynamic braking• DC injection• Thermal protection: Electronic overload relay, with PTC, with PT100 2- or 3-wire• Pre-heating• Smoke extraction• Multi-motor cascade• 2nd motor set
• User account management• Restrict and disable functions or services• Threat intelligence• Cybersecurity compliant firmware upgrade
• Embedded Modbus serial• Options: EtherNet/IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, PROFIBUS DP V1
• Highly robust and reliable even for the most demanding applications or in harsh environments• Flexibility to improve the continuity of the service of your applications
• User account management to enforce authorization• Enhanced cybersecurity features built-in to restrict or disable port and services• Threat intelligence to generate security related reports• Secure boot and firmware upgrade
• Pump• Fan• Compressor• Conveyor• Crusher• Mill• Grinder• Mixer• Rotary knife
Applications
Applications
Water and Wastewater
Explore moreFood and Beverage
Explore moreMining, Minerals and Metals
Explore moreEnergies and Chemicals
Explore more
How-to videos
How-to videos
Getting Started with Altivar Soft Starter ATS480
How to update the firmware on ATS480 with EADM
How to configure the cybersecurity applied to ATS480
How to substitute an ATS48 with an ATS480
