PowerPacT P-Frame Molded Case Circuit Breakers

PowerPacT P Molded-Case Circuit Breakers support better productivity and operations. Suitable for heavy-duty applications, they are designed to protect electrical distribution systems from damage caused by overloads and short circuits, with ratings from 100 A to 1200 A.PowerPacT features a new visual trip locator Visi-Trip™, front-facing and semi-transparent breaker, and its forward-thinking design allows you to reach new levels of connectivity.

Worldwide availability with unique global part numbers.

Flexible and simple offer, with proven performance.

Direct access to energy metering and efficiency thanks to the Micrologic control units.

Innovative design

Improved access to information for troubleshooting and operations.
Reliable quality

For installation, dependable performance and enhanced productivity.
Scalable and sustainable

New breaker features enable scalable upgrades and are future-proof to meet environmental standards.

Features of PowerPacT P-Frame Molded Case Circuit Breakers

Available in 2-3-4 pole design.
Available from 100-1200 A, up to 600 Vac.
nterrupting ratings (AIR) include G-35 kA, J-65 kA, K-50 kA and L-100 kA at 480Vac.
Available in standard (80%) or 100% rating.

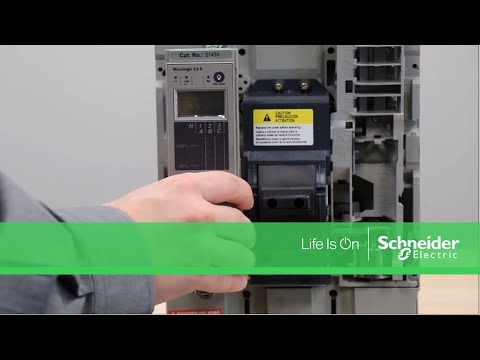

Available with Micrologic® trip units with power metering and monitoring capabilities.
Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPacT M- and P-frame circuit breakers.

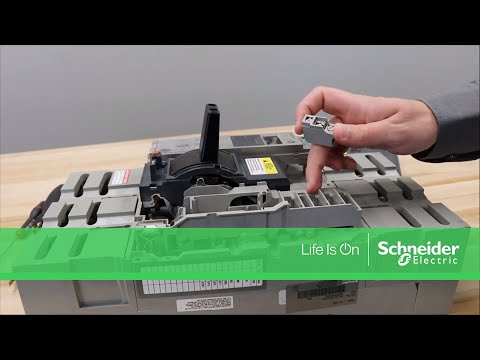

Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes.
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
Optional Ground Fault protection with nine adjustable ground fault pickup levels and five tripping delays using Micrologic 6.0 trip unit.
PG, PJ, PL have zone-selective interlocking capability (ZSI). Micrologic trip unit 5.0 has short-time ZSI and 6.0 has both short-time and ground-fault ZSI.
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications.
• IEC Style Rotary Operating Handles
- NEMA 9421 Door Mounted Rotary Operating Mechanism.
- NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated.
Available in Unit-mount, I-line, and drawout (factory-installed option only) constructions.
2-3 pole automatic molded case switches available at up to1200 A.
UL 489 Listed, CSA, NMX, IEC certified for worldwide applications.
