The new VisiPacT Heavy Duty Safety Switch
First introduced in 1907, Square D™ brand safety switches have a long history of leadership in safety and performance. The new VisiPacT heavy duty safety switch takes all the trusted features such as the switching mechanism and adds new, standard features such as a viewing window, hook stick handle, QR code for quick access to information, touch safe barriers, and more.
Viewing window
Standard viewing window for quick visual verification of switch position without the need to open the door.
Handle
Two-tone color to identify location of switch (on/off). It also features a hook stick loop for additional distance and insulation when needed.
QR code
For quick access to unit's critical ratings, manuals, and instruction bulletins.

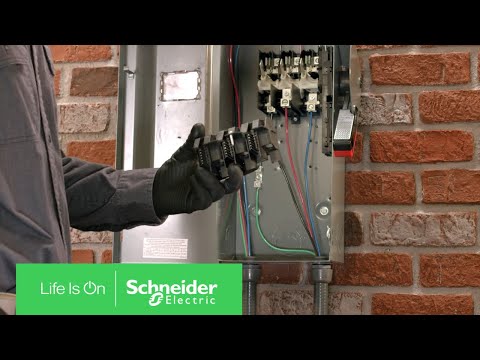

Installing Touch Safe Barriers
Hook Stick Handle Usage

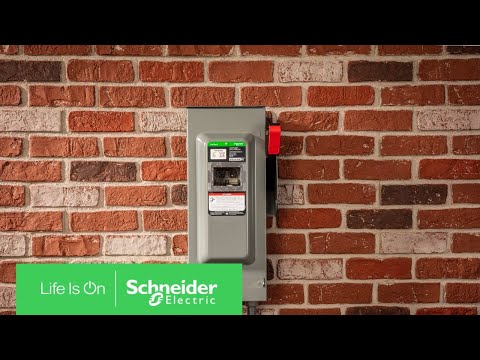

VisiPact Features
Product specifications
- Fusible and Non-Fusible options
- Poles: 2 or 3 fusible switched poles (with our without ground able solid neutral); 4 or 6 fusible switched poles (grounded, solid neutral)
- Rated Voltage: 240Vac/250Vdc or 600Vac/600Vdc
- Rated Amperage: 30 - 1200A
- Enclosures: Type 1, Type 3R, Type 12, Type 4X Stainless Steel
- Rated Horsepower: 500hp maximum
- Short Circuit Current Rating: Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
- Seismically Qualified to: 2010 ASCE 7, 2012 International Building Code (IBC), 2013 California Building Code (CBC)
