Where can I find wiring diagrams for the VW3A3201 and VW3A3202 ATV61/71 option cards?

Populaire vragen (FAQ's) zoeken

Issue:
Wiring diagrams for the VW3A3201 and VW3A3202 ATV61/71 option cards.

Product Line:
Altivar ATV61/ATV71

Environment:
All

Cause:
Needs a basic wiring diagram for the VW3A3201 and VW3A3202 option cards.

Resolution:

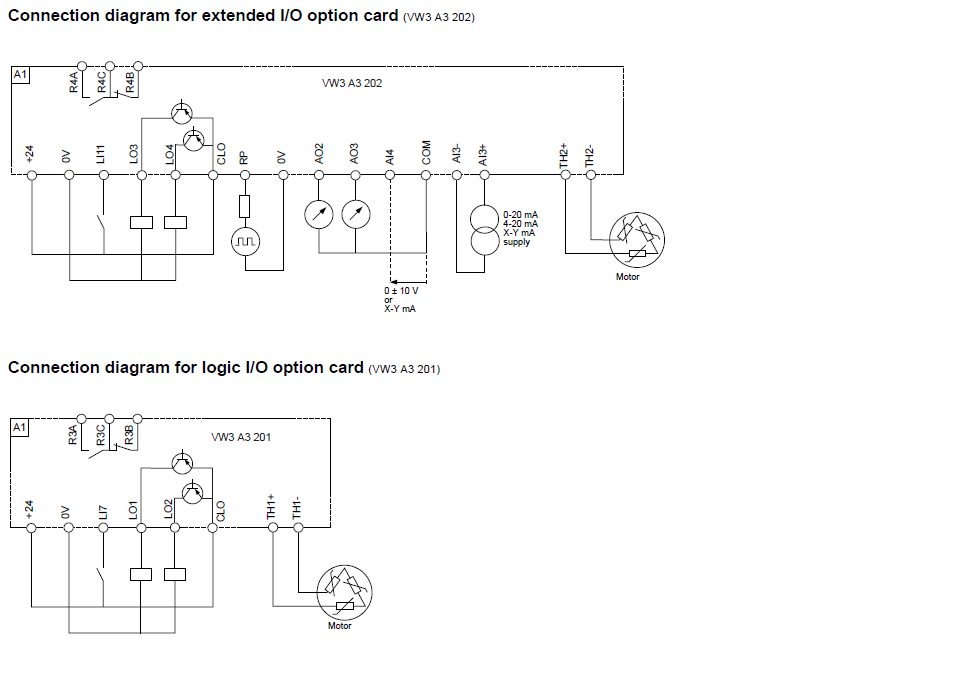

You can find both of the wiring diagrams in the ATV61 and ATV71 installation manuals.

wiring
