Issue
How to configure the STBEHC3020 for one shot.

Product Line
All versions of the Advantys Configuration Software.

Environment
Windows 7

Resolution
Wire the 'STBEHC3020' to the incremental encoder.

• Double click on the 'STBEHC3020' module to open the properties window for the module.

• Configure the parameters as shown.

· Download the application to the island.

• Start the PLC.

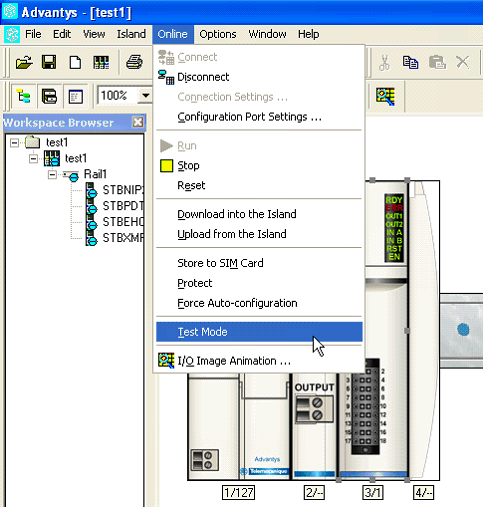

· Place the PLC into test mode.

• Set the Input Validation bits to Off.

• Enable the Counter Synch

• Enable the Counter Enable

To reset the counter, toggle the counter sync bit from 0 to 1.
