How to read the version of VW3A1111 display?
Fw version used in VW3A111 HMI can be read from:
- from HMI directly during powering up the drive where HMI is placed, see picture attached. 1.2 IE 39 is fw version in my case

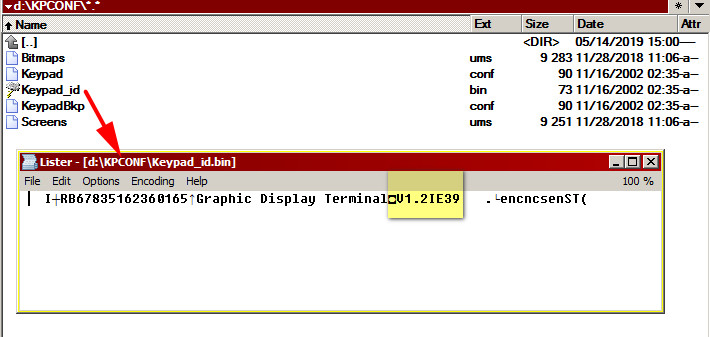

- by reading the content of keypad_id.bin file present in HMI, see attached file. The file can be read when you connect HMI to PC via usb. The file is in folder KPCONF.
- from HMI directly during powering up the drive where HMI is placed, see picture attached. 1.2 IE 39 is fw version in my case
- by reading the content of keypad_id.bin file present in HMI, see attached file. The file can be read when you connect HMI to PC via usb. The file is in folder KPCONF.
