BMXDAO1605 Datasheet wiring diagram fuse location is incorrect

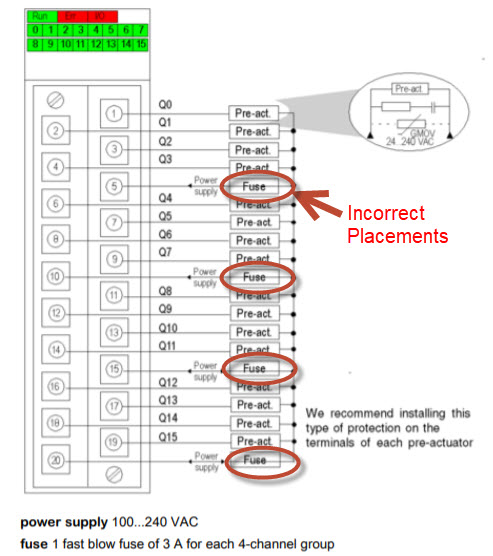

The fuse placement shown in the BMXDAO1605 datasheet is incorrect.
Note it is incorrectly shown on the neutral side of the power source.

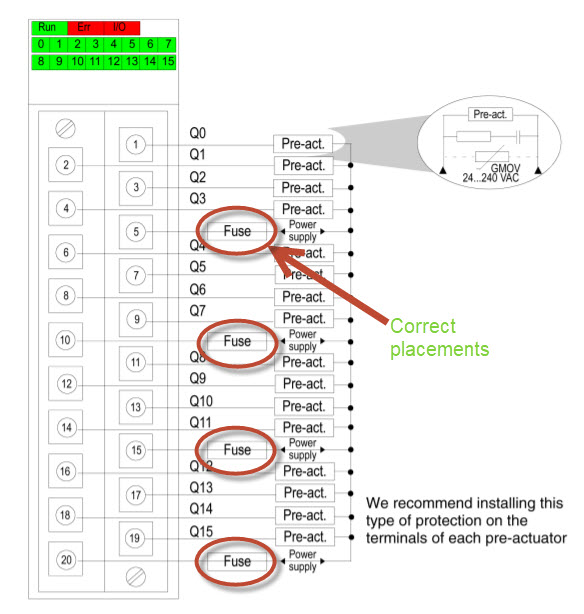

The fuse placement is correct in the following diagram as viewed in the user guide.
Note it is incorrectly shown on the neutral side of the power source.
The fuse placement is correct in the following diagram as viewed in the user guide.
