Issue:

What do the status LED colors mean when updating the Process Drives firmware using the EADM software tool?

Product Line:

EADM tool with ATV630, ATV930 or ATV340

Environment:

All

Cause:

Status indicator LED meaning

Resolution:

There are three colors for the status:

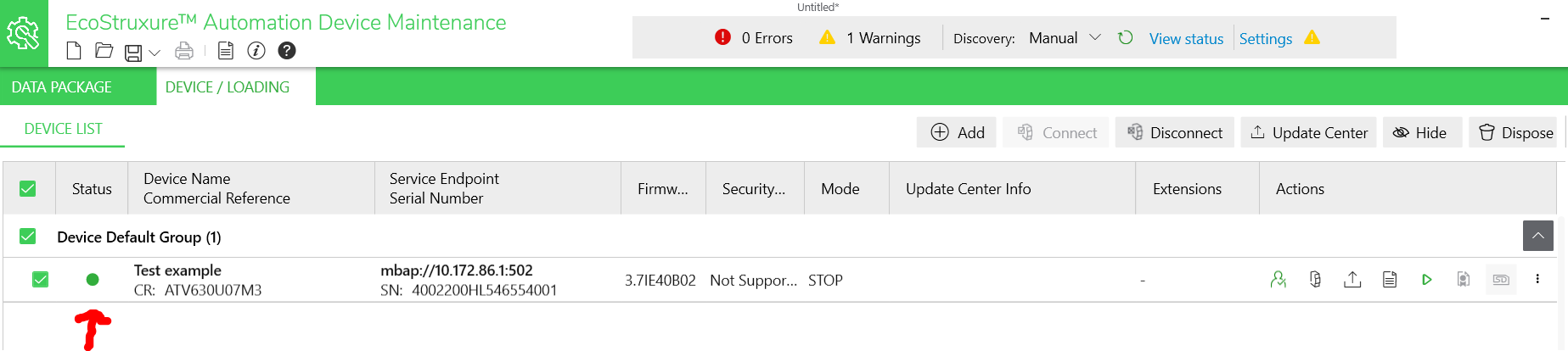

-    Green – Drive reachable and logged-in

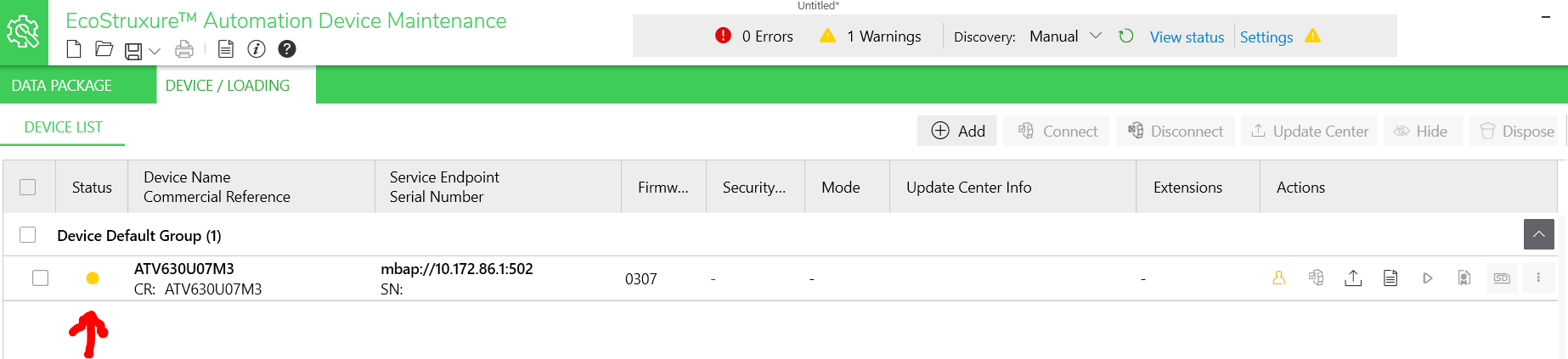

-    Yellow – Drive reachable and not logged-in

-    Gray – Drive not reachable (drive power off / disconnected)
