How do I create a Move block in EcoStruxure Machine Expert Basic?
Issue:
How to move value from one memory word to another
Product Line:
EcoStruxure Machine Expert Basic
Resolution:

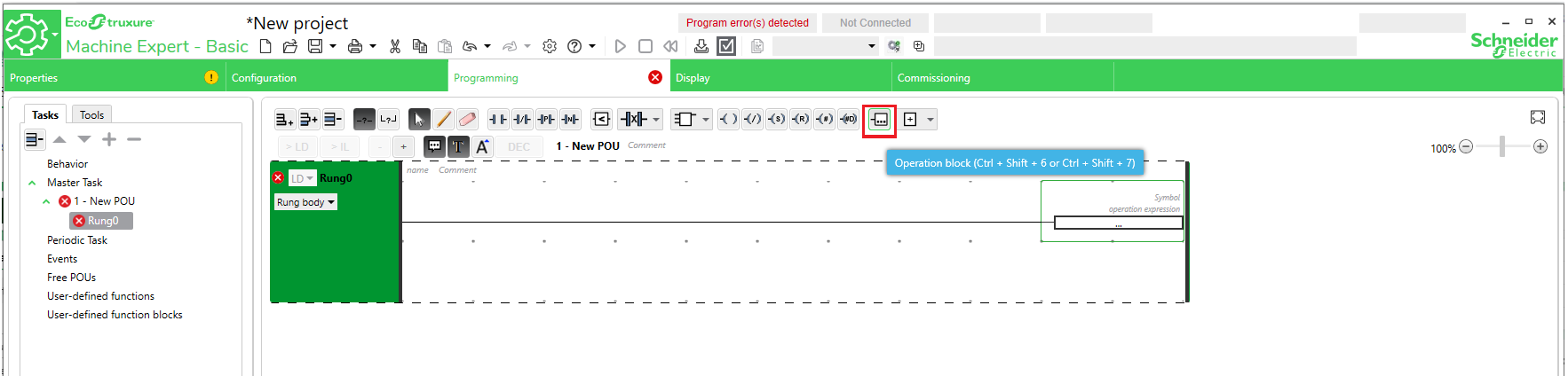

To perform a move operation, you can use the operate function block. Add the operate block to your code by clicking on the icon then drag to the end of the rung.

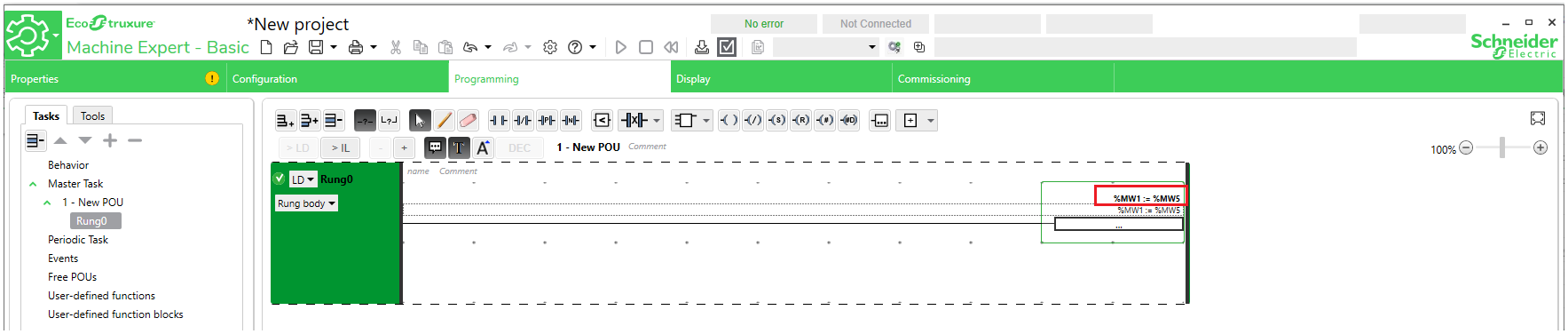

Next enter the desired operation. in the example below, the value of %MW5 is moved to %MW1.
How to move value from one memory word to another
Product Line:
EcoStruxure Machine Expert Basic
Resolution:
To perform a move operation, you can use the operate function block. Add the operate block to your code by clicking on the icon then drag to the end of the rung.
Next enter the desired operation. in the example below, the value of %MW5 is moved to %MW1.
