How to display DNP3 and/or Modbus protocol addresses in Logic Editor?

If you added DNP3 point numbers and/or Modbus register addresses before selecting the Object Protocol Address(es) in the Logic Editor custom field, you can display those addresses in the SCADAPack x70 Logic Editor:

1. Go offline in RemoteConnect.

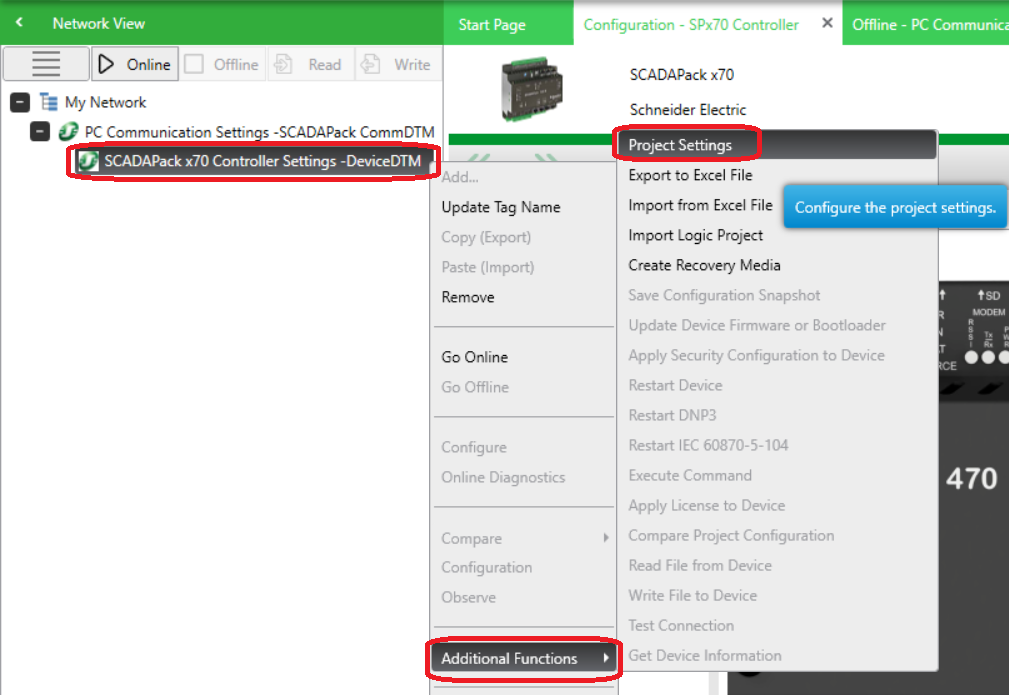

2. Under My Network, right-click on SCADAPack x70 Controller Settings-DeviceDTM and select Additional Functions>Project Settings.

3. Select the Object Protocol Address(es) in Logic Editor Custom Field checkbox.

4. Click Ok.
5. A window will pop up " The Project Settings have been updated. Click the View log File button to see the complete list of changes". and select Close button.

6. Open Logic Editor
7. Under Project > Variables & FB Instances, double click on Derived Variables and view Custom field.
