How to open the hardware configuration on a HMI programmed with EOTE?

Issue

It is not clear how to open the hardware configuration on a physical HMI programmed with EcoStruxture Operator Terminal Expert

Product Line

EcoStruxture Operator Terminal Expert

HMI running EOTE, EOTE Runtime

Resolution

There are 2 options to try and open the hardware configuration on an HMI running EOTE

[Option 1]

Display with Touch Gestures

Within 0.5 seconds, touch the top-right then bottom-left corners, or the top-left and bottom-right corners (within a 40 pixel area) of the screen

This option can be enabled / disabled from the settings as follows.

1/ In the Project Explorer window, from [System Architecture] click [Target01].

2/ In the Properties window, go to [Function] tab ➞ [Options] tab ➞ [Preference].

[Option 2]

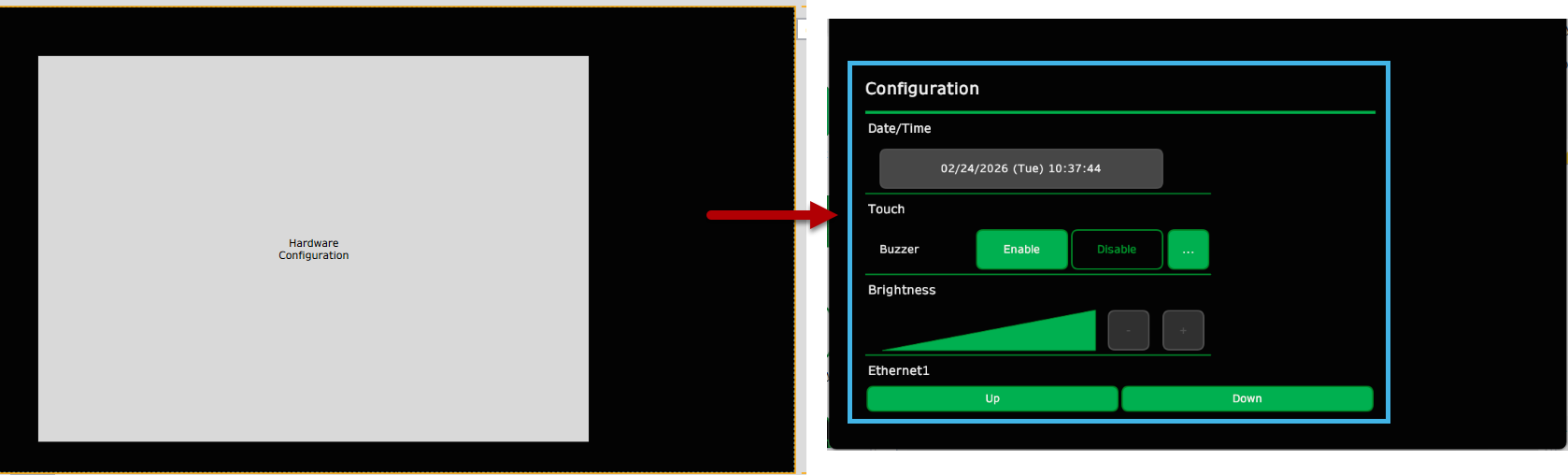

Display with Hardware Configuration object on a screen

Note: The size of the object is the size of the Hardware Configuration screen. It is not a button.
