What information is available about the SRV36BP-9A, SRVS36BP‑9A, SRV36RLBP-9A and SRVS36RLBP-9A?
Issue:
What information is available about the SRV36BP-9A, SRVS36BP‑9A, SRV36RLBP-9A and SRVS36RLBP-9A?
Product Line:
SRV36BP-9A, SRVS36BP‑9A, SRV36RLBP-9A, SRVS36RLBP-9A?
Environment: All serial
Answer :
The SRV36BP-9A, SRVS36BP‑9A, SRV36RLBP-9A and SRVS36RLBP-9A battery pack is compatible with the Easy UPS 1 kVA range.

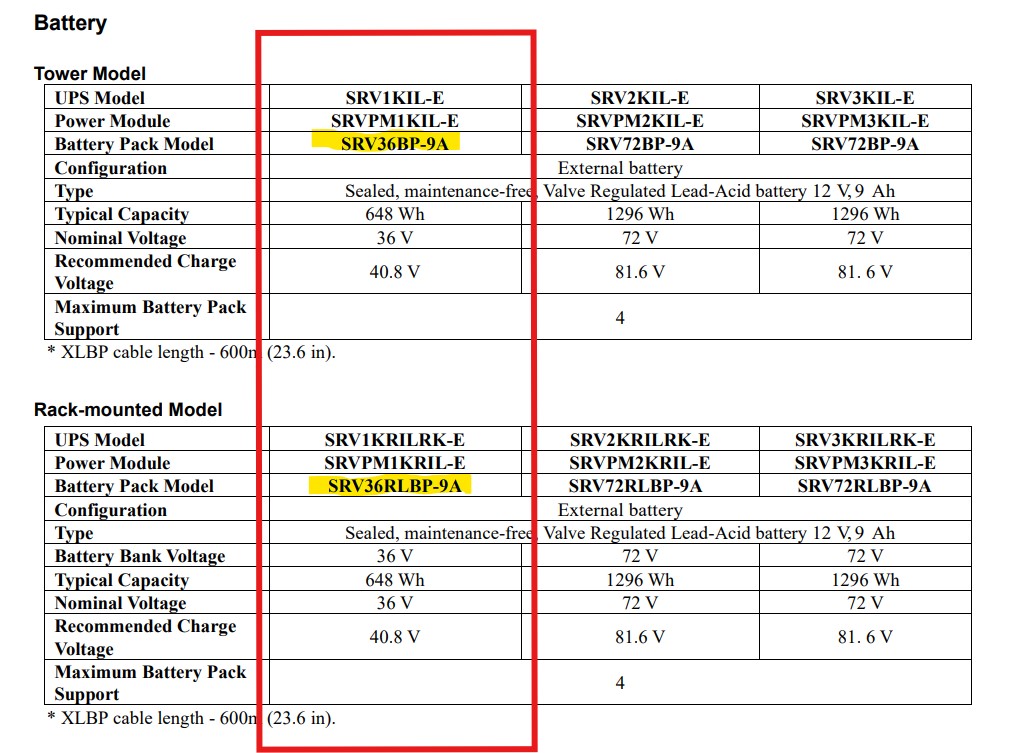

Please refer to the specific UPS model that the SRV36BP‑9A supports below.

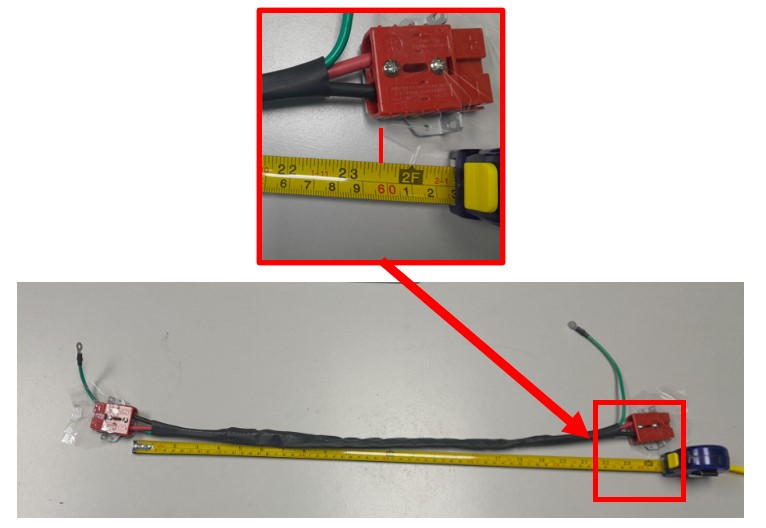

See image below showing the actual measurement of the battery cable length (23.6 in).

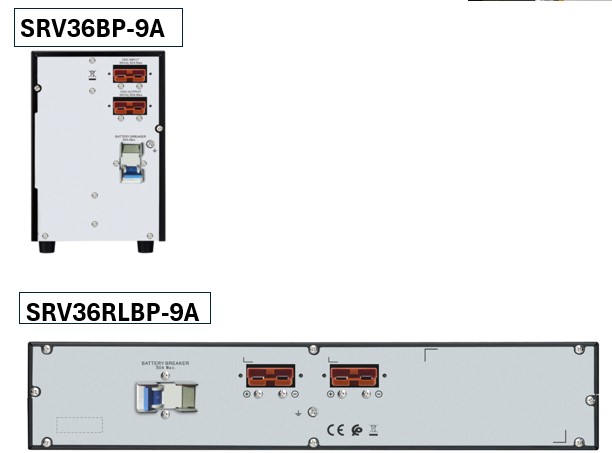

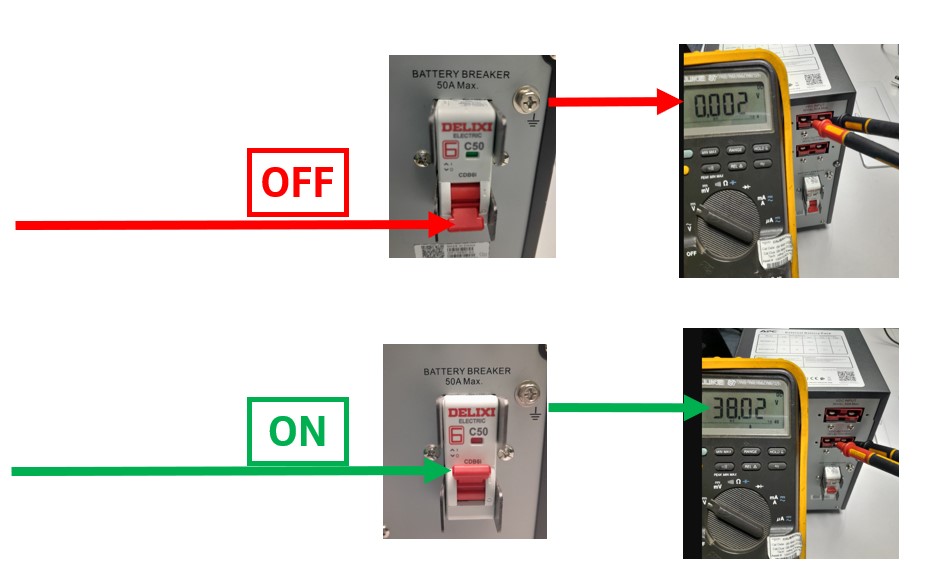

The SRV36BP-9A, SRVS36BP‑9A, SRV36RLBP-9A and SRVS36RLBP-9A has a battery breaker on the back with a maximum rating of 50 A. If you want to activate the voltage at the connectors, you need to switch it on.
see image below:

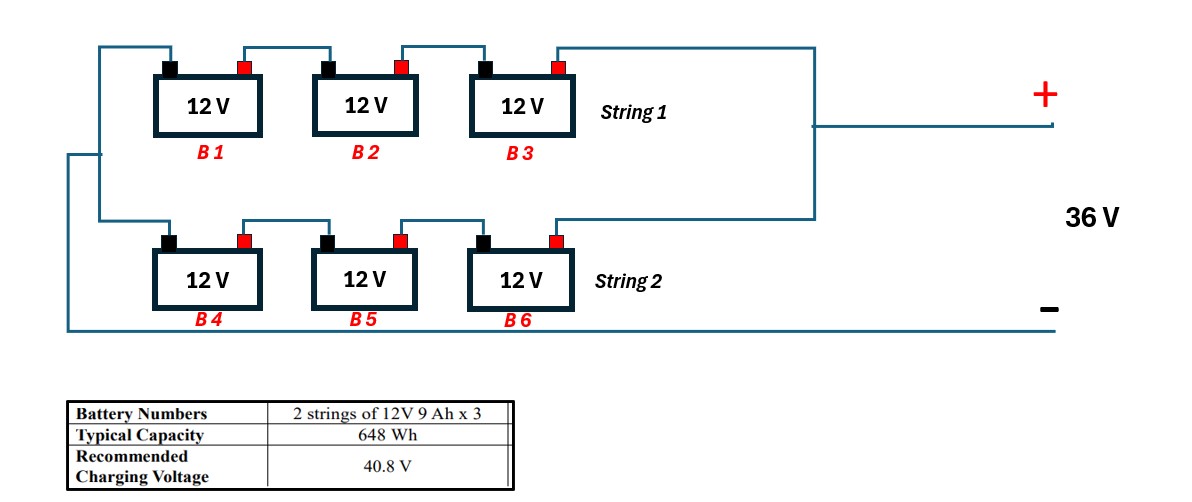

Below is a diagram illustrating the internal battery connections of the SRV36BP-9A, SRVS36BP‑9A, SRV36RLBP-9A and SRVS36RLBP-9A . Consists of 6 individual batteries, each rated at 12 V DC.
For additional information, please refer to the link below:
SRV36BP-9A
SRV36RLBP-9A
SRVS36RLBP-9A
https://www.se.com/eg/en/product/SRVS36RLBP-9A/easy-ups-online-srvs-rackmount-battery-pack-for-1kva-extended-runtime-model-36v/
