Discover EvoPact SF
Discover EvoPact SF
Highly rated in electrical installations

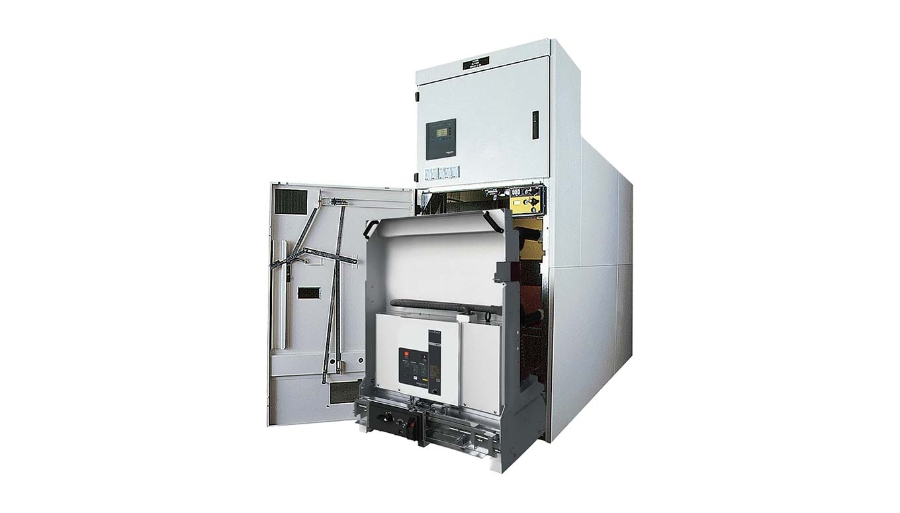

EvoPact SF comes with a wide range of high-performance devices reliable in operating on all 5 continents.EvoPact SF cumulates 45 years of experience in motor-charged spring stored energy operating mechanisms out of which 1,200,000 units are in operation.EvoPact SF range comes with many versions, including a cradle for retrofit and new panel integration.
Benefits of EvoPact SF
Benefits of EvoPact SF
Simplicity
Enhance Safety
Reliability
Features
Features
Facts about EvoPact SF
Range of circuit-breakers up to 40.5 kV: • Fixed switchgear left or right MV connection, side or front operating mechanism • 3 mechanically linked separate poles, built into a "sealed pressure system" type insulating enclosure containing low-pressure SF6 gas • Manual stored energy operating mechanism • Nominal current from 400 to 3150 A • Short-circuit current from 12.5 to 40 kA • SFset: circuit-breaker with self-contained protection chain incorporating a VIP control unit operating without an auxiliary supply source
Optional: • Electrical operating mechanism • Supporting frame equipped with rollers and ground fixing brackets for a fixed installation • Keylock for locking the circuit breaker in an open position • Pressure switch • 42-pin Harting-type LV connector
Applications
Infrastructure
Explore moreOil and Gas
Explore moreIndustry
Explore morePower generation
