To export a system which is currently open in Easergy /S1 Studio:
- Click the File > Export System or export system elements... menu option

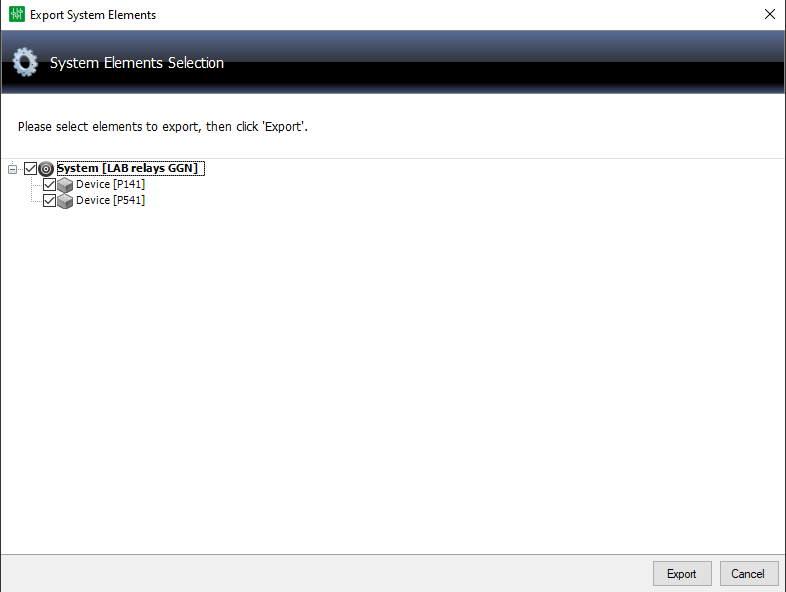

- The Export System dialog box opens

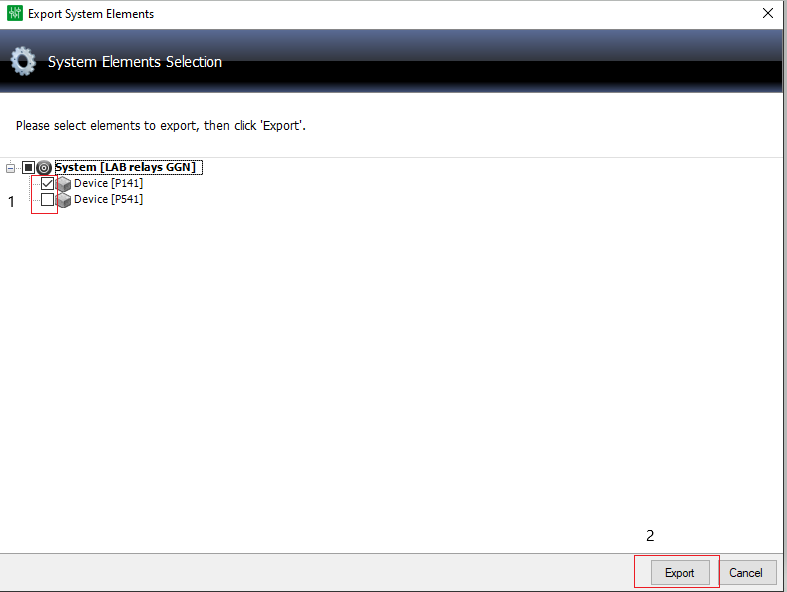

- tick the box of the relay elements you want to export.
To export the ticked elements to a file, click the Export button - Use the dialog box to go to where you want to save the exported data; then type a suitable filename to save this as a new file. Then share the saved file.
