Test facilities at GIGA Labs

Test Voltage : Upto 10 Volts Line-Neutral
Test Current : Upto 10000A continuous
Regulation : Automatic , 0.5% ~ 2%
Phases: 3
Modes : 3Phase, 2Phase (for 1P testing)
Control Modes : Continuous, Cyclic

Test Voltage : Upto 440V ,AC
Test Current : Upto 10KA , AC
Modes : 3Phase, 2Phase , 1Phase
Duty cycle: upto 150 msec

Voltage : Upto 690 Volts Line-Line

Current : Upto 630A

Duty cycle : 100% upto 63A, 33% upto 630A

Controller : NI platform

Modes : 3Phase, 2Phase & 1Phase.

Capacity : 3 Samples

Rated Current : Upto 125A
Residual current : 0.2mA to 500A
Pulsating DC component test facility

Current: 0.5 A to 125 A
Residual Current Range: 6mA to 1000mA
Duty cycle: Continuous
Phases: 3 Phase AC
Sample Capacity: 10 Samples simultaneously

Maximum load upto 300N
Automated test bench with linear and rotary operation

Capability : upto IK 10
Fixture type :Pendulum and Spring

Maximum load for Compression: 700N

Maximum load for Tension: 500N

Typical Application: To measure Torque Vs Angle, Force Vs Displacement

Flexion test for terminal reliability
Pull out test

Chamber Capacity: 1000Ltrs
Loading threshold: 800mm
Temperature range: Ambient to +50˚C

Temperature Range : -70°C to 180°C
Humidity Range : 5%RH to 95%RH
Ramp Rate : 3°C/Min
Working Volume : 800X1000X800 mm
Program mode: Yes

Temperature Range : 25°C to 300°C
Ramp Rate: : 5°C/minute (max)
Cubicle (Inside space) : 600X600X600 mm
Damper facility available

Probe test : IP2X , 3X 4X
Dust chamber : IP 5X and 6X
Sample size : upto Height - 1cubic m
Standard : IEC 60529

Water test facility : IP X1 to X6 & UL 50E standard
Sample size : upto Height - 2.2m

Frequency Range: 9kHz to 30MHz
LISN 1: 3 PH,400VAC, 690VDC,200A,
150kHz to 30MHz
AC Supply:3 Phase 100A, 440V, AC Filtered Supply

IEC 61000-4-8
Test Range: 50A/m
AC Supply:3 Phase 60A, AC Supply

ETS-Lindgren 3 meter Space Saver Chamber for Pre-Compliant RE
Frequency Range : 30MHz –1GHz
Antenna Mast :Scan up to 2 meters
Load:1000kg
Lab Dimensions :7.5m (L) x 3m (W) x 3m (H)
Probe Set for E & H near field Emission 100kHz –2GHz
AC Supply: 3 Phase 60A, 0-277 / 480V, AC Filtered Supply ,50A,1000V DC Filtered Supply

ETS-LindgrenRFShieldedRoom
Test Facility 1: 30kV Air and Contact Discharge
Test Facility 2: 16.5kV Air and 10kV Contact Discharge
AC Supply:3 Phase 60A, 0-277 / 480V, AC Filtered Supply
Single Phase 30A,230V, AC Filtered Supply

4.5kV Burst on Power lines with 10A CDN,
4.0kV Burst on data & signal lines using
capacitive coupling clamp
AC Supply:3 Phase 60A, 0-277 / 480V, AC Filtered Supply
Single Phase 30A,230V, AC Filtered Supply
50A,1000V DC Filtered Supply

Test Facility
1.2/50us –8/20us, 6.0kV Combination wave & 5us,100kHz,6.0kV Ring wave
with Inbuilt CDN 1 Phase 16A 300VAC & 300VDC.
6.0kV Surge & Ring wave on I/O lines(Unsymmetrical Unshielded)
Surge as per Fig.9 of IEC 61000-4-5 &
Ring wave as per Fig.8 of IEC 61000-4-12 Max 240VAC & 200VDC, 3A per line
AC Supply:3 Phase 60A, AC Supply

Frequency Range : 150kHz -80Mhz (230MHz)
Test Voltage : 25V with CDN’s & 10V with EM Clamp
13 Possible configuration of CDN’s
AC Supply : 3 Phase 60A, AC Supply

Accurate and Reliable 3D printing with ASA & ABS Material.

Sheetmetal Component prototyping with aid of Press brake and EDM wire cut technology.

Copper and Aluminum bus bars with aid of Press brake and Bus bar bending Machine.

Bus bars up to 12mm can be processed.

Model : S8APO MC120 HD

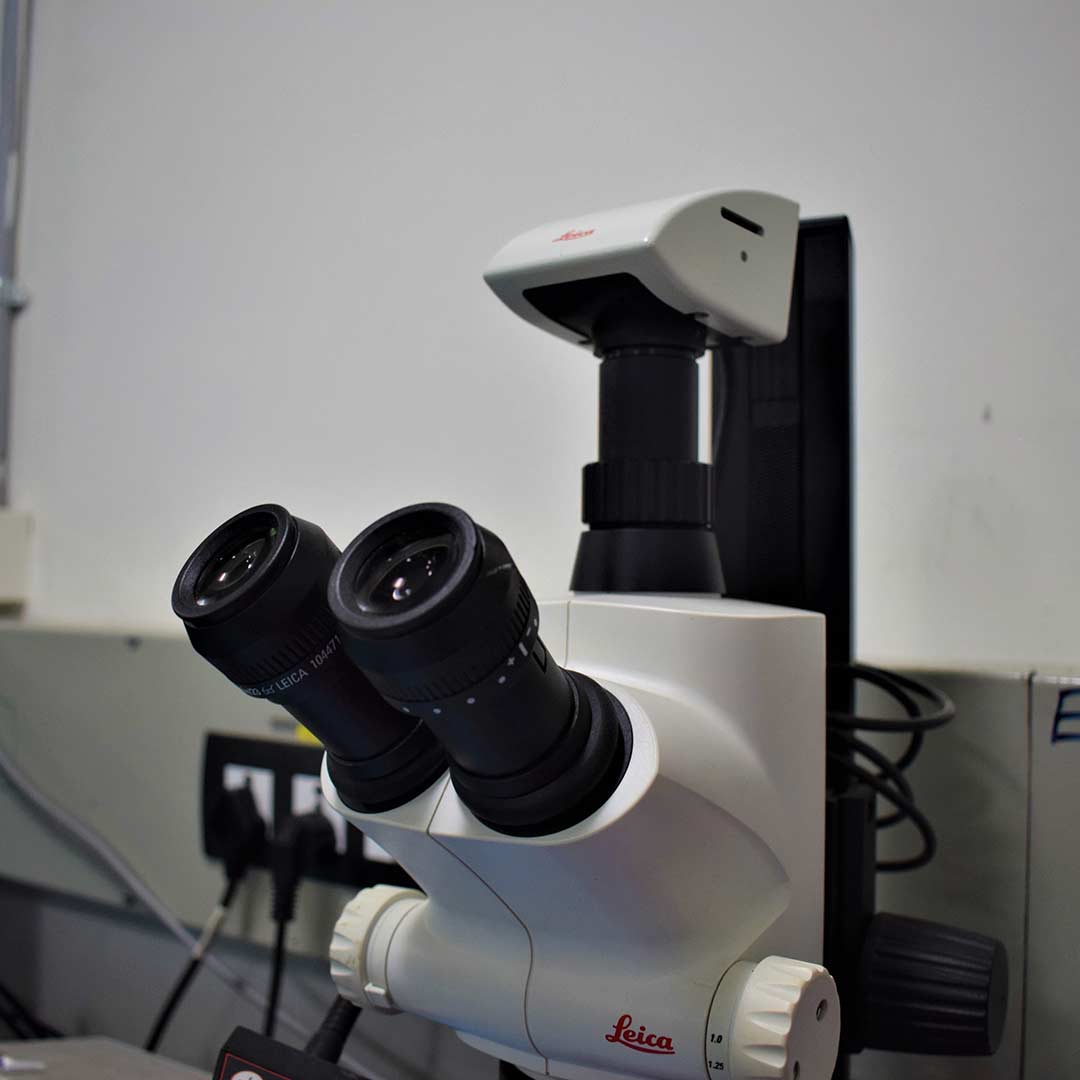

Make : Leica
Features :
• Apo-chromatic 8:1 zoom with magnification 10x-80x
• Fast, accurate inspection
• 80x magnification at 75 mm working distance
• 38° angle eye tubes
• Fluorescent ring light Supply
