Issue:
Joint tie channel connector for bus way AP508G10
Product Line:
I-line Busway
Answer:
AP508G10 is an old I-Line I busway and is obsolete and no longer available. We no longer offer the tie channels for this product. The End Closure (shown in the attached photo) is for I-Line II busway and is not applicable on the existing AP508G10.

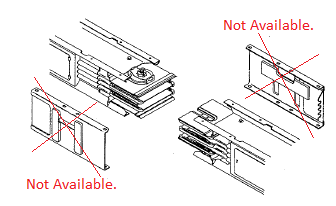

Figure 1: End Closure not available for old I-line I busway
The End Closure is available for the AP508G10. See below. The catalog number is ACP5EC.

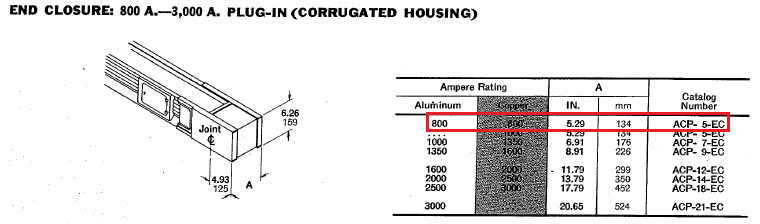

Figure 2: End Closure selection
