Issue: I have a high inrush current application like a motor starting and the long time start or short time start Orange alarm pop up message keeps coming on. How do I auto acknowledge those alarms?
Product Line: Masterpact MTZ Micrologic X Control unit
Environment: Micrologic X Firmware Version 004.107.000 and above
Resolution:
If you want to automatically acknowledge Orange Alarm pop up messages on the Micrologic X display such as long time Ir start or short time Isd start, use the auto acknowledge feature available in Firmware Version 004.107.000 and above.

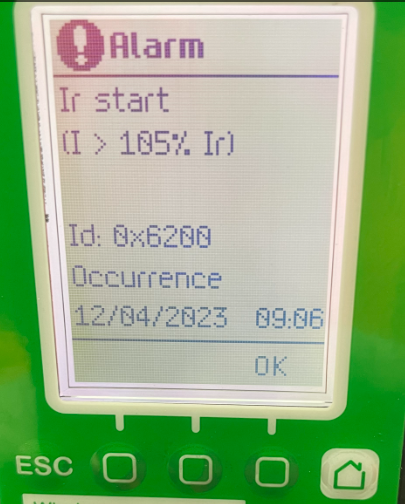

Example Orange alarm pop up message:
Micrologic X Firmware release notes:
HMI Configuration of Auto Acknowledge:
Product Line: Masterpact MTZ Micrologic X Control unit
Environment: Micrologic X Firmware Version 004.107.000 and above
Resolution:
If you want to automatically acknowledge Orange Alarm pop up messages on the Micrologic X display such as long time Ir start or short time Isd start, use the auto acknowledge feature available in Firmware Version 004.107.000 and above.
Example Orange alarm pop up message:
Micrologic X Firmware release notes:
HMI Configuration of Auto Acknowledge:
