Discover Canalis
Discover Canalis

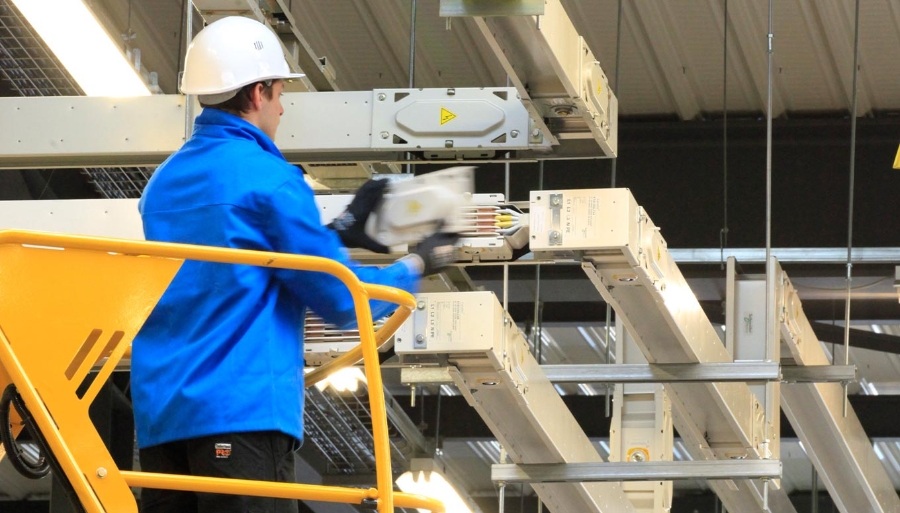

• Modular busbar trunking system, delivering maximum flexibility of power distribution and lighting supply • With hot-pluggable tap-offs, reconfigure your distribution in a matter of minutes • Adapt to evolutions of the building and of energy usage without powering off • Reduce the size and ground footprint of the power switchboards by decentralising the protections into tap-offs located under ceilings • Suitable in all types of buildings
Benefits of Canalis
Benefits of Canalis
Standard compliance
Certified and compliant with IEC 61439-6 standard by independent laboratories: ASEFA, LOVAG.
Flexibility throughout the lifecycle
Dedicated mechanical support systems ensure simplified Canalis installation and reduced installation time by up to 50%. Loads can be easily disconnected or added without halting the complete production, allowing a fast upgrade.
Environment-friendly
Green Premium labelled. Free of hazardous substances with well-documented end-to-end environmental impact. Electromagnetic radiations are minimised. Reconfiguration for reuse is possible.
More functionalities
Tap-off unit kits ensure safe monitoring of load distribution and equipment. These are also fully compatible with protection devices.
Software tools: Make the most out of Canalis
Features : Canalis KBB
Features : Canalis KBB
General specifications
• Max operational voltage / Rated insulation voltage: 690 V AC • Degree of protection (IEC 60529): IP55, IK10 • Insulating material: halogen-free • Coating: pre-lacquered white RAL 9003
Line components
• Distribution busbars: either of • Single-phase + neutral + protective earth • Triple-phase + neutral + protective earth • Single-phase + single-phase + neutral + protective earth • Single-phase + triple-phase + neutral + protective earth • triple-phase + triple-phase + neutral + protective earth • Current ratings (Inc): 25 or 40 A per busbar • Rated permissible peak current (Ipk): 4.4 or 9.6 k • Length: 2 or 3 metres • With or without lighting digital control bus: DALi and/or KNX
Outputs: tap-off units or connectors
• Inter-distance: 0.5, 1, or 1.5 metres • Hot-pluggable • Rated current: 10 or 16 A, single-phase or triple phase • Tap-offs made to host Acti9 circuit-breakers • With or without a digital lighting control
Standards
• Compliant with IEC61439-1 and -6, certified by ASEFA and LOVAG • Certified for application in marine environments by: • American Bureau of Shipping • Bureau Veritas • Det Norske Veritas • Lloyd’s Register of Shipping • Registro Italiano Navale e Aeronautico
Applications
Applications
Data centres
Explore moreIndustrial workshops
Explore moreSemiconductor plants
Explore more
Hospitals
Explore moreCommercial buildings
Explore moreOil and gas industry
Explore more
