Fan Controller Unit

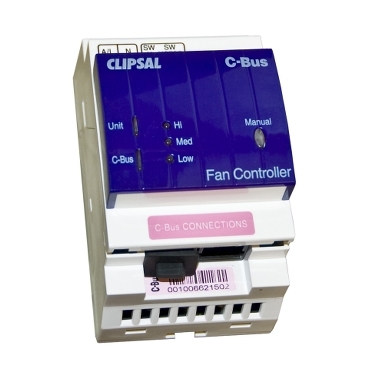

The C-Bus DIN Fan Controller unit is a DIN rail mounted C-Bus output device that provides single-button speed control for a single ceiling fan.
Overview
Features
The Fan Controller provides C-Bus control of a ceiling fan for up to three speeds (Low, Medium and High) and off and can be displayed in C-Bus DLT keypads. Control can be included in scenes and schedules. Fan controllers are Master/slave configurable, so multiple fans can be controlled from a single switch using multiple controllers. The fan controller includes a programmable ‘kick-start’ feature that ensures the fan runs ‘direct on-line’ for a preset time before dropping back to the desired speed.
Key Features- High temperature rating
- Local status indicators
- Powered from C-Bus
- Double-pole switching
- Optional direct on-line (DOL) start
- Software interlocking between speeds (with adjustable changeover times)
- Single button (stepping) control through speeds
- Local manual override buttons to assist with commissioning
- Fan speed displayed on DLT-style switches
- Control can be included in scenes and schedules
- Master/slave configuration, so multiple fans can be controlled from a single switch using multiple controllers
