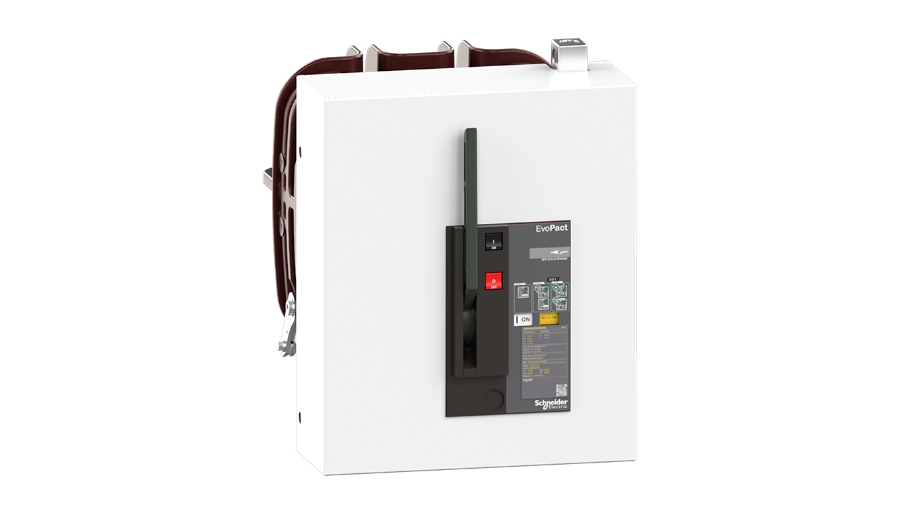

Discover EvoPact LF

Benefits of EvoPact LF

Simplicity

• Compact and simple design. • Ease of installation for retrofit and new panels integration. • Insulating and conductive materials easy to separate and recycle. • Specially adapted to the retrofit market and upgrading of old installations.
Safety

• Safety membrane in the insulating enclosure containing the circuit-breaker pole(s). • Low SF6 pressure during breaking of rated current. • Continuous monitoring of the gas pressure internally within the poles.
Reliability and efficiency

• Soft breaking without chopping currents. • Breaking all types of capacitive or inductive current without over voltages. • SF6 breaking conforming with the most demanding specifications recommended by the IEC. • Seismic qualification suited to nuclear, thermal and petrochemical applications.

Features

Facts about EvoPact LF

Range of MV Circuit-Breakers up to 17.5 kV: • Fixed or withdrawable switchgear with front operating mechanism. • 3 poles integrated in a "sealed pressure system" type insulating enclosure, filled with SF6, and equipped with a pressure switch. • Stored energy electrical operating mechanism for remote opening and closing of the circuit-breaker. • Nominal current from 630 to 5000 A. • Short-circuit current from 25 to 50 kA. Option: • Supporting frame equipped with rollers and ground fixing brackets for a fixed installation. • Keylock for locking the circuit-breaker in open position. • 42-pin Harting type LV connector.
