Video: Where can I check the Input Output Map on the ATV320 drive?
Issue:
Checking Status of Digital Inputs on ATV320 drives
Product line:
Altivar 320, ATV320
Environment:
All models in range
Cause:
Troubleshooting and testing
Resolution:
The ATV320 has the ability to check the status of the Logic or Digital inputs.
On the default display navigate to NON > ION > LIA > LISI.

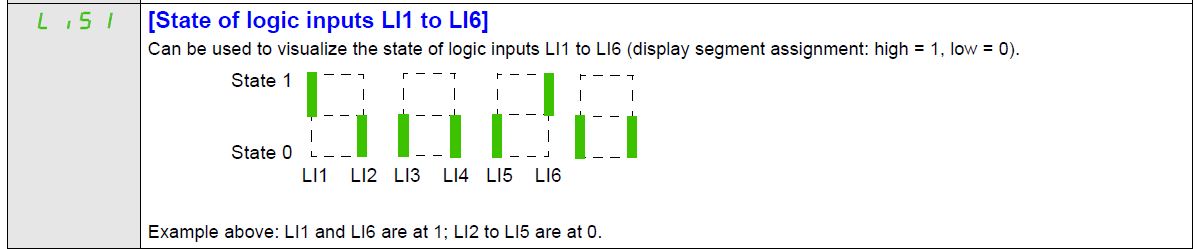

On this screen you will see the logic input state and be able to determine if the inputs are opening and closing as needed.
Checking Status of Digital Inputs on ATV320 drives
Product line:
Altivar 320, ATV320
Environment:
All models in range
Cause:
Troubleshooting and testing
Resolution:
The ATV320 has the ability to check the status of the Logic or Digital inputs.
On the default display navigate to NON > ION > LIA > LISI.
On this screen you will see the logic input state and be able to determine if the inputs are opening and closing as needed.
