Issue:

UPSs are generally installed and placed in places not easily seen by a user (i.e., under a desk, in a wiring closet, etc). Therefore, in order to provide proactive warnings of changing UPS and power conditions to users, APC's UPSs have audible tones. An occasional single beep from the UPS is normal UPS operations. This means that the UPS is protecting the load. Below is a partial list of audible indicators and possible meanings. Please refer to your Back-UPS user manual for the complete list of audible tones.

Product Line:

All Back-UPS Families

Cause:

1.) The Back-UPS product is operating on battery power - This alarm indicates that the UPS has transferred from On Line operation to On Battery operation. The Battery Power Supplied outlets are now battery-powered.

2.) The Back-UPS product has entered a low battery condition - This alarm indicates that the UPS has reached a Low Battery condition and will soon shut down. The UPS can only operate on battery for a limited amount of time. In order to protect the unit's batteries from discharging too much, the UPS will shut down and turn off its output. To warn you that the unit will soon shut down, the UPS will sound this alarm 2 minutes before the actual shutdown. With optional APC management software, 2 minutes can be changed to give you more of a warning of impending shutdown. If you hear this tone, you should immediately gracefully shut down your operating system to prevent data loss or corruption.

3.) Capacity Overload - This alarm indicates that the UPS has detected an Overload condition. If this alarm is sounded, try removing non-essential equipment. The alarm will remain until the load is reduced. To determine if your UPS is capable of handling the equipment you want to protect, visit APC's UPS Selector .

4.) Unit failed a self-test - Most Back-UPS products perform an internal self-test every 14 days, checking the integrity of the battery. If the battery fails the self-test, the "Replace Battery" LED will illuminate. The Replace Battery LED is a WARNING that the battery may be near the end of its life, and replacement is typically recommended within 2-4 weeks.

5.) Disabling UPS audible alarm tones  - When using the PowerChute Personal Edition software, the UPS audible alarm tones can be disabled. (Not available on all Back-UPS Models)


Resolution:
1.) The Back-UPS product is operating on battery power
Tones:
• 4 Beeps Every 30 Seconds (the amber On Battery LED will be illuminated)
. 1 beep every 5 seconds

- If the input voltage is determined to be unsafe for your computer equipment, the UPS will transfer to On Battery. The alarm will stop once the unit returns to On Line operation. Please refer to the technical specification section of your user manual for the acceptable voltage window. Occasional transfers to On Battery should not be a matter of concern, but rather, should be considered normal operation. The UPS is trying to provide clean, safe, and reliable power. If your unit shipped with APC management software it may be possible to change the default acceptable voltages that the unit shipped with. Please see the help section of the APC management software for instructions to do this.

- If the Frequency deviates + or - 5 % this will also cause a Back-UPS product to transfer to battery power. Frequency distortions are most commonly caused by generators that are undersized. Always make sure a generator is 3 to 5 times the size of the total load attached to ensure it can maintain a steady output frequency. There is no way to change the +/- 5% deviation.

- If the shape of the incoming power is considered "too dirty", some Back-UPS products may transfer to battery power. This is most likely the problem if you have already confirmed that the input voltage is within acceptable limits. Most Back-UPS products have the ability to change their sensitivity to the shape of the input power from high to medium or even low. Please see your user manual for details as to how to adjust this setting.

Note: If the power disturbance is brief, you may only hear the unit beep once or twice.

2.) The Back-UPS product has entered a low battery condition
• Continuous Beeping (the amber On Battery LED will be illuminated)

Note: This graceful shutdown will occur automatically if the APC management software is being used.

3.)Capacity Overload
• Constant, Solid Tone (the red Overload LED will be illuminated)

If the Back-UPS emits a constant flat tone and reducing the load does not solve the problem please try the following steps:

1) Turn the UPS off.
2) Unplug all the equipment from the UPS
3) Unplug the UPS from the wall outlet
4) Push and hold the power on button (you will hear two beeps) release the button before the second beep ends.

At this point, the UPS will either go into battery and work fine or it will continue to emit a constant flat tone. If the unit still emits this tone, it is an indicator that the UPS was permanently damaged due to the overload. In some failure conditions, the UPS may continue to emit this constant tone even when removed from utility power. To immediately silence this alarm during this condition, the internal battery must be disconnected via the UPS battery access door. Please contact APC Support for replacement options or visit APC's Replacement UPS Selector.

4.) Unit failed a self-test
• Continuous Beeps for One Minute; Repeated Every 5 Hours (Replace Battery LED will be illuminated)

Step 1:
Confirm that the Back-UPS product's internal battery has been connected. The instructions on how to do this are in the user manual.

Step 2:
Verify that the UPS is not being overloaded (refer to the Back-UPS products User Manual for the watt capacity of the battery outlets). APC recommends plugging only the computers and monitors in the battery-powered outlets, other peripherals should be plugged into the "Surge Only" outlets labeled on the back of the UPS. Outlet strips or surge protectors should NEVER be plugged into any UPS. Remove any excessive load from the UPS. On the same note if the Back-UPS product is close to being fully loaded (>80% of the battery outlet’s watt capacity) it is not recommended that the Back-UPS product be used as a master on switch to turn on your equipment. Instead, power the Back-UPS product on letting it complete its self-test before turning on the connected equipment. It is also acceptable to leave the Back-UPS product on and never turn it off.

Step 3:
Disconnect the external battery pack if one is in use. A self-test should be performed with the UPS fully charged (charging without interruption or transfer to battery for 5 hours) and normal load attached. To do this, make sure the Back-UPS product is plugged into the wall, push the On/Off button and hold it for approximately 4 seconds until a long tone is heard. The "On Battery" (yellow) LED will illuminate while the "On-Line" (green) LED will flash. This test will last about 15 seconds and will yield one of 2 results: If the Replace Battery LED stays lit (the unit will beep/chirp for 1 full minute indicating a failed test) the battery should be replaced. If the replacement battery LED turns off, then the battery does not need replacement.


Step 4: (Proceed only if "step 3" does not clear the Replace Battery LED)
The Back-UPS product comes with a 2-year warranty which includes the battery. If the Back-UPS product was purchased within 2 years, please contact APC Support and reference the steps performed in this document. Also, include the exact part number and serial number found on the bottom of the Back-UPS RS/XS.

If the Back-UPS product is outside of the factory warranty, use the UPS Replacement Battery and Upgrade Selector which will offer out-of-warranty options for replacing an exhausted battery pack or upgrading to a new APC Back-UPS.

5.) Disabling UPS audible alarm tones.

Managing UPS Audible Alarm Settings via On-Device Mute Feature (Back-UPS ES 'M' Series and Back-UPS Pro)

Using Quick Mute on APC Back-UPS ES M-Series to temporarily silence alarms:


Silencing Audible Alarms on APC Back-UPS Pro via Mute Button:


Managing UPS Audible Alarm Settings via PowerChute Personal Edition
Step 1:
Connect the UPS's RJ45 to USB communications cable between the UPS and the computer. Ensure the USB cable is inserted directly into one of the host computer's native USB ports. Do not use a hub or after-market USB cards to establish communications.

Step 2:
Once the computer has detected the "New Hardware Device", see Video: Installation instructions for PowerChute Personal Edition 3.0.2 or 3.1  onto a currently supported operating system.

Step 3:
Once the software has been properly installed, the UPS's audible alarms can be disabled by accessing the "Notifications Configuration" section found under the "Configurations" Tab and altering the "Battery Back-UPS Alarm" section. Here the alarms can be enabled for all events, disabled for all events, and disabled during specific UPS conditions or during customer-specified time periods.

"},{"Title":"Video: How can a factory reset be performed on an ATV320?","UrlName":"FA318564","LastModifiedDate":"15/05/2026","products":"Altivar 320","score":null,"firstpublisheddate":"30/06/2017","answer":"

Resolution:
To perform a factory reset from power up;
Enter on dial.
Scroll down to CONF menu and enter.
Scroll down to FCS- and enter.
Scroll down to FRY- and select all if you would like to reset all parameters (including function blocks). The two vertical lines to the right of 'all' should move up.
ESC back to FRY-.
Scroll down to GFS and enter.
Scroll down to yes and enter (hold for 3 seconds).
The parameter GFS should go to NO automatically.  This is when you know factory reset has been done.

\n

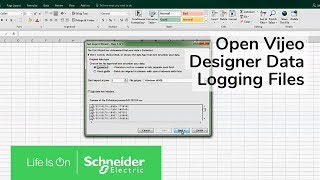

\n\n\n\n\n\n\n\n"},{"Title":"Video: How to open a Vijeo Designer CSV datalogging file in Microsoft Excel.","UrlName":"FA317996","LastModifiedDate":"24/10/2022","products":"Vijeo Designer","score":1.0014471780028944,"firstpublisheddate":"20/06/2017","answer":"Issue:
How to open a Vijeo Designer CSV data log file in Microsoft Excel to view individual columns.

Product Line:
Vijeo Designer

Resolution:
This video demonstrates how to open a comma separated CSV file in Excel to separate the data into individual columns.

"},{"Title":"Video: Firmware upgrade on a PM800, PM5000, PM200, PM700, CM4000/T, CM3000 and CM2000 series meters using DLF-3000","UrlName":"FA237920","LastModifiedDate":"29/04/2026","products":"PM5000 series, ION7550/ION7650, PM8000 series, CM4000 series","score":1.0003617945007235,"firstpublisheddate":"10/12/2014","answer":"

Issue
How to upgrade the firmware on a PM800, PM5XXX, PM200, PM700, PM600, CM4000/T, CM3000 and CM2000 series (PowerLogic) meter.

Product Line
PM600
PM700
PM800
PM5000
CM2000
CM3000
CM4000

Environment
Firmware Upgrade

Cause:
Customer would like to know how to access and download firmware on various meters.

Resolution
*Warning: The firmware utilities listed here can cause permanent damage to your product if applied incorrectly. Before downloading any firmware updates, verify the firmware you are downloading is appropriate for the specific model number of your product. If you have any doubts, contact Technical Support for guidance.*

*Warning: Devices should be disconnected from all monitoring software before performing a firmware upgrade*

​Helpful Information:
OS - Operating System
RS - Reset System
DL - Download System
LL - Language Library

Reference the embedded video and attached documents for detailed instructions when using DLF-3000 to upgrade CM4000, PM800, and PM5000 series meter firmware.

The attached procedure is specific to upgrading firmware on the PM800 and PM5000 meters, however the concept and guidelines will be similar for the following meter types in the PowerLogic family:
CM2000 Series
CM3000 Series
CM4000 Series
PM600 Series
PM800 Series
PM5000 Series

\n

• To upgrade a CM4000/4250, load the firmware files in the following order using DLF-3000:

\n

1 - CM4_DL_00000.fw
2 - CM4_OS_00000.fw
3 - CM4_LL_00000.fw

If it is a CM4000T, install CVMT_OS_XXXXX.fw after upgrading the CM4_LL_XXXX.fw file.

\n

• To upgrade CM3000 series, load the firmware files in the following order using DLF-3000:

\n

1 - CM3_DL_00000.fw
2 - CM3_OS_00000.fw
3 - CM3_LL_00000.fw

DLF-3000 software:
DLF3000 Download *It is important to note that you need to right click and run DLF3000 as an administrator.*

CM2000 (v17.011):
PowerLogic CM2000 (CM2) Firmware version 17.011 (FA221408)

CM3000 (v15.030):
CM3 DL 12.200
CM3 OS 15.030
CM3 LL 14.170

CM4000 (v16.010) and CM4 CVMT OS_11.210:
CM4 DL 13.000
CM4 OS 16.010
CM4 LL 14.170
CM4 CVMT OS 11.210
​​​​​
PM210 (v3.150):
PM210 firmware

PM600 Firmware:
PM600 OS 23.102

PM710 (v3.150 and v3.160):
PM710 firmware (V3.150)
PM750 firmware (V3.160)

PM800 Series meter (v12.700):
PM800 firmware

The following link is to the latest firmware for a PM5100 Series meter (v2.1.1 and v2.2.1):
PM5100 firmware

Firmware version 2.xx is not compatible with firmware version 1.xx. The following link is to the latest V1.xx firmware for a PM5100 Series meter (v1.5.4 and v1.6.4):
PM5100 V1 firmware

PM5300 (v2.1.1 and v2.2.1):
PM5300 firmware
Firmware version 2.xx is not compatible with firmware version 1.xx.The following link is to the latest V1.xx firmware for a PM5300 Series meter (v1.5.4 and v1.6.4):

PM5300 V1 firmware

PM5560 Series meter that used DLF-3000 for the upgrade (v1.01.0):
PM5560 firmware *All future upgrades past v1.01.0 use the FTP server for the upgrade. See firmware upgrades - PM5500 or follow FA299853.*

"},{"Title":"Video: How to program an ATV320 drive to accept start stop from terminals and use AI3 4-20mA as speed control?","UrlName":"FA309006","LastModifiedDate":"29/07/2025","products":"Altivar 320","score":0.9931916853045653,"firstpublisheddate":"15/02/2017","answer":"Issue:
ATV320 drive to accept start stop from terminals and use AI3 4-20mA as speed control

Product Line:
Altivar 320, ATV320

Environment:
All

Cause:
Programming setup

Resolution:



From RDY, press enter.
Scroll to CONF and press enter.
Scroll down to FULL and press enter.
Scroll down to CTL menu and press enter.
Set FR1 to Ai3 and press enter.
Set CHCF to SEP and press enter.
Set CD1 to TER and press enter.
To scale the AI3 analog input,  go into I/0- (inputs and outputs) menu and press enter.
Scroll to AI3- and press enter.
CRL3 is your min AI3 value.
CRH3 is your max AI3 value.
For example 4-20 would require CRL3 be set to 4 and CRH3 to 20mA.

Note: "press enter" means push in on the dial one time, and "scroll down" means turn the dial clockwise. "},{"Title":"Video: SRT UPS reports Battery Charger Event, Event Code 142","UrlName":"FA338784","LastModifiedDate":"31/07/2025","products":"APC Smart-UPS On-Line","score":0.9411803672978537,"firstpublisheddate":"02/02/2018","answer":"Issue:

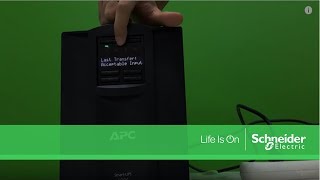

The UPS reports: Battery Charger Event – event code 142 on the UPS LCD display or in the NMC event logs



Product Line:
Smart-UPS SRT UPS Models excluding Smart-UPS Ultra models: SRTL2K and SRTL3K and SRTL5K

Cause:
This event may be caused by a blown charger fuse, or bad batteries.

Resolution:
To determine the cause of this behavior, perform the following troubleshooting steps:\n

• With the UPS input connected to AC mains, disconnect all the batteries in the system: all internal batteries and any external batteries, if used. Refer to the user manual of the appropriate SRT UPS model to disconnect the batteries.
• Using the UPS LCD display, navigate to the Status section, and in the Battery menu, select Voltage. Refer to the user manual of the appropriate SRT UPS model to navigate the UPS LCD menu.

\nNote: You do not need to perform measurements on the UPS charger or battery terminals.\n\n

• If the voltage displayed on the UPS LCD display is below the “Voltage level” (refer to the below values), the charger fuse is blown and the UPS requires replacement.
• If the voltage displayed on the UPS LCD display is at, or above, the “Voltage level, the batteries need to be replaced.

\nOnce the alarms are cleared, it is recommended to update the UPS firmware to the latest version. Refer to FA164737 for updating the UPS firmware.
 \n

Models	Voltage level
SRT Li-Ion 1-1.5kVA \t\t\tSRTL1000RMXLI(-NC) or SRTL1500RMXLI(-NC)	If under 48V, the UPS should be replaced. If at or above 48V, the battery should be replaced.
SRT Li-Ion 2.2-3kVA \t\t\tSRTL2200RMXLI(-NC) or SRTL3000RMXLI(-NC)	If under 48V, the UPS should be replaced. If at or above 48V, the battery should be replaced.
SRT 2.2kVA models	If under 80V, the UPS should be replaced; If at or above 80V, the battery should be replaced. \t\t\t
SRT 3kVA models	If under 100V, the UPS should be replaced; If at or above 100V, the battery should be replaced. \t\t\t
SRT 5-6kVA models	If under 200V, the UPS should be replaced; If at or above 200V, the battery should be replaced. \t\t\t
SRT 8-10kVA models	If under 200V, the UPS should be replaced; If at or above 200V, the battery should be replaced. \t\t\t

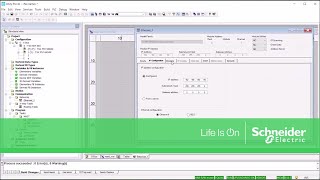

\n\n\n"},{"Title":"Video: How do I read data from a Modbus TCP device using the embedded Ethernet port on a Unity Premium PLC?","UrlName":"FA346361","LastModifiedDate":"07/10/2024","products":"Modicon Premium","score":0.8672731031631176,"firstpublisheddate":"17/10/2018","answer":"Issue:
Programming Modicon Premium PAC to Read Device Data via Ethernet Port

Product Line:
Premium, Unity Pro

Environment:
Unity Pro software

Resolution:



To read data from a Modbus TCP device using the Premium PLC with embedded Ethernet port , follow the steps below:
1. Create a Premium project with an embedded Ethernet port on the CPU
2. Create an Ethernet network under "communication" within the project browser
3. Double click on the newly created network and under the "IP configuration" tab, enter the desired IP address and subnet mask
4. Select the "messaging" tab and check the "XWAY profile" option.
5. Enter an XWAY address and IP address under the connection configuration section. The XWAY address comprises of a network and station number. The network number can be between 0 and 127 and the station number must be          between 100 to 163 for Modbus TCP messaging. Example of XWAY address is 1.101
6. Create a section and add the READ_VAR function block
In the example below, the Premium PLC is reading 5 words starting a 40400 in the remote device

READ_VAR (ADR := ADDR('{1.101}SYS'),
          OBJ := '%MW',                           (* Type of objects to read for Premium PLC: '%MW': internal words *)
          NUM := 400,                              (* Index of the first object to read. *)
          NB := 5,                                      (* Number of objects to read. *)
          GEST := %MW50:4,                  (* Exchange management table *)
          RECP => receive_buffer);          (* Word table containing the value of the objects read. The length of this array must be greater than or equal to NB*)

%MW52 := 20;  (* The third word of the management table is managed by the user which defines the maximum response time using a time base of 100 ms.*)

 \n

If this FAQ did not solve your issue, you can chat with us at chat with us  or e-mail us at customer.services@se.com to create a case with our Technical Support Team.

\n\n

If you are not located in North America, please contact your local Customer Care Center for assistance:

\nSupport | Schneider Electric Global (se.com)"},{"Title":"Video: Data Center Expert | Desktop Client Requirements, Download, & Installation","UrlName":"FA272226","LastModifiedDate":"28/01/2026","products":"SWDCEVMACT-DIGI, AP94VMACT, AP9465, AP9470, AP9475, Data Center Expert","score":0.7550241651421238,"firstpublisheddate":"06/10/2015","answer":"Issue:
Where can I find requirements and download the StruxureWare Data Center Expert desktop client software?

Product Line:
Struxureware Data Center Expert (DCE)
StruxureWare Central (SWC)
InfraStruXure Central (ISXC)

Environment:
Struxureware Data Center Expert (all versions)
StruxureWare Central (all versions)
InfraStruXure Central (all versions)

Cause:
In order to discover devices and do most of the configuration required for DCE, you need to download and install the client application to your local system.

Resolution:

System Requirements
Downloading
 \n

---

Minimum System Requirements for the DCE Desktop Client

Information!  This article only discusses downloading and installing the Desktop Client for the Data Center Expert software.  For instructions on deploying the Data Center Expert Virtual Appliance on VMware or HyperV, see knowledge base Video: Data Center Expert | How do I download and deploy the Virtual Appliance? .

The Data Center Expert Desktop Client (console) is a stand-alone Java application that runs on systems that meet the following requirements:\n

• A PC with a 1-GHz or better AMD/Intel processor running a 64-bit operating system: Microsoft® Windows® Server 2016 and 2019, Windows 10 and 11
• At least 2 GB of RAM and 20GB disk space
• Screen resolution should be set to at least 1024 x 768.
• Supported browsers: Edge; Mozilla® Firefox®; Google Chrome™  See https://community.se.com/t5/Data-Center-Expert-release-notes/Known-issues-in-DCE/ta-p/446734 for details about support for Internet Explorer and Edge

\n
NOTE: See the release notes for the most up-to-date information on system requirements.\n\n

---

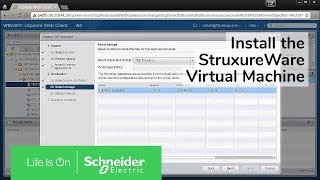

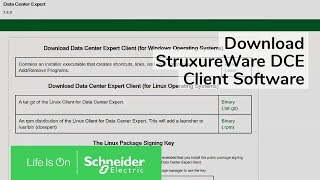

Downloading the Desktop Client



1) Open the DCE Appliance web interface by entering the IP address or hostname in a web browser.

2) In the upper-right corner will be an option to Download Client.
NOTE: In older versions, it may be on a different area of the web interface.

3) To continue you will need to Read and Agree to the license agreement.

4) Download the Binary.exe for the Desktop Client (application).

5) Run the downloaded executable file and follow the on-screen instructions.

6) Once the installation completes, you can launch to the Desktop Client using the Desktop Icon (if done during installation) or the Start Menu Option for Data Center Expert #.#.#.\n

---

NOTE:  Starting with version Data Center Expert version 7.9.3, the Window&#39;s Desktop client is available for download from Upgrade and VM download pages.  The upgrade page can be accessed through the EcoStruxure IT Entitlements Portal.  If you are unable to access the upgrades via the EcoStruxure IT Entitlements portal, please reach out to your local technical support."},{"Title":"Video: How to add a Data Model to Easergy Studio (MiCOM S1 Studio)","UrlName":"FA221295","LastModifiedDate":"15/01/2024","products":"MiCOM P849, MiCOM P841, MiCOM P54x, MiCOM P740, MiCOM P8xx, MiCOM P44x, MiCOM P341 and MiCOM P922G, MiCOM P53x, MiCOM P547, MiCOM P24x, MiCOM P11x, MiCOM P13x, MiCOM P14x, MiCOM P638, MiCOM P138, MiCOM P436 and MiCOM P438, MiCOM P64x, MiCOM P9xx, MiCOM S1 Studio, MiCOM P34x, MiCOM P72x","score":0.350729246693228,"firstpublisheddate":"08/12/2012","answer":"\n\n"}],"getPa":[{"Title":"What is the difference between SD and SDE for Compact NSX?","UrlName":"FA342652","LastModifiedDate":"21/03/2026","products":"Compact NSX <630","score":1.046763384638044,"firstpublisheddate":"31/07/2018","answer":"SD (trip indication) and SDE (fault-trip indication) are the indication contacts for compact NSX, but the function for trip are different.

SD (trip indication) indicates that the circuit breaker has tripped due to:\n

• an overload
• a short-circuit
• an earth fault (Vigi) or a ground fault (Micrologic 6)
• operation of a voltage release
• operation of the &quot;push to trip&quot; button
• disconnection when the device is ON.

\nThe SD contact returns to de-energised state when the circuit breaker is reset.

 SDE (fault-trip indication) indicates that the circuit breaker has tripped due to:\n\n

• an overload
• a short-circuit
• an earth fault (Vigi) or a ground fault (Micrologic 6).

\nComPacT NSX100/160/250 circuit breakers and switch-disconnectors\n\n\n\n\n\n"},{"Title":"What is the meaning of I2t ON (Max resettable time) and I2t OFF (Max break time) of Shot-time protection of Micrologic 2.0A/E, 5.0A/E, 6.0A/E and 7.0A","UrlName":"FA332973","LastModifiedDate":"25/10/2025","products":"Micrologic Trip Units, Micrologic Add-on Ground-fault Modules, Micrologic","score":1.0245948659113724,"firstpublisheddate":"30/11/2017","answer":"

Short-time protection

\n-  The short-time protection function protects the distribution system against impedant short-circuits.
-  The short-time tripping delay can be used to ensure discrimination with a downstream circuit breaker.
-  This function carries out true rms measurements.
-  The I2t ON and I2t OFF options enhance discrimination with downstream protection devices.
-  Use of I2t curves with short-time protection:
     -  I2t OFF selected: the protection function implements a constant time curve;
     -  I2t ON selected: the protection function implements an I2t inverse-time curve up to 10 Ir. Above 10 Ir, the time curve is constant.
-  Zone selective interlocking (ZSI).

The short-time and ground-fault protection functions enable time discrimination
by delaying the upstream devices to provide the downstream devices the time required to clear the fault. Zone selective interlocking can be used to obtain total discrimination between circuit breakers using external wiring.


Max resettable and max break times are the times linked to instantaneous protection.

&gt; Max resettable time is the time the breaker could withstand a fault before giving a tripping order.
It means Max resettable time is the time during which a FAULT can appear, before the trip of the Circuit Breaker.

&gt; Max break time is the maximum time for the Circuit breaker and the Micrologic to eliminate the fault.
It means Max break time it is the tripping time max including the global tripping chain of the circuit breaker. "},{"Title":"What is the Tightening Torque on the Compact NSX for Lugs or Bars?","UrlName":"FA358709","LastModifiedDate":"21/03/2026","products":"Compact NSX <630","score":1.023381692319022,"firstpublisheddate":"27/09/2018","answer":"Tightening Torque on the Compact NSX for Lugs or Bars has a separated Tightening Torque for NSX100, NSX160/250 and NSX400/630.

Please find the table below for Tightening Torque on the Compact NSX .


"},{"Title":"Register list for Powerlogics PM2000 series","UrlName":"FA311706","LastModifiedDate":"22/03/2026","products":"PM2000 series","score":1.0169097611796762,"firstpublisheddate":"21/03/2017","answer":"Please find the Register list for PM2000 series as attachment below.

PM2000 Series Register List
 "},{"Title":"Tripping curves - Acti 9 breakers","UrlName":"FA346069","LastModifiedDate":"31/07/2025","products":"Thalassa Floor Standing Enclosures, Acti 9 iC60 RCBO (2P, 3P, 4P), ION Programming, Acti 9 iDPN N Arc","score":0.9838576500701841,"firstpublisheddate":"23/04/2018","answer":"

The following curves show the total fault current breaking time, depending on its amperage. For example: based on the curve on page 3, an iC60 circuit breaker of curve C, 20 A rating, will interrupt a current of 100 A (5 times the rated current In) in:
- 0.45 seconds at least
- 6 seconds at most.

The circuit breakers’ tripping curves consist of two parts:
- tripping of overload protection (thermal tripping device): the higher the current, the
shorter the tripping time
- tripping of short-circuit protection (magnetic tripping device): if the current exceeds the threshold of this protection device, the breaking time is less than 10 milliseconds.

For short-circuit currents exceeding 20 times the rated current, the time-current curves do not give a sufficiently precise representation. The breaking of high short circuit currents is characterized by the current limiting curves, in peak current and in
energy. The total breaking time can be estimated at 5 times the value of the ratio (I2t)/(Î)2. Verification of the discrimination between two circuit breakers

By superimposing the curve of a circuit breaker on that of the circuit breaker installed upstream, one can check whether this combination will be discriminating in cases of overload (discrimination for all current values, up to the magnetic threshold of the upstream circuit breaker). This verification is useful when one of the two circuit breakers has adjustable thresholds; for fixed-threshold devices, this information is provided directly by the discrimination tables.

To check discrimination on short circuits, the energy characteristics of the two devices must be compared.


Verification of the discrimination between two circuit breakers

By superimposing the curve of a circuit breaker on that of the circuit breaker installed upstream, one can check whether this combination will be discriminating in cases of overload (discrimination for all current values, up to the magnetic threshold of the upstream circuit breaker). This verification is useful when one of the two circuit breakers has adjustable thresholds; for fixed-threshold devices, this information is provided directly by the discrimination tables.

To check discrimination on short circuits, the energy characteristics of the two devices must be compared.

"},{"Title":"Motor Mechanism (MCH) Instruction Manual sheets (Compact NSX 100-630)","UrlName":"FA332458","LastModifiedDate":"30/04/2026","products":"Compact NSX <630","score":0.97571377798839,"firstpublisheddate":"23/11/2017","answer":"You could find instruction sheets for Motor Mechanism (MCH) for Compact NSX 100-630 as attachments.

"},{"Title":"What is the default password of Schneider UPS Monitoring Software?","UrlName":"FA380047","LastModifiedDate":"13/09/2025","products":"APC Smart-UPS On-Line","score":0.9714430731420634,"firstpublisheddate":"31/07/2019","answer":"

Schneider UPS Monitoring Software used to monitor the Easy UPS SRV status and configure Shutdown settings, events, connected operating systems. When you install for the first time. you have to fill the default password and change later. (Default User Name is administrator)

\n\n



\n\n

Default password: administrator

\n\n

Refer FAQ : คู่มือการใช้งาน UPS Monitoring software
https://www.se.com/th/th/faqs/FA400013/

"},{"Title":"What does IEC 60947 Standards for low-voltage switchgear and controlgear mean?","UrlName":"FA334006","LastModifiedDate":"15/04/2026","products":"LV429550, LV429551, LV429551","score":0.9537693006357857,"firstpublisheddate":"07/01/2018","answer":"\n\n

\n\n\n\n

\n\n"}]}" translations="{"tabs":{"popularArticles":"Popular Articles","popularVideos":"Popular Videos","generalKnowledge":"General Knowledge","sections":{"popularVideosTitle":"Popular Video FAQs","popularVideosTitleMobile":"Popular Videos","generalKnowledgeTitle":"Learn more through our Generic Knowledge FAQs","generalKnowledgeTitleMobile":"General Knowledge"}},"searchDocument":{"category":"Product category","publishedDate":"Published on","modifiedDate":"Last Modified on"},"moreButton":{"labelMore":"Show more","labelLess":"Show less"},"Redirection":{"message":"The FAQ you are looking for is no longer available, we have redirected you to your Country FAQ home page. Please use the FAQ search bar provided in the home page to search for your query."}}" env="new" s-id="1688">

Popular ArticlesPopular VideosGeneral Knowledge

What is the difference between SD and SDE for Compact NSX?

SD (trip indication) and SDE (fault-trip indication) are the indication contacts for compact NSX, but the function for trip are different. SD (trip indication) indicates that the circuit breaker has...

Published on:7/31/2018Last Modified on:3/21/2026

Product category:Compact NSX <630

What is the meaning of I2t ON (Max resettable time) and I2t OFF (Max break...

Short-time protection - The short-time protection function protects the distribution system against impedant short-circuits. - The short-time tripping delay can be used to ensure discrimination with...

Published on:11/30/2017Last Modified on:10/25/2025

Product category:Micrologic Trip Units, Micrologic Add-on Ground-fault Modules, Micrologic

What is the Tightening Torque on the Compact NSX for Lugs or Bars?

Tightening Torque on the Compact NSX for Lugs or Bars has a separated Tightening Torque for NSX100, NSX160/250 and NSX400/630. Please find the table below for Tightening Torque on the Compact NSX .

Published on:9/27/2018Last Modified on:3/21/2026

Product category:Compact NSX <630

Register list for Powerlogics PM2000 series

Please find the Register list for PM2000 series as attachment below. PM2000 Series Register List

Published on:3/21/2017Last Modified on:3/22/2026

Product category:PM2000 series

Tripping curves - Acti 9 breakers

The following curves show the total fault current breaking time, depending on its amperage. For example: based on the curve on page 3, an iC60 circuit breaker of curve C, 20 A rating, will interrupt...

Published on:4/23/2018Last Modified on:7/31/2025

Product category:Thalassa Floor Standing Enclosures, Acti 9 iC60 RCBO (2P, 3P, 4P), ION...

Motor Mechanism (MCH) Instruction Manual sheets (Compact NSX 100-630)

You could find instruction sheets for Motor Mechanism (MCH) for Compact NSX 100-630 as attachments.

Published on:11/23/2017Last Modified on:4/30/2026

Product category:Compact NSX <630

What is the default password of Schneider UPS Monitoring Software?

Schneider UPS Monitoring Software used to monitor the Easy UPS SRV status and configure Shutdown settings, events, connected operating systems. When you install for the first time. you have to fill...

Published on:7/31/2019Last Modified on:9/13/2025

Product category:APC Smart-UPS On-Line

What does IEC 60947 Standards for low-voltage switchgear and controlgear...

IEC 60947-2 has been around a while. Originally called IEC 947-2, it got its current name way back in 1997. So, you may wonder, why talk about it now? Let’s say a timely reminder is about due....

Published on:1/7/2018Last Modified on:4/15/2026

Product category:LV429550, LV429551, LV429551

Show more

Popular Video FAQsPopular Videos

Video: Why might my APC Back-UPS Product be beeping?

Video: How can a factory reset be performed on an ATV320?

Video: How to open a Vijeo Designer CSV datalogging file in...

Video: Firmware upgrade on a PM800, PM5000, PM200, PM700,...

Video: How to program an ATV320 drive to accept start stop...

Video: SRT UPS reports Battery Charger Event, Event Code 142

Video: How do I read data from a Modbus TCP device using...

Video: Data Center Expert | Desktop Client Requirements,...

Video: How to add a Data Model to Easergy Studio (MiCOM S1...

Show more

Learn more through our Generic Knowledge FAQsGeneral Knowledge

What is the selection criterion of Circuit Breakers for the Capacitor bank...

The selection should be done after derating the Circuit Breaker taking into consideration voltage variation and capacitors tolerances that could increase nominal current up to 1.5In. The Derating...

Published on:4/23/2010Last Modified on:2/28/2026

•

  Support Center

  Explore other support tools to quickly find answers.

  Go to Support Center
•

  Download Center

  Search and download offer documentation, support information, certificates, CAD and software.

  Go to Download Center
