Wiring diagram for NSX 100A to 630A in 3P 2D version

NSX 100A to 630A in 3P 2D version is 3-pole frame (3P) with detection on all 2 poles (3D). It mean that it can be wired Line and Neutral in this breaker like breaker 2 pole.

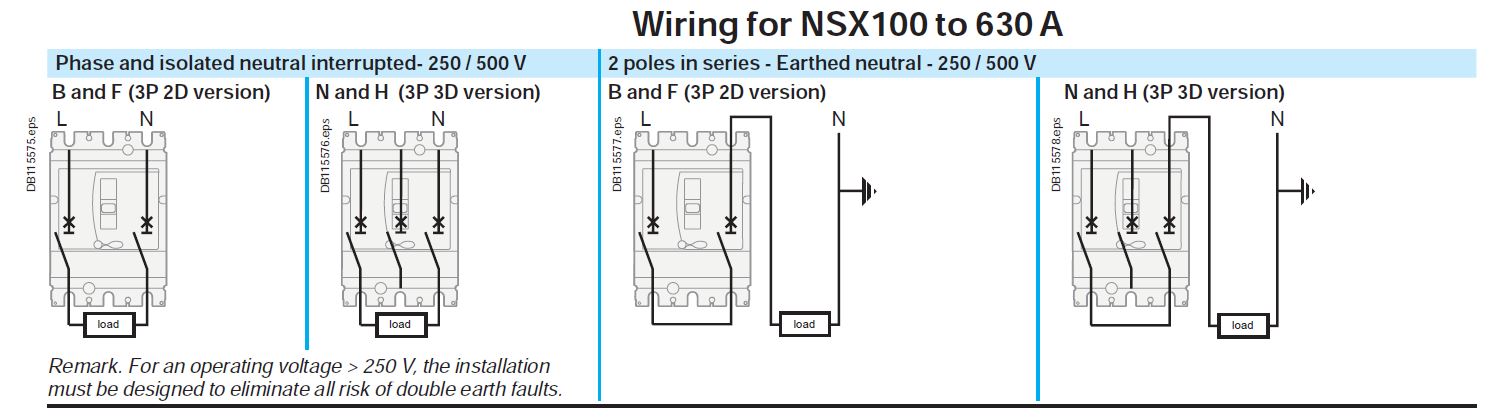

Please find the wiring diagram below.

NSX 100A
