How can I setup an XBTF Magelis HMI to communicate to a M340 serial port via RS232?
Issue:
XBTF communication to a M340 serial port via RS232
Product Line:
XBTF, M340
Resolution:

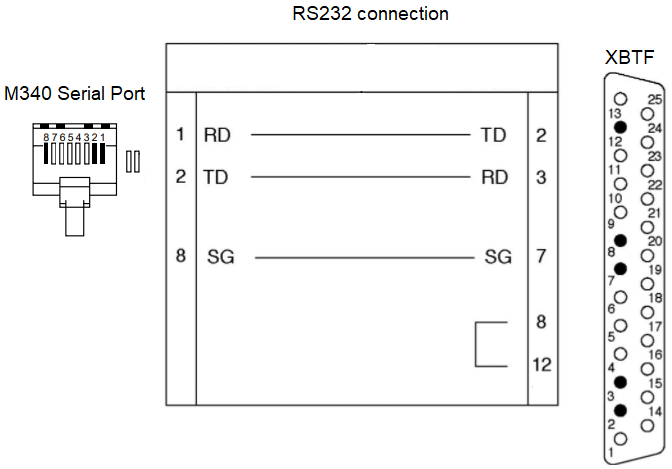

For RS232 communication between the Magelis XBTF and M340 PLC, the cable pinout should be as follow:

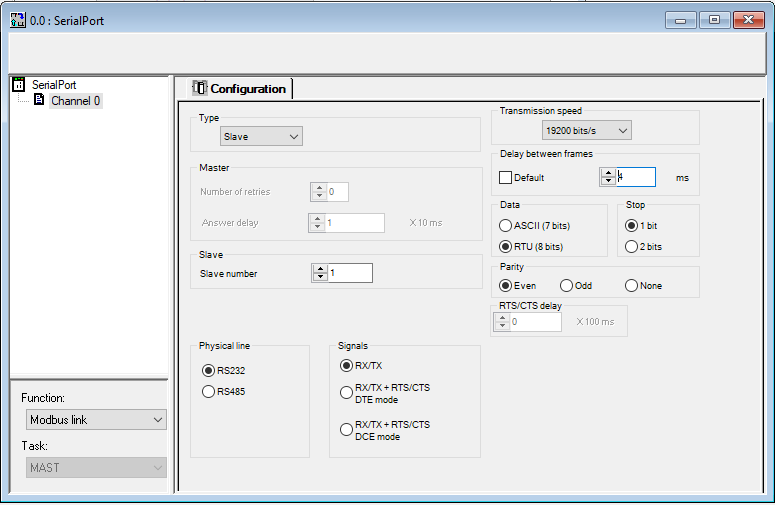

The M340 serial port must be configured for RS232 as shown below
The XBTF configuration should match the serial port setup of the M340.
XBTF communication to a M340 serial port via RS232
Product Line:
XBTF, M340
Resolution:
For RS232 communication between the Magelis XBTF and M340 PLC, the cable pinout should be as follow:
The M340 serial port must be configured for RS232 as shown below
The XBTF configuration should match the serial port setup of the M340.
