Actassi VDC

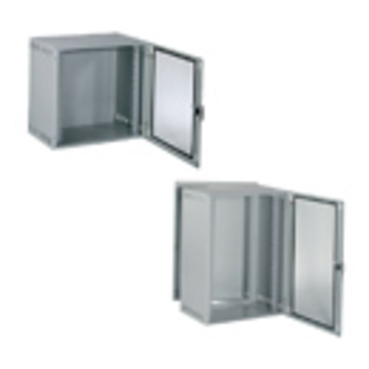

Versions available

• Monobloc ; enclosure 1 body, 5 heights (6U to 8U), width 600mm and depth 400mm.
• Enclosure 2 bodies, 5 heights (6U to 8U), width 600mm and depth 450 and 550mm.

Possibility of configurating the composition of cladding, mounting accessories and colours, on demand. ;

Technical description

• Steel enclosures folded and welded.
• Enclosure 1 body :
  - Monobloc body equipped with top and bottom cable entries flushed with the wall.
  - Glazed or plain door ; with 120º opening and locking by key nº333.
  - Two 19" uprights, depth-adjustable.
• Enclosure 2 bodies:
  - Rear of 130mm depth to be fixed on the ; wall, equipped with top and bottom cable entries that are flush with the wall.
  - Intermediate body enables total accessibility to the back of your installation.
  - Front door operated by handle key lock.
  - Two 19" uprights, depth-adjustable.
  - Glazed or plain door ; with 120º opening and locking by key nº333.

• Static load: 3kg/U, maximum load 50kg/enclosure.
• Protection level IP20 according IEC 60529.
• Resistance to external mechanical impact IK-08 according IEC 62262.
• Certifications : In compliance with the directive RoHS, the frame 19" according to standard IEC 60297-1-4.
• Paint : Textured epoxi-polyester powder paint finish in RAL7035.

Enclosures inspired by your expectations !

• Wide dimensional range : 5 heights (6U to 18U), width 600mm, 3 depths (400, 450 or 550mm)
• The choice : 2 types of enclosures to be defined according to your ; installation needs.
• Adaptable : this offer adapts itself to all your configurations, regulation of uprights 19" in depth, reversibility of the door and ventilation of your installation.
• Easy to cable and rigid : an offer equipped with top and bottom cable entries flushed with the wall and offering a permissible load of 50Kg on uprights 19".

• Local networks, telecommunications, broadcasting, detection and security for building installations, service industry and infrastructures.
