Issue:
Product Design Features
Product Line:
QO and Homeline load center accessories
Resolution:

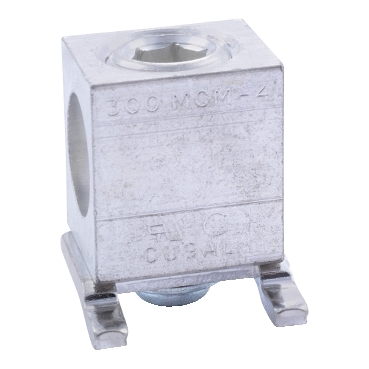

Some of the kits are "fork" type mounted, which means that the lug has two prongs that are inserted into two neutral bar holes, and are held down by two wire binding screws. Two of them are "straddle" mounted, which means that the lug mounts on the top of and sit directly onto the neutral bar or equipment ground bar. Here are the mounting types:
LK70AN - fork type
LK100AN - stradle type
LK125AN - fork type
LK150AN - straddle type
LK225AN - fork type
Product Design Features
Product Line:
QO and Homeline load center accessories
Resolution:
Some of the kits are "fork" type mounted, which means that the lug has two prongs that are inserted into two neutral bar holes, and are held down by two wire binding screws. Two of them are "straddle" mounted, which means that the lug mounts on the top of and sit directly onto the neutral bar or equipment ground bar. Here are the mounting types:
LK70AN - fork type
LK100AN - stradle type
LK125AN - fork type
LK150AN - straddle type
LK225AN - fork type
Released for: Schneider Electric USA
