What Combination Service Entrance Devices come standard with a factory installed Main Breaker(Service Disconnect)?

How can we help you today?

Issue:
Product Design feature

Product Line:
Combination Service Entrance Devices (CSED)

Environment:
Service Disconnect or Main Breaker

Cause:
Application

Resolution:
CSED = Combination Service Entrance Device
MB(SD) = Main Breaker(Service Disconnect)

**** ALWAYS PAY ATTENTION TO ANY FOOTNOTES ASSOCIATE WITH EACH CATALOG NUMBER, ON THE DIGEST PAGE, BEFORE OBTAINING ANY DEVICE****

To determine what CSED come standard from the factory with a MB(SD) installed and what type of MB(SD), SEE THE CURRENT ON-LINE CSED DISGEST PAGES OR EACH CATALOG NUMBER CAD DRAWING. SEE BELOW LINKS
NOTES:
1) The column headings of the digest tables will point out the CSED that contain a factory installed MB(SD) and the column information will show what type is used. SEE THE BELOW VISUAL.
2) At the beginning of the CSED digest pages is a Catalog Logic that will also show if the MB(SD) is factory or field installed.

Current On-Line Digest = Current On-Line Digest
On-Line CAD Drawing system = CAD Drawing

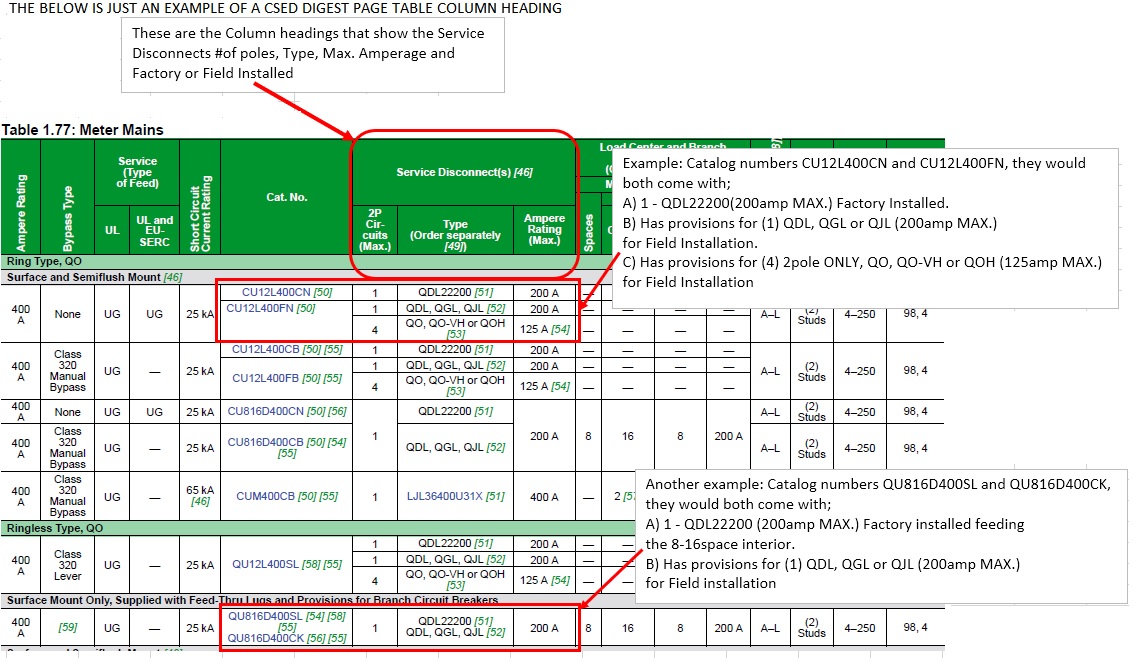

BELOW ARE A COUPLE VISUAL EXAMPLES OF THE CSED DIGEST PAGES SHOWING MB(SD) TYPE, MAX. AMPERAGE AND IF FACTORY INSTALLED OR NOT.
