Issue:

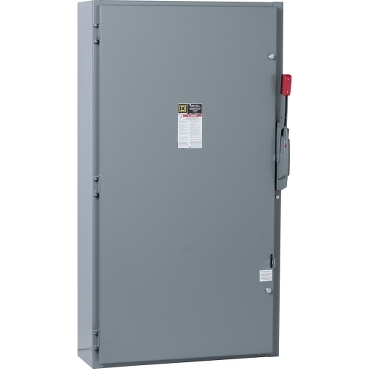

Repair parts list for H225, series E2 and E4

Product Line:
Safety Switches

Resolution:
The parts listed here are the only field replaceable parts.
Complete interior - HN225E2 (includes line & load base assemblies, arc suppressor assembly, box insulator, line & load phase insulators, and mounting hardware)
Line base assembly - 4055218850 (2 required; arc suppressor assembly not included)
Load base assembly - 4055219050SEL (2 required)
Arc suppressor assembly - 4051204501 (2 required)
Lug assembly - 4025113650 (1 required per base assembly)
Line base phase insulator - 4051201401 (1 required)
Load base phase insulator - 4055219101 (1 required)
Line and load base mounting screws - 4020600901 (2 required per base assembly)
Cross arm insulators - Consists of 4 parts: (2) 4055217701 (left and right pieces), (1) 4055217801 (middle piece) and (1) 4055215701 (dust shield that ties them together behind the cross arm)
Handle assembly - 4051217251
Handle knob kit (black & red knob at end of handle) - Series E2 is 4401142750, series E4 is 4028343550
Door thumb screw and retainer - 4405043401 and 4405049001
