Issue:
Repair parts
Product Line:

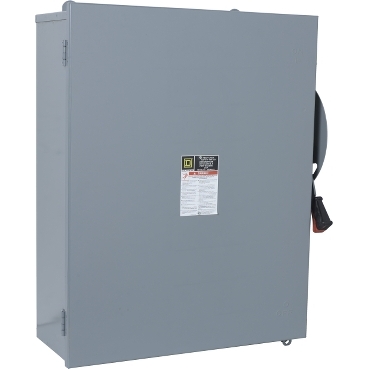

Heavy Duty Safety Switch
Resolution:
The parts listed here are the only field replaceable parts that are still available.
Line base assembly - 4056028250 (arc suppressor is included) (4 required)
Lug assembly - 4025116251 (8 required)
Line base phase insulator - 4052025301 (3 required)
Cross bar insulator - 4051139001
Dust shield - 4051139101
Line and load base mounting screws - 4020506501 (2 required per base)
Handle knob kit - 4028344050K
Repair parts
Product Line:
Heavy Duty Safety Switch
Resolution:
The parts listed here are the only field replaceable parts that are still available.
Line base assembly - 4056028250 (arc suppressor is included) (4 required)
Lug assembly - 4025116251 (8 required)
Line base phase insulator - 4052025301 (3 required)
Cross bar insulator - 4051139001
Dust shield - 4051139101
Line and load base mounting screws - 4020506501 (2 required per base)
Handle knob kit - 4028344050K
